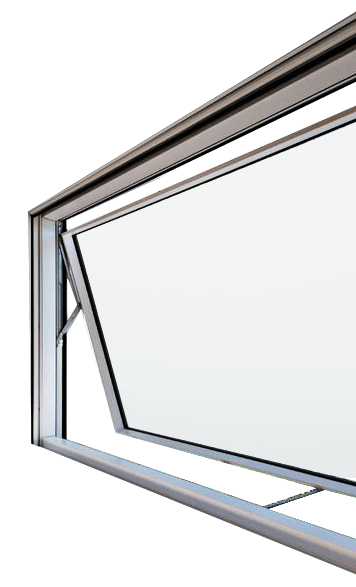

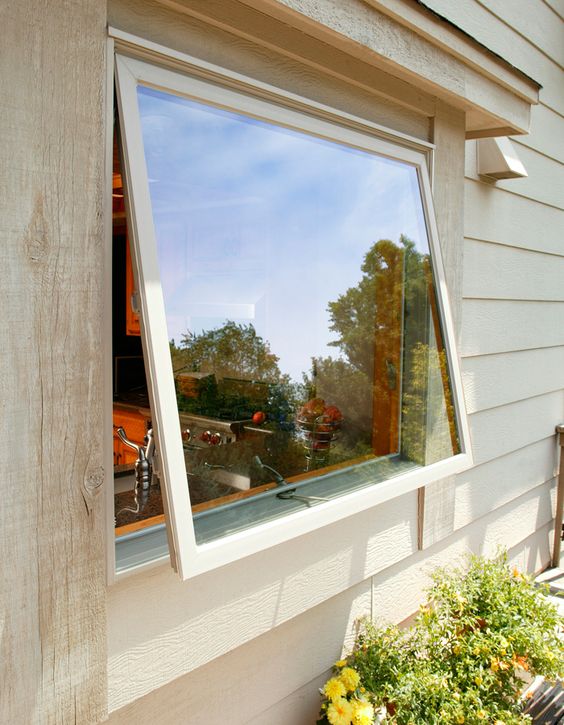

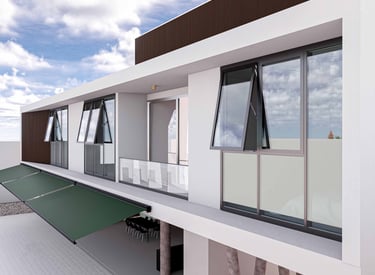

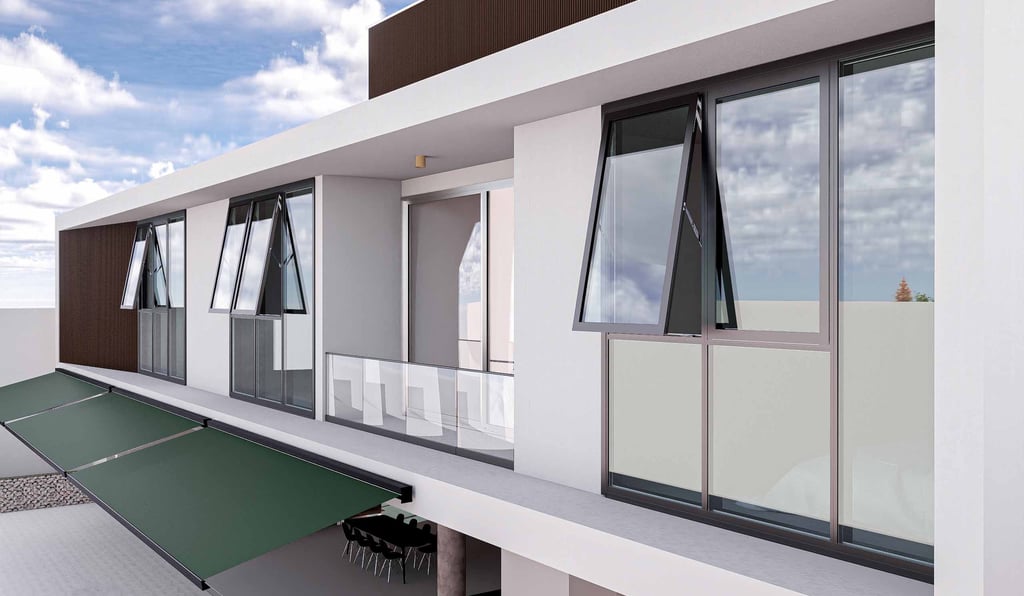

AWNING
WINDOW SYSTEM

Maximum Size Of Sash Width ≤1200mm / Height ≤2100mm

Thickness Of Main Profile 1.8mm

Glass Clamping Thicknesss 58mm

Load Bearing of Sash ＜100kg

Water Penetration 750Pa

Air Leakage

Positive pressure Up to Level 8 / Negative pressure Up to Level 8

Structural Test Pressure ＜5600Pa

U-Factor ≥0.25 Btu/(hr x ft² x ºF)

Specifications

Thermally broken aluminum window system with double glazing and multi-layer sealing, providing excellent thermal insulation, airtightness, water resistance, and durability for residential and commercial use.

Sealing

Safety

Diversification

Special Sealing Device:A special sealing device is designed for sealing dead corners in the corners.

Frame Design

When the windows are closed, the sash frame is seamlessly integrated, concise and neat, and cleaning is more convenient.

A hardware mechanism specifically designed for the awning and casement window system, with pre-designed positioning and tooling, which can quickly assemble hardware and improve work efficiency.

Hardware

Anti-falling design:

The hinge and fixed frame connection, along with the opening sash, features a unique anti-falling mechanism that significantly reduces the risk of the sash falling, enhancing safety for outward opening awning windows.

Limit design:

Full or half locking is optional to realize small angle opening micro-ventilation and reduce the risk of falling objects.

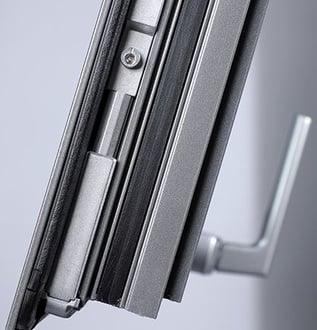

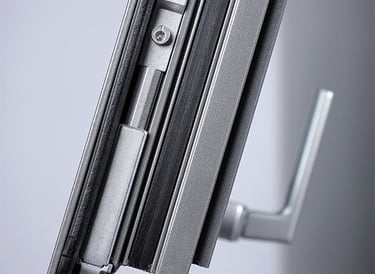

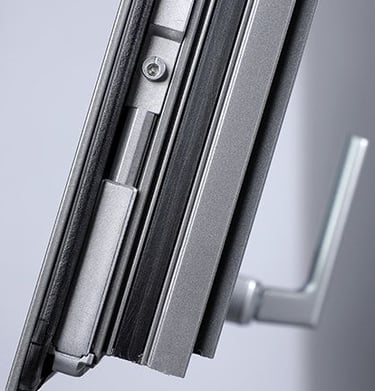

Hidden locking point and locking bracket:

Aligned smoothly with the profile for unobstructed passage. The locking mechanism ensures the door's safety when closed.

Our awning window system offers a flyscreen option engineered to ensure effective insect protection while maintaining optimal airflow. The aluminium profiles are precision-designed for durability, weather performance, and long-term stability. Multiple frame configurations are available to meet diverse architectural and project specifications.

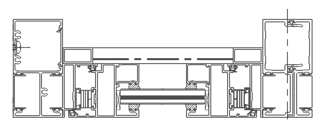

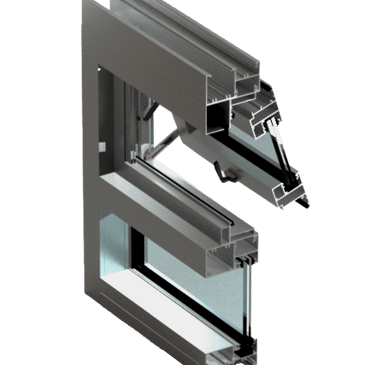

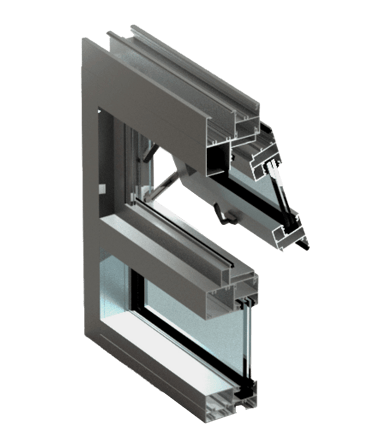

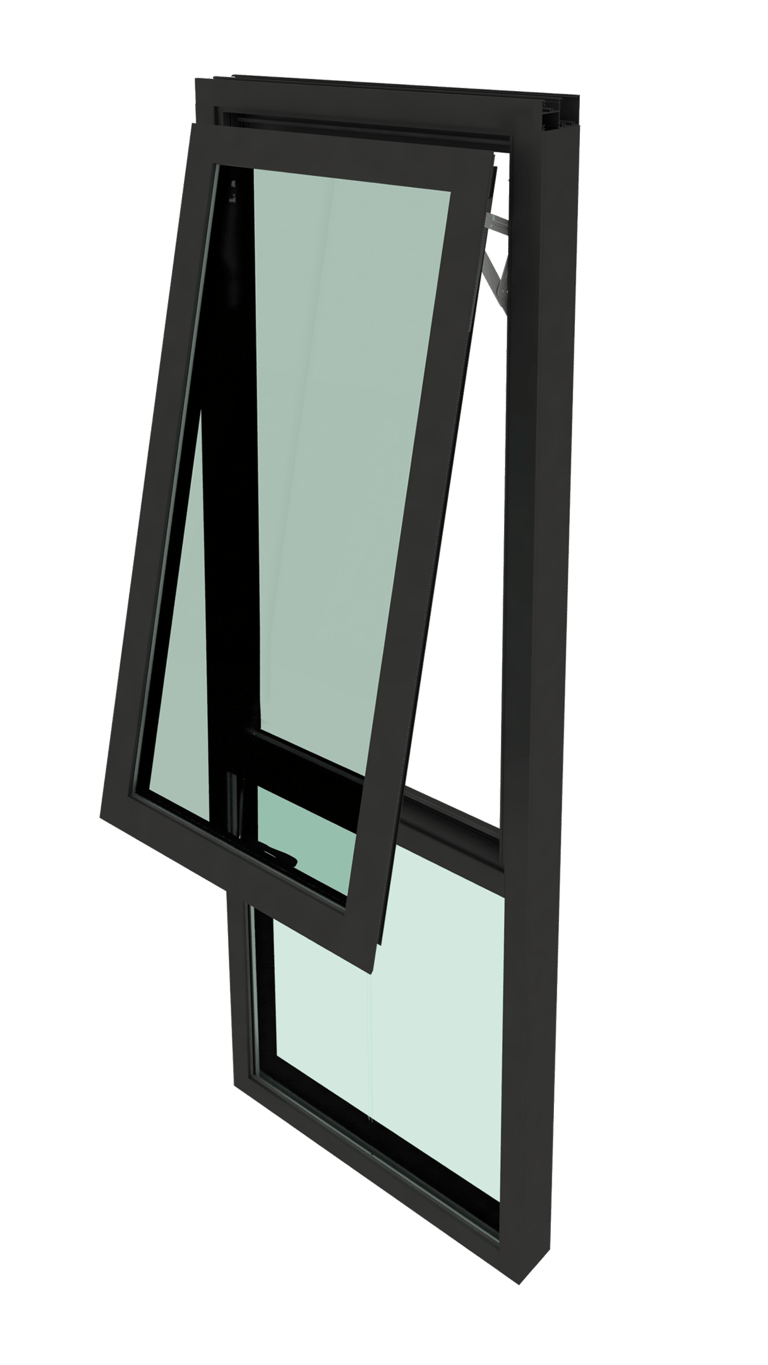

AWS100

Frame Options

Frame Colors

Aluminum frames come in various colors and finishes, seamlessly matching any design. Powder-coated and anodized surfaces ensure lasting aesthetics and low

Double glazing can withstand greater wind pressure in high-rise apartment buildings, ensuring safety and stability while effectively reducing external noise for a quiet living environment.

Glazing Options

Triple glazing is widely used in buildings located in cold or noisy environments. Compared to double glazing, it offers better insulation, energy efficiency, and soundproofing. It helps reduce heating and cooling costs and creates a quieter, more comfortable indoor space.

Double Glazing

Triple Glazing

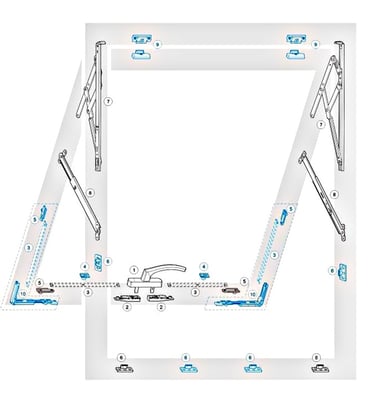

Hardware System

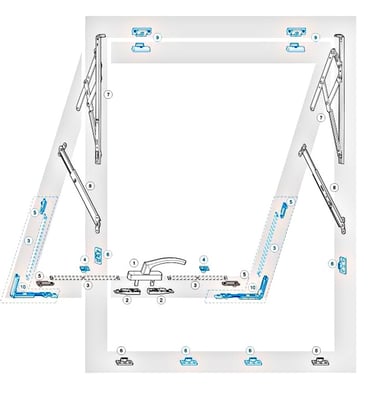

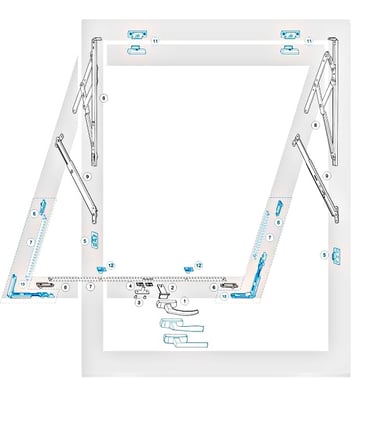

Awning Window hardware system 01

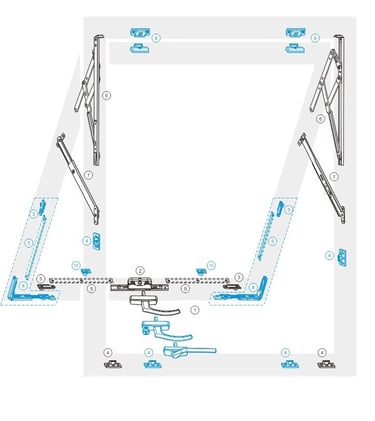

Awning window hardware system 02

Awning window hardware system 03

Multi-point Lock

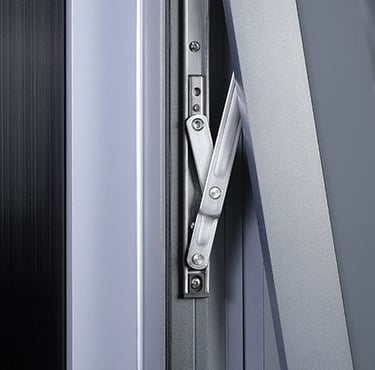

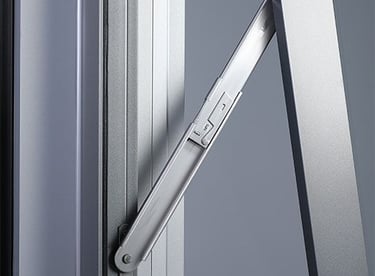

Friction Hinge

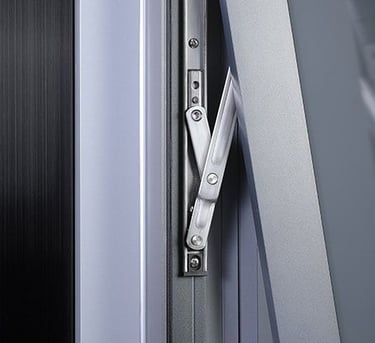

Limiting Stay

Hardware Detail

Multi-point locks can be specified to enhance water, air, wind pressure resistance and safety performance for outswing windows. Parts are precision-made with efficient and smooth operation.

Made from high-quality 304 stainless steel, both the four-bar linkage and six-bar linkage series meet requirements for load-bearing door sashes. Specifications are available from 12” to 28” to fit different window types. The unique sliding block controls friction force and allows easy opening for awning windows.

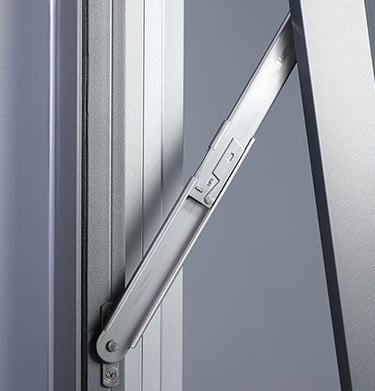

Sizes come in 8” and 20” to suit various profiles with automatic limiting stays after opening. High-quality 304 stainless steel is used to prevent aluminium windows from suddenly closing in strong wind.

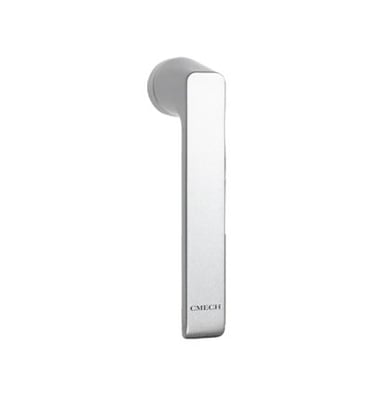

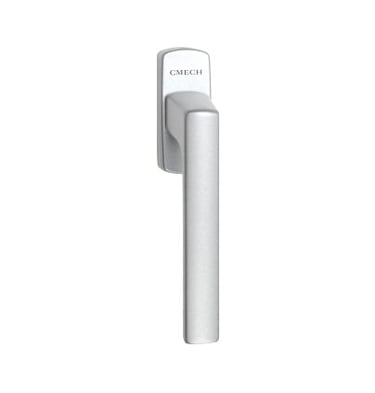

CMECH Milan Handle

Handle system

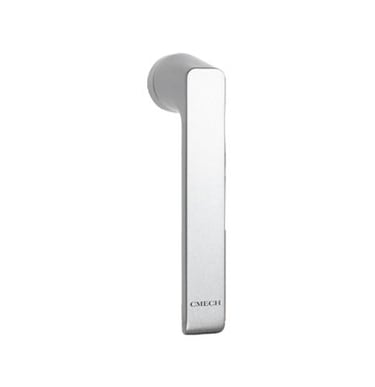

CMECH Milan Turn Handle

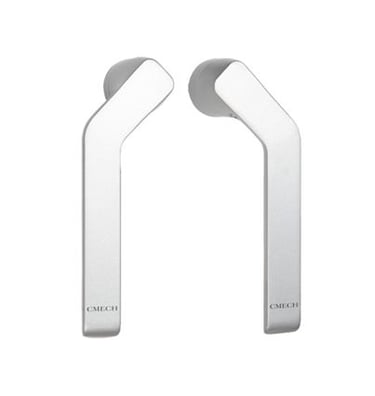

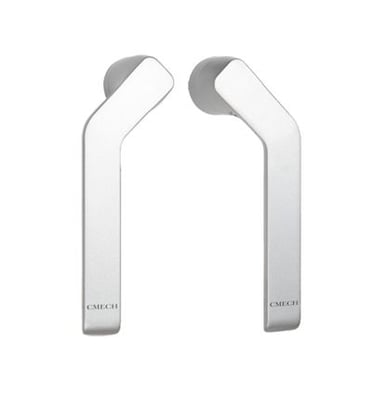

CMECH Koln Handle

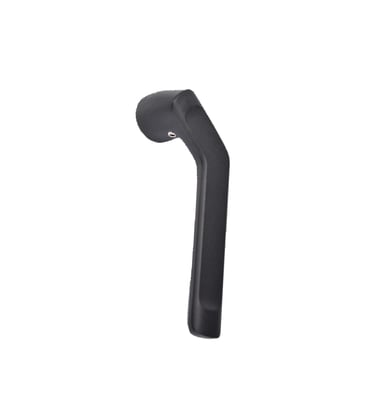

HOPO Handle

CMECH Berlin Handle

Screening Options

We offer a wide range of insect screen solutions including vertical roller, horizontal sliding, pleated, and framed types—each tailored to suit different spaces and usage needs. Whether for bedroom or kitchen windows, or large balcony and patio doorways, our screens provide both functionality and aesthetic appeal.

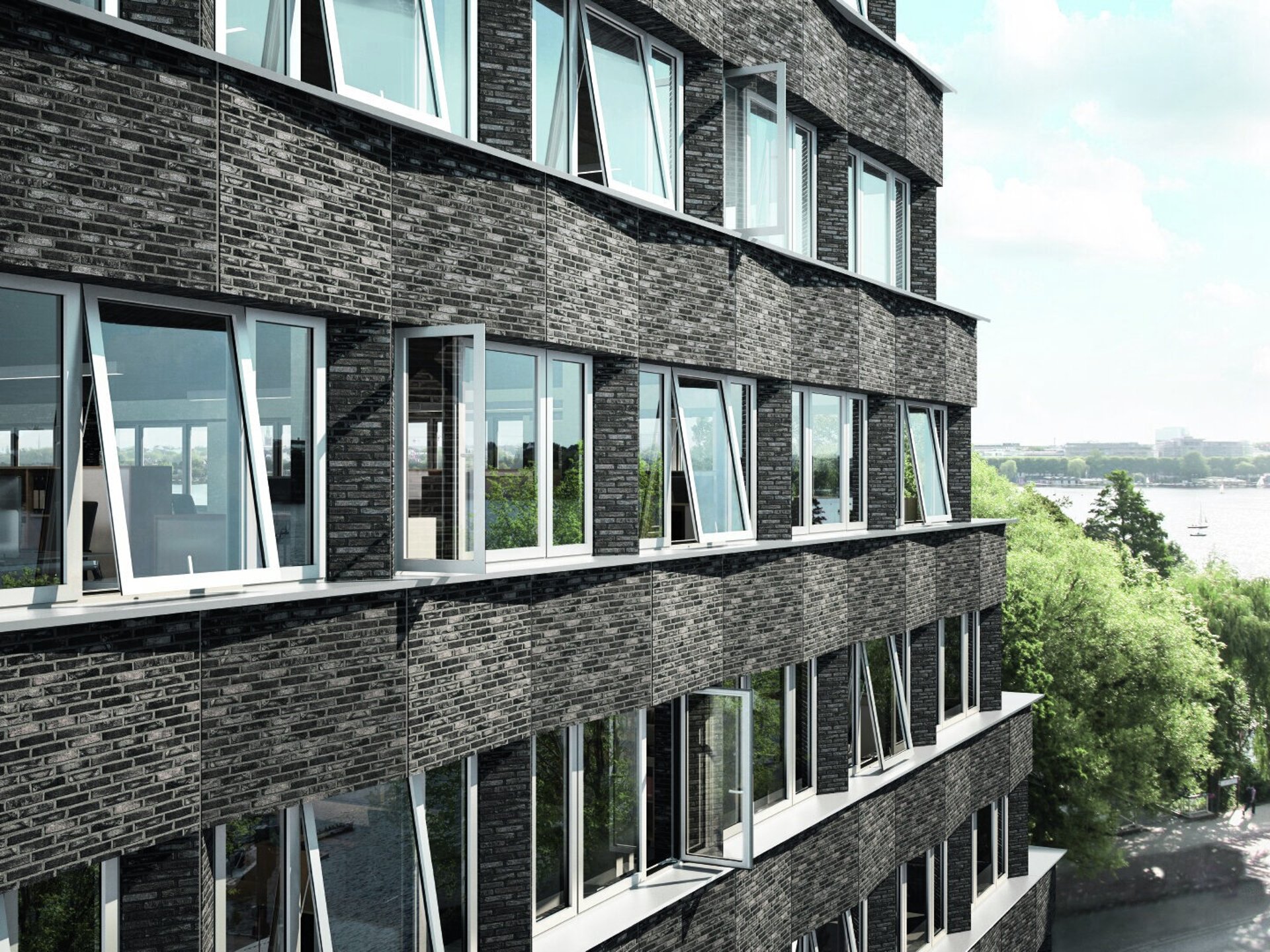

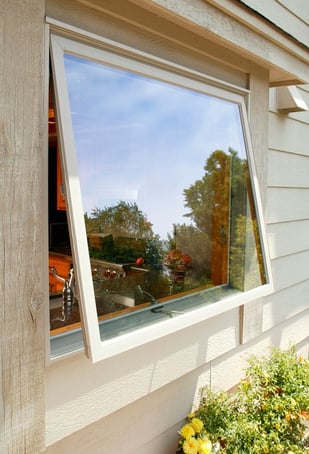

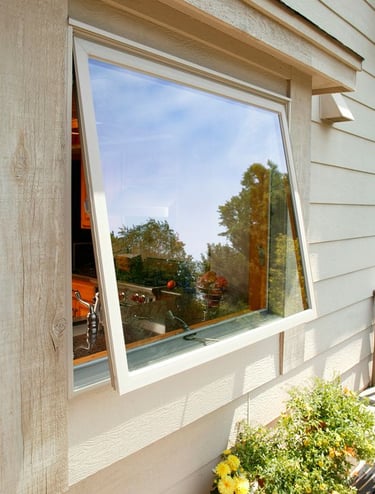

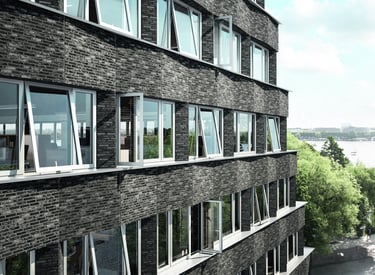

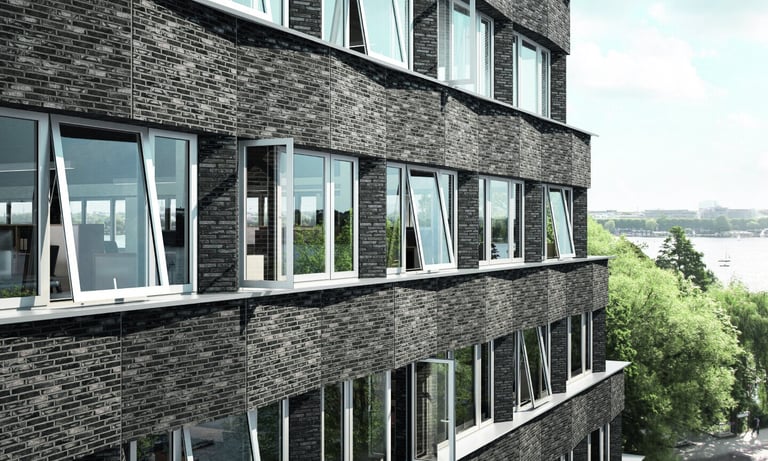

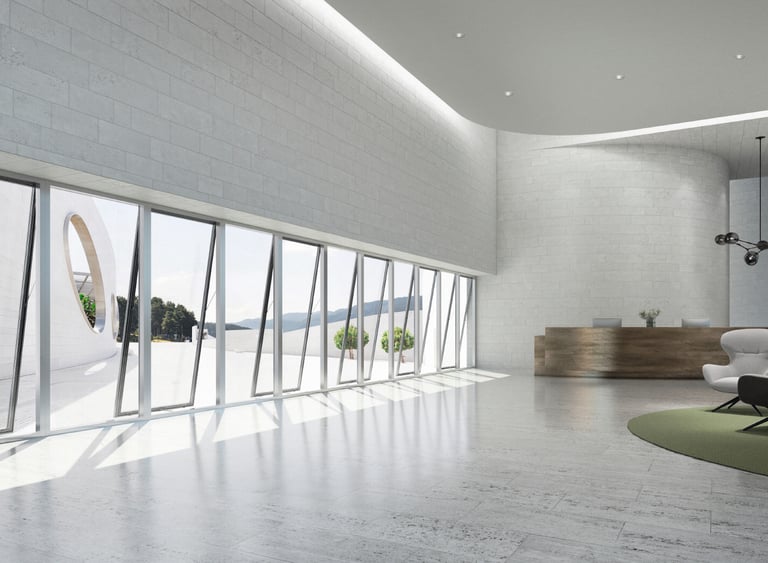

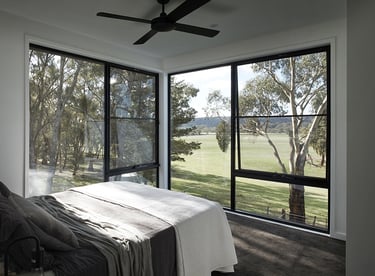

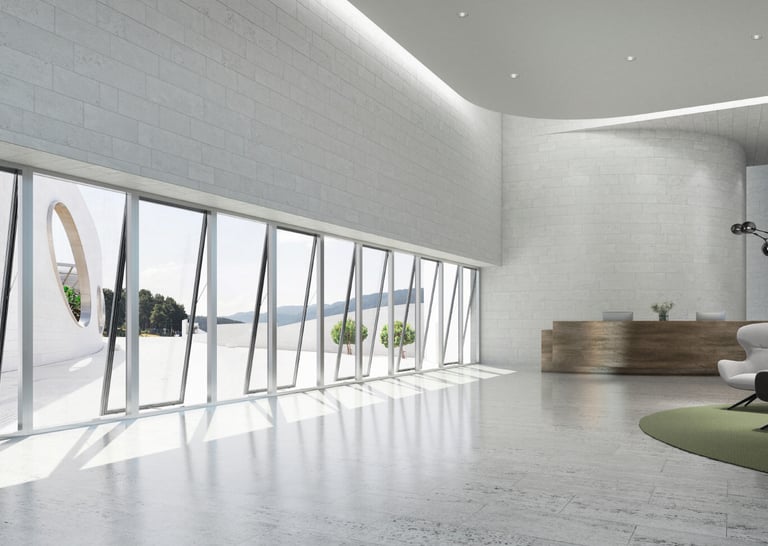

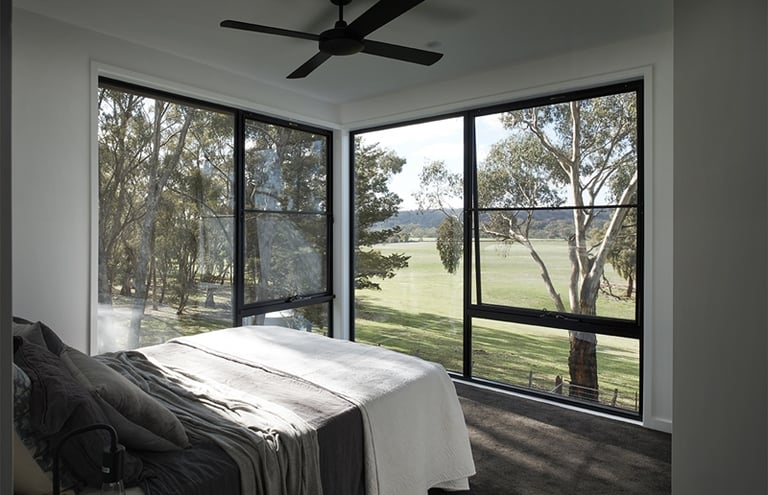

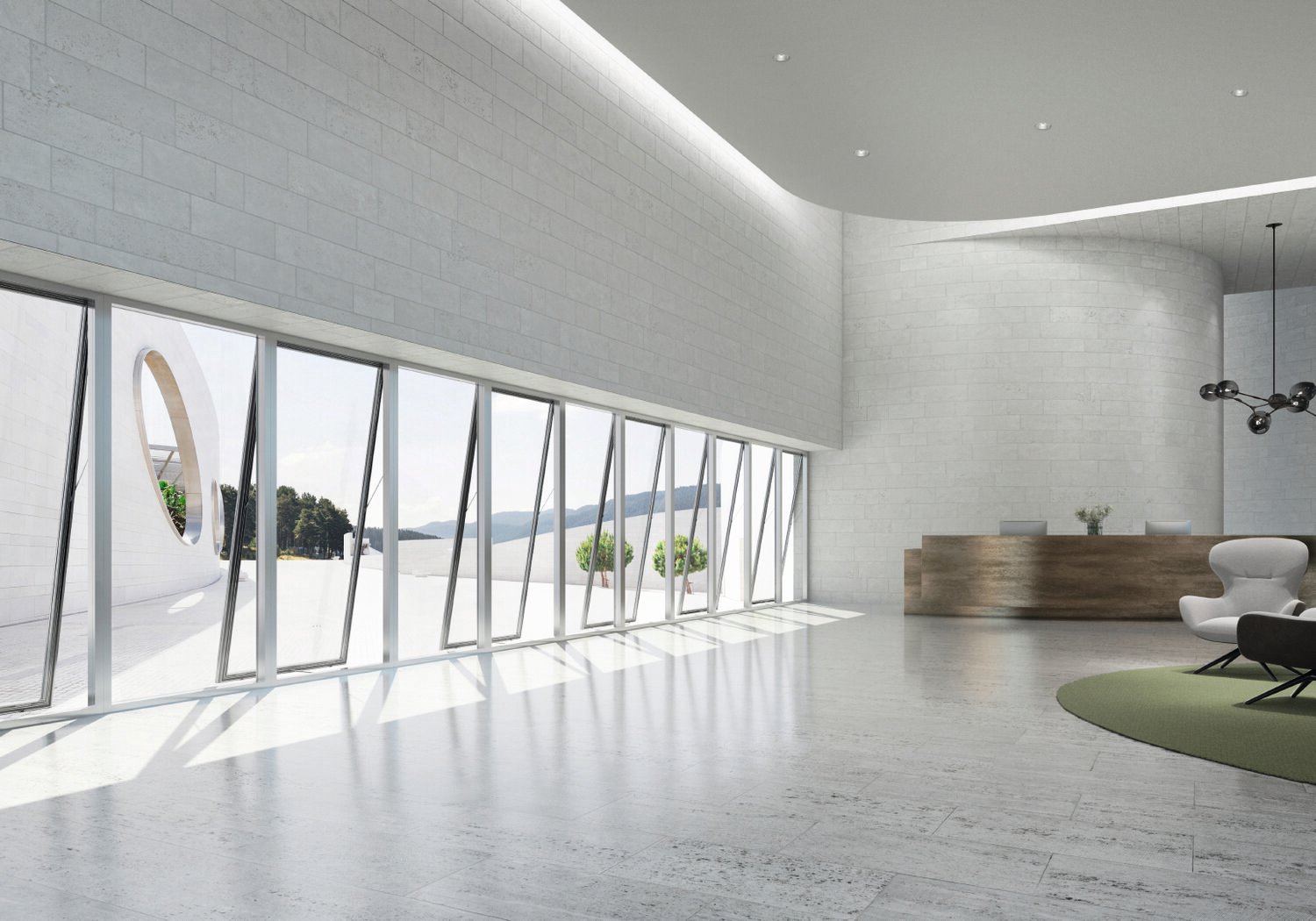

Case
