Features

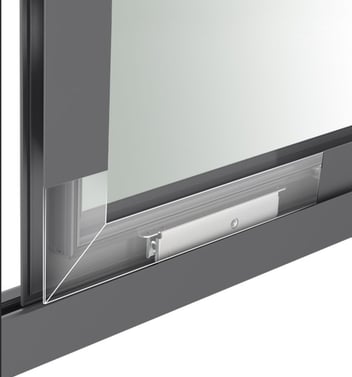

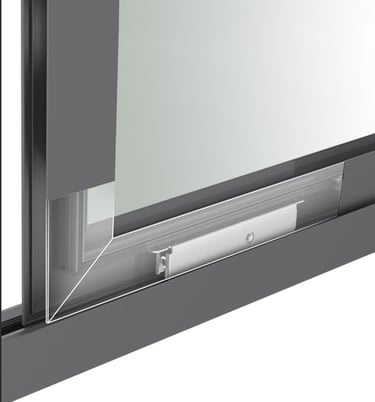

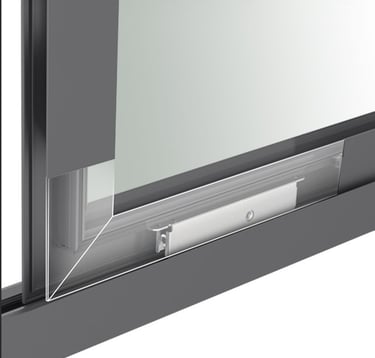

GBA has designed a sealing device for the upper and lower dead corners of conventional edging, enhancing sliding window sealing capability and overall product performance.

01 Sealing

Systematic Drainage Design: The lower frame's stepped drainage structure and outdoor independent track ensure smooth drainage for doors and windows, improving processing efficiency and optimizing costs.

02 Drainage

Special Sliding Components: Smooth, durable stainless steel rails facilitate easy operation, while the sliding window's special pulley kit enhances lifespan and wear resistance, ensuring a vibration-free sliding experience.

03 Comfort

04 Safety

Multipoint Locking System: Increases locking strength and safety performance.

05 Operation

Anti-Misoperation Device: Prevents users from misoperating the handle, reducing the risk of damage and enhancing durability.

06 Upgrading

Strong Compatibility: Compatible with frameless SsW sliding windows and offers options for stainless steel high-permeability screens to effectively block mosquitoes.

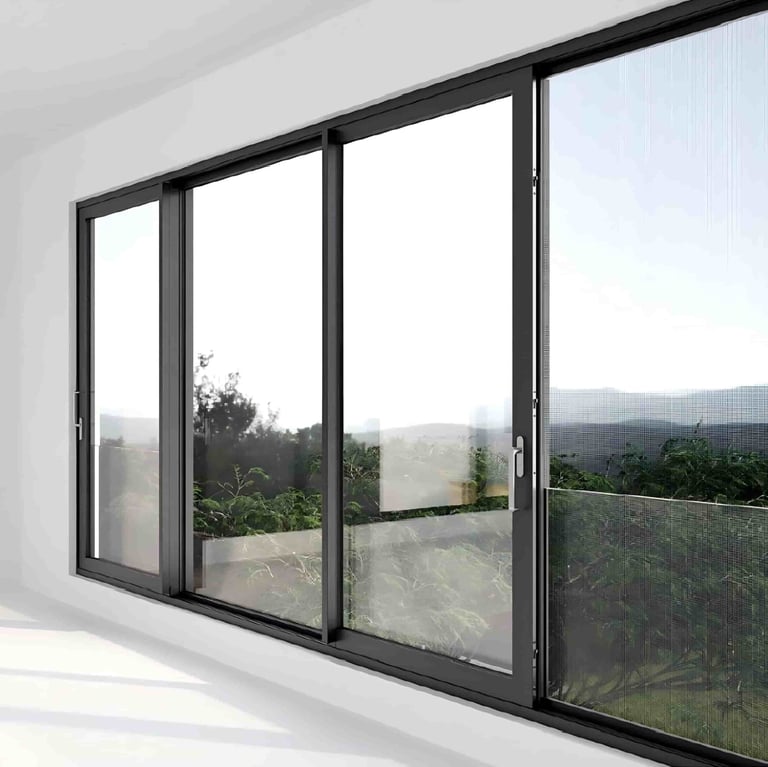

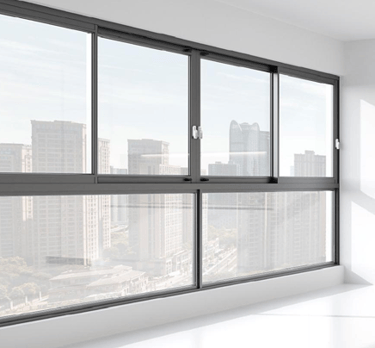

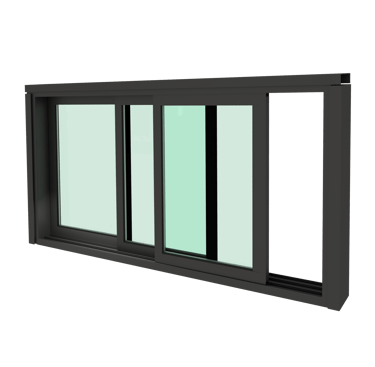

Configurations

Available in a range of configurations, custom made and installed to your specification

TTW01

TTW02

TTW03

TTW04

TTW05

TTW06

Product Parameters

Opening Sash Size & Weight

Width ≤2000mm

Height ≤2000mm

Weight ≤160Kg

Glass thickness ≤31mm

Acoustic performance GB/T 8485

RW up to 35dB

Waterproof performance GB/T 7106

Normal Lower Frame Up to Level 3

Air permeability performance GB/T 7106

Positive pressure Up to Level 8

Negative pressure Up to Level 8

Wind load resistance performance GB/T 7106

Standard Edging Up to 2600Pa

Reinforced Edging Up to 4000Pa

Opening Sash Size & Weight

Width ≤1200mm

Height ≤2100mm

Weight ≤100Kg

Glass thickness ≤58mm

Acoustic performance GB/T 8485

RW up to 37dB

Waterproof performance GB/T 7106

Normal Lower Frame Up to Level 3

U value rating GB/T 8484

UW up to 2.1W/㎡k

Air permeability performance GB/T 7106

Positive pressure Up to Level 8

Negative pressure Up to Level 8

Wind load resistance performance GB/T 7106

Standard Edging Up to 1500Pa

Reinforced Edging Up to 5000Pa

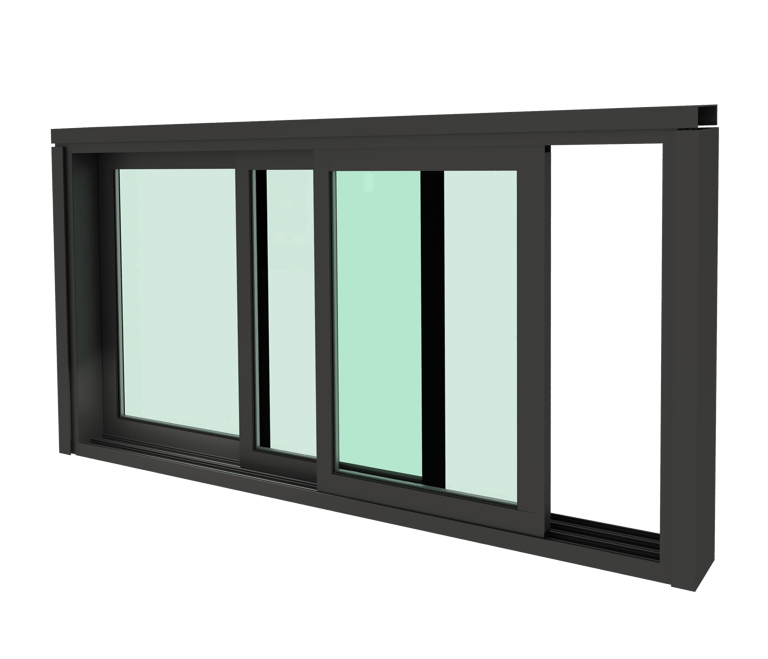

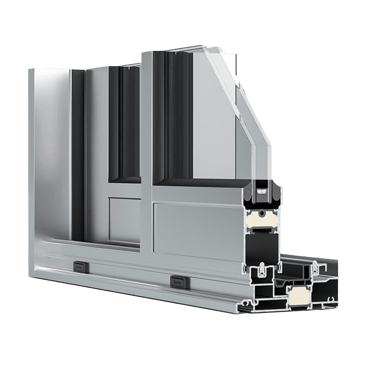

SW113P.N

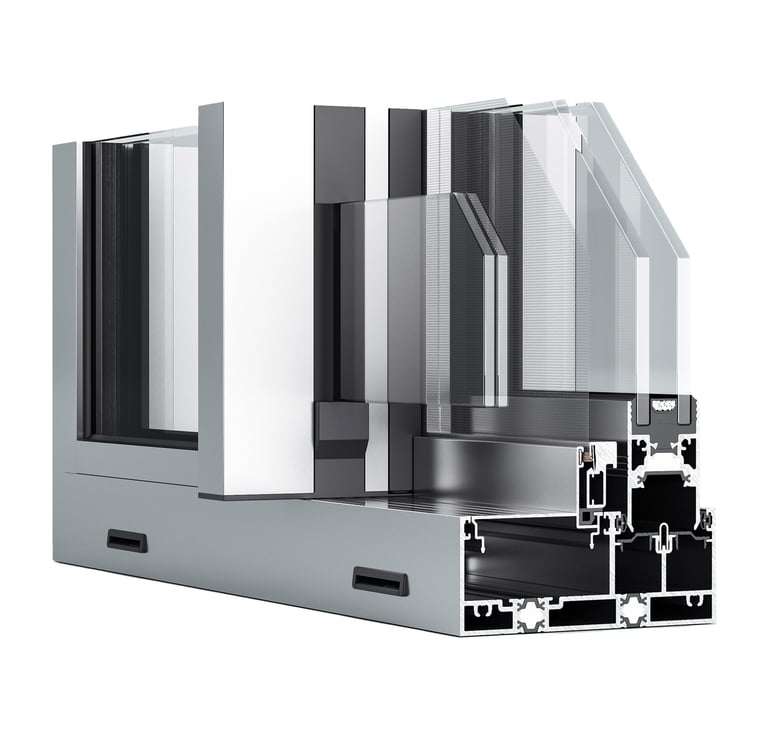

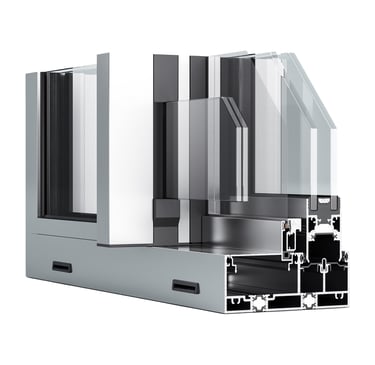

SW113P

Glass Options

Energy Efficiency

The type of glass in windows and doors significantly impacts energy efficiency and comfort. Selecting the right glass can reduce heating and cooling costs while enhancing livability.

Safety & Security

Choosing the right glass reduces injury risks, resists breakage, and deters intruders, enhancing protection for your family.

Acoustic Glass

Selecting the right acoustic glass effectively reduces noise disturbance and enhances living comfort.

Privacy Glass

Choosing the right privacy glass enhances personal space and prevents unwanted visibility, ensuring comfort and security.

Hardware System

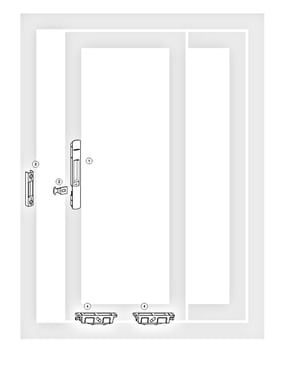

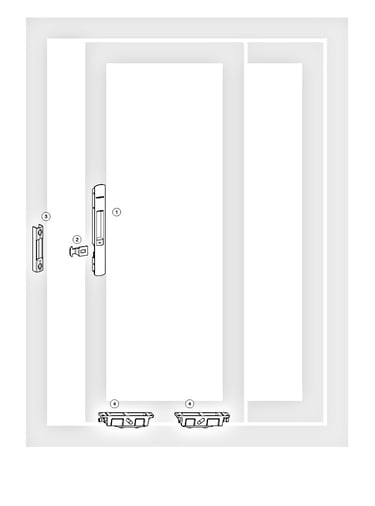

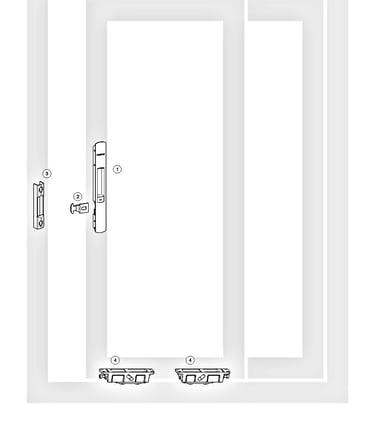

Sliding window hardware system 01

Sliding Window Roller

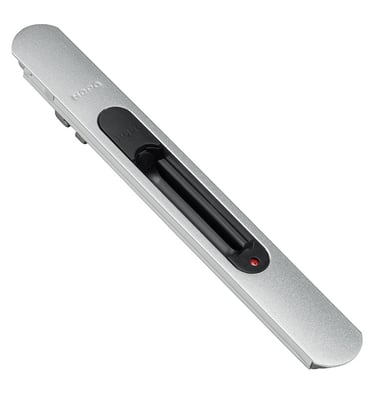

Bump Lock Recessed Pull Handle

Hardware Detail

High-quality materials and precision manufacturing create a smooth, quiet and worry-free sliding system.

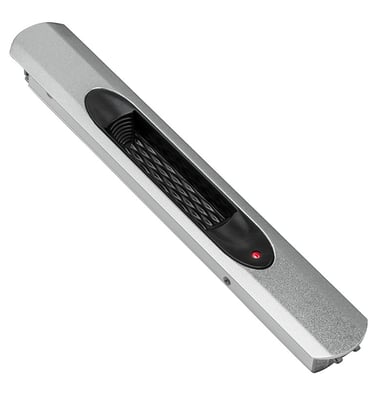

Trouble-free installation and locking with a simple touch, the Recessed Pull Handle can be pre-installed with an anti-theft function for multiple door types.

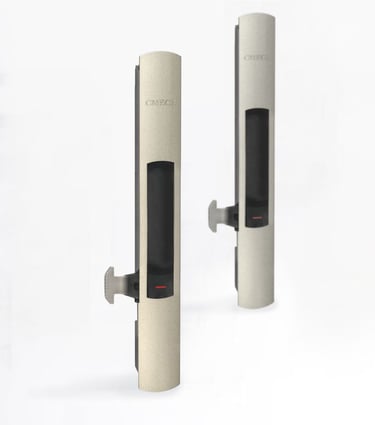

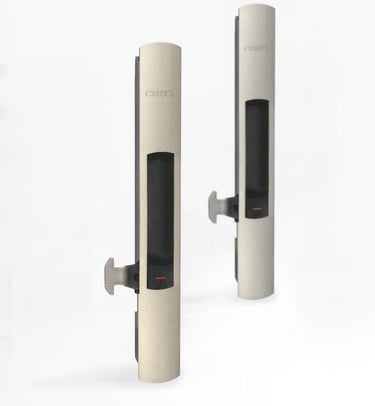

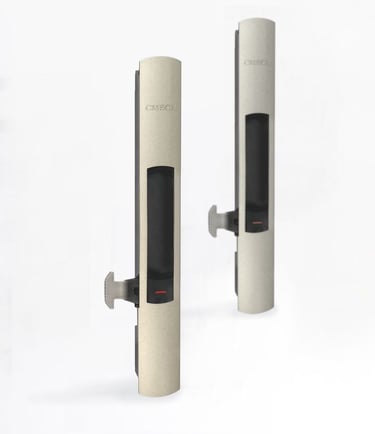

CMECH Single-Point Handle

Handle system

HOPO

Handle

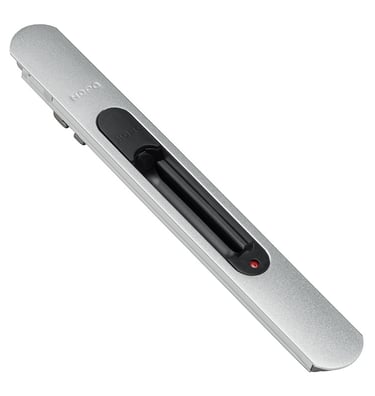

HOPO Handle

Tuff mesh

HD Tuff Mesh

High-Transparency Mesh

Made of metal material, strong anti-theft performance, and high protection level.However, it has relatively low light transmittance, suitable for commercial and residential use.

Made of metal material, strong anti-theft performance, and higher protection level. It improves light transmittance by 30% compared to standard tuff mesh, suitable for projects that balance design and safety.

Made of PET metal material, with average anti-theft and protection capabilities. It offers excellent light transmittance and can be used for retractable screens, suitable for design-oriented projects.

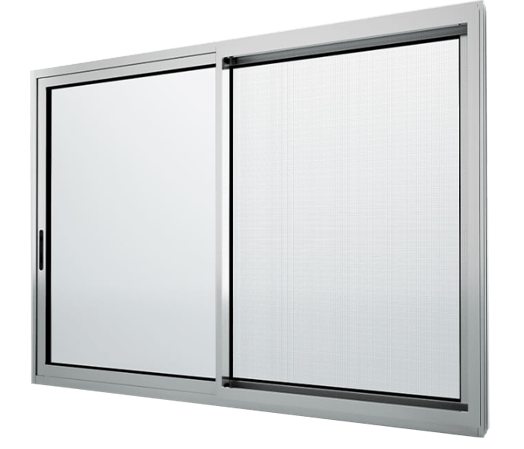

Screening Options

Mesh options

Frame options

Can be stretched and paired with high-transparency mesh to provide an unobstructed view.

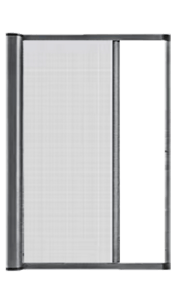

Retractable

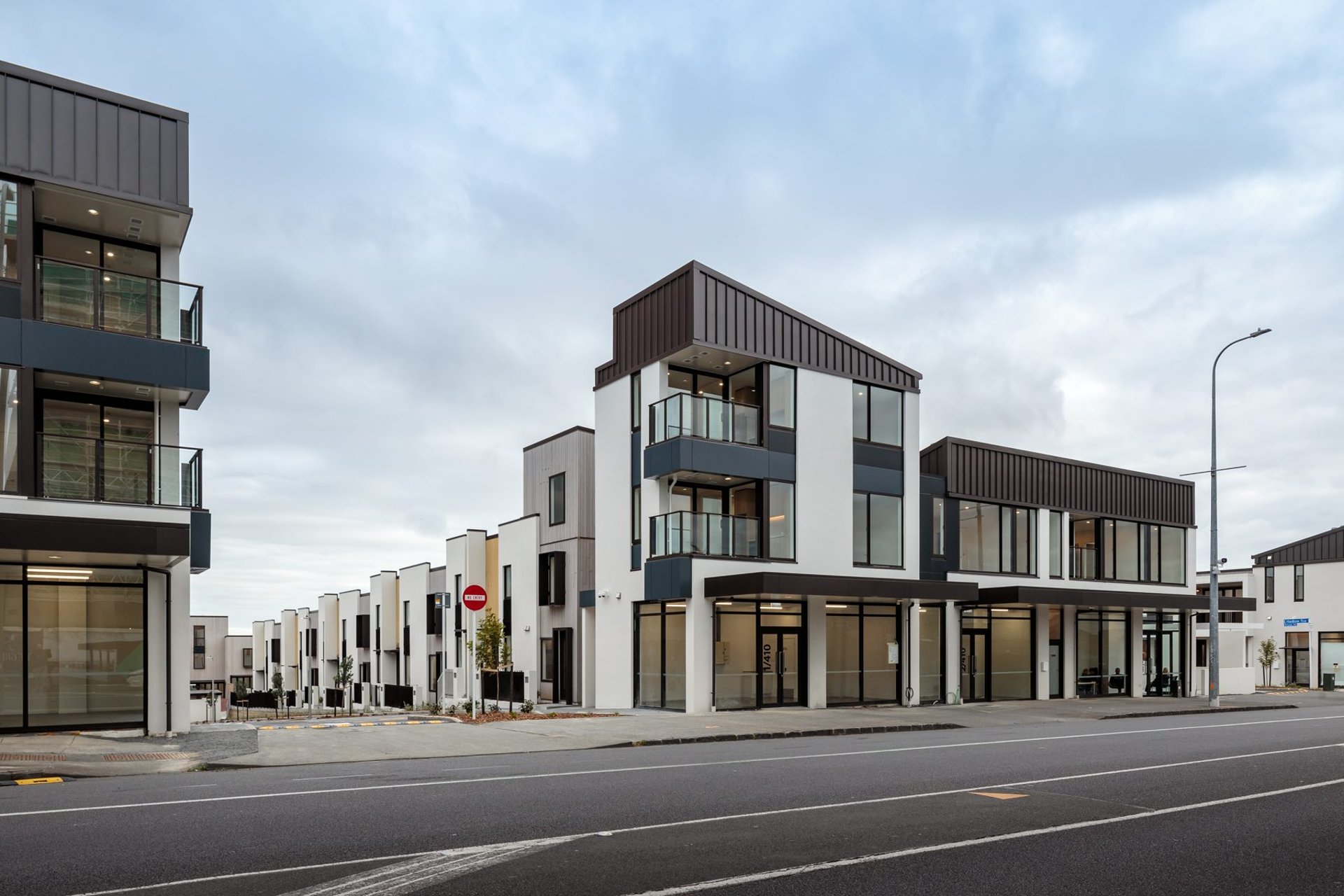

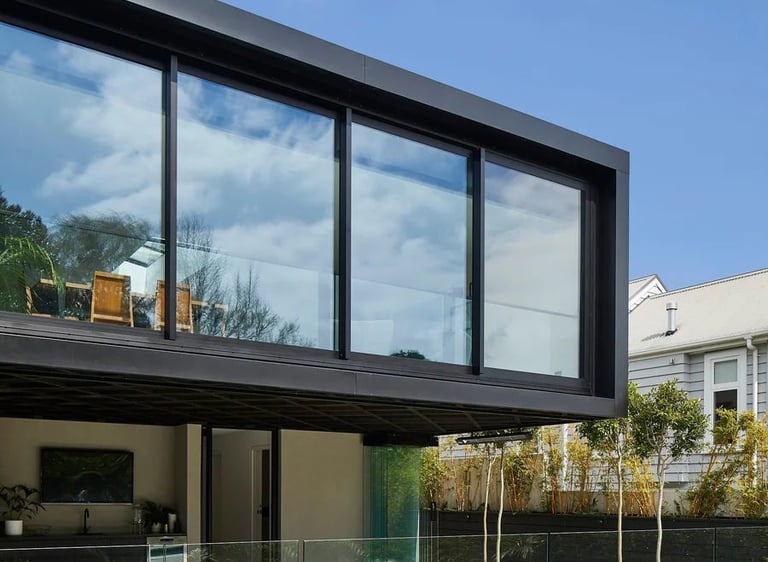

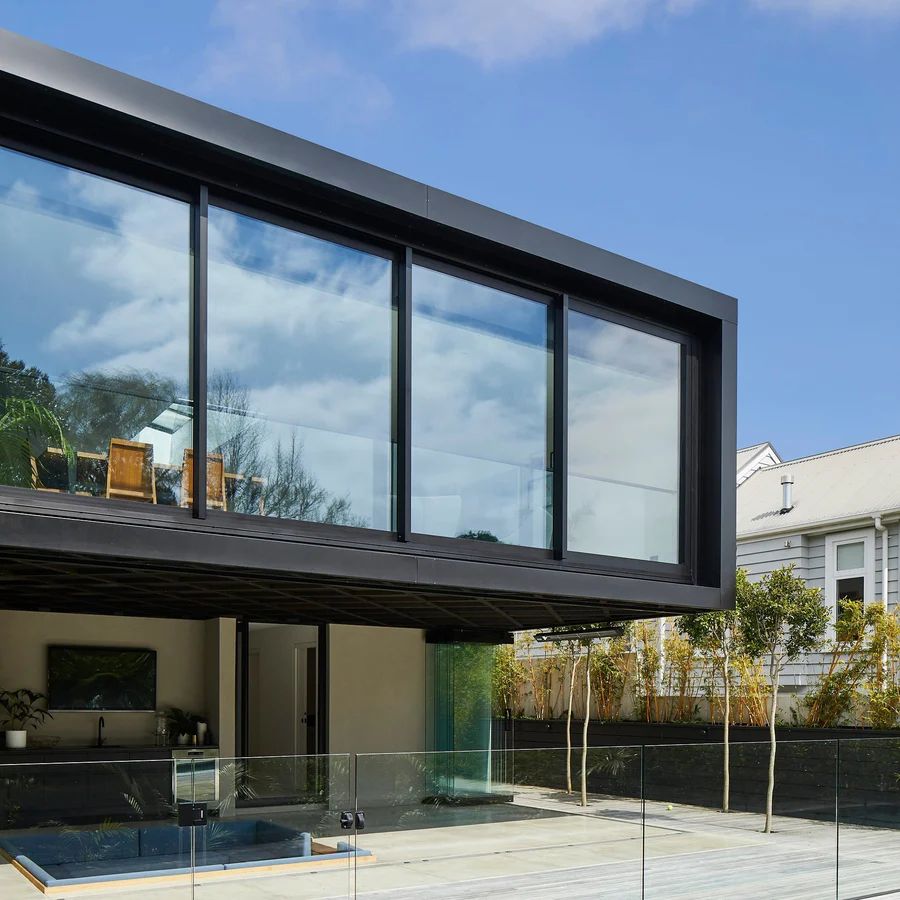

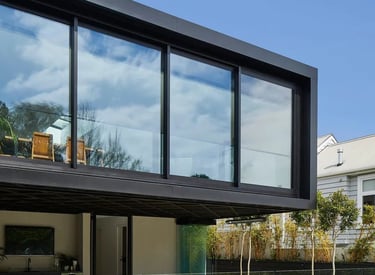

Case
