PANORAMA-SLIDE
DOOR SYSTEM

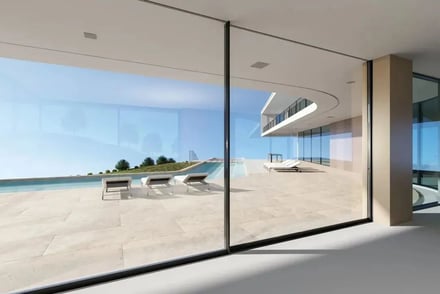

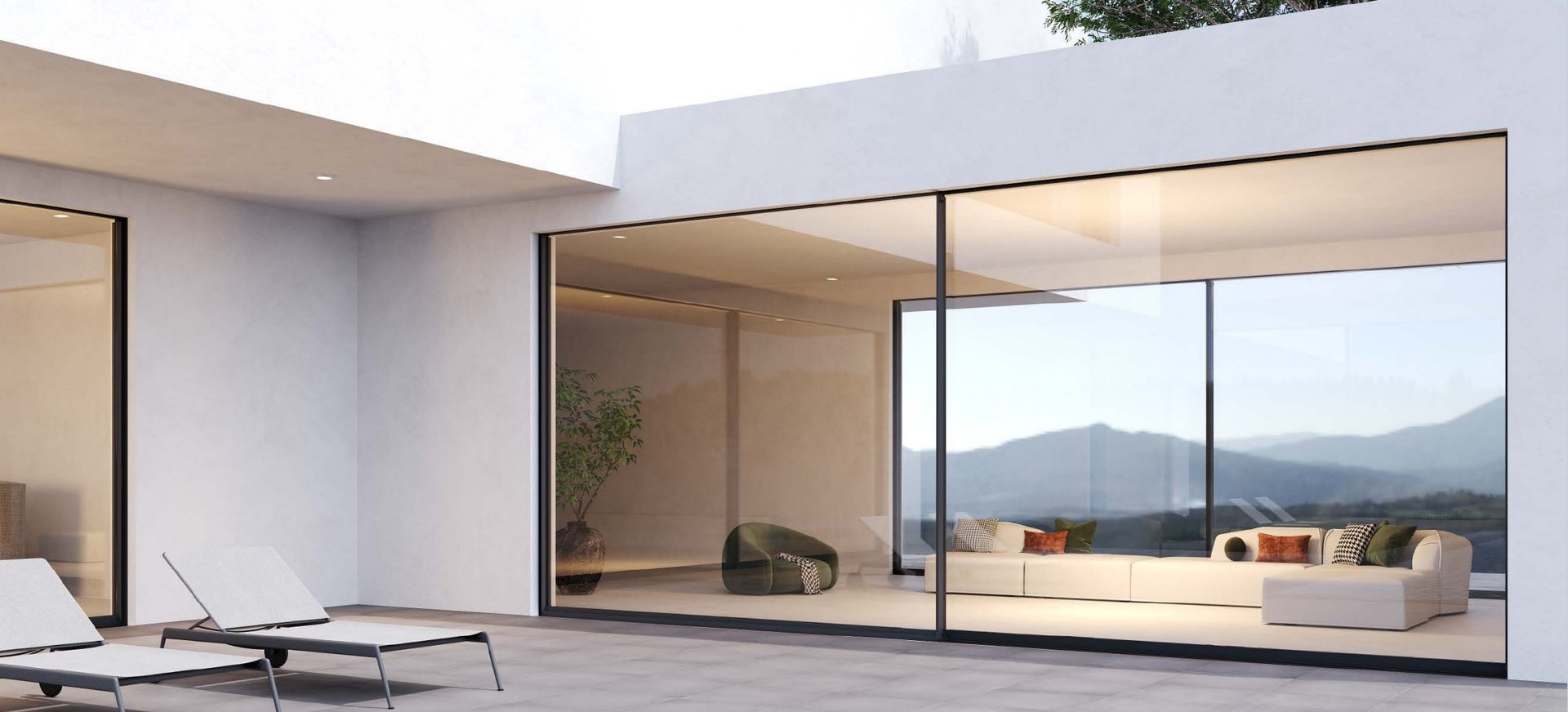

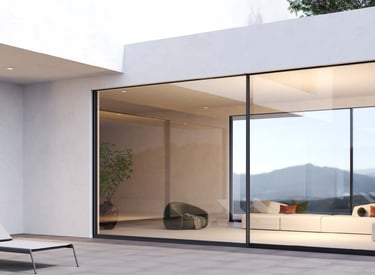

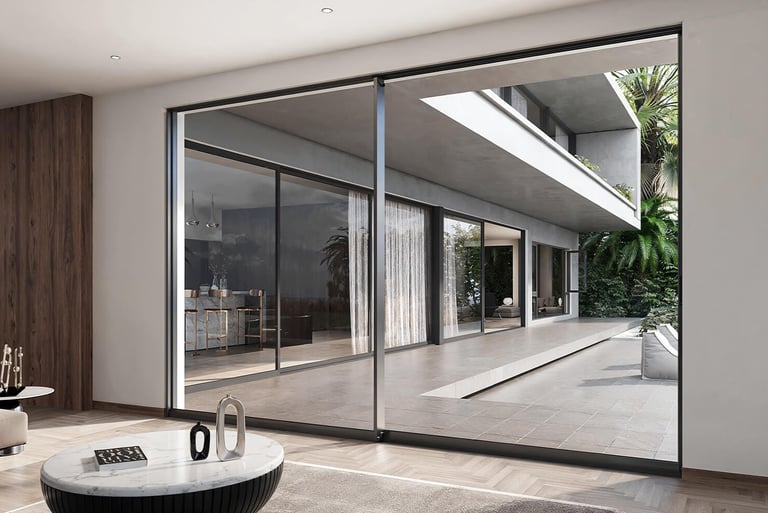

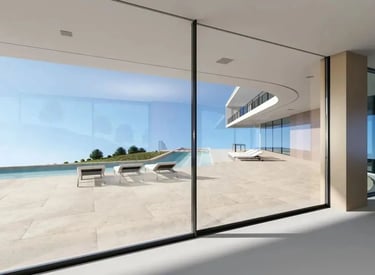

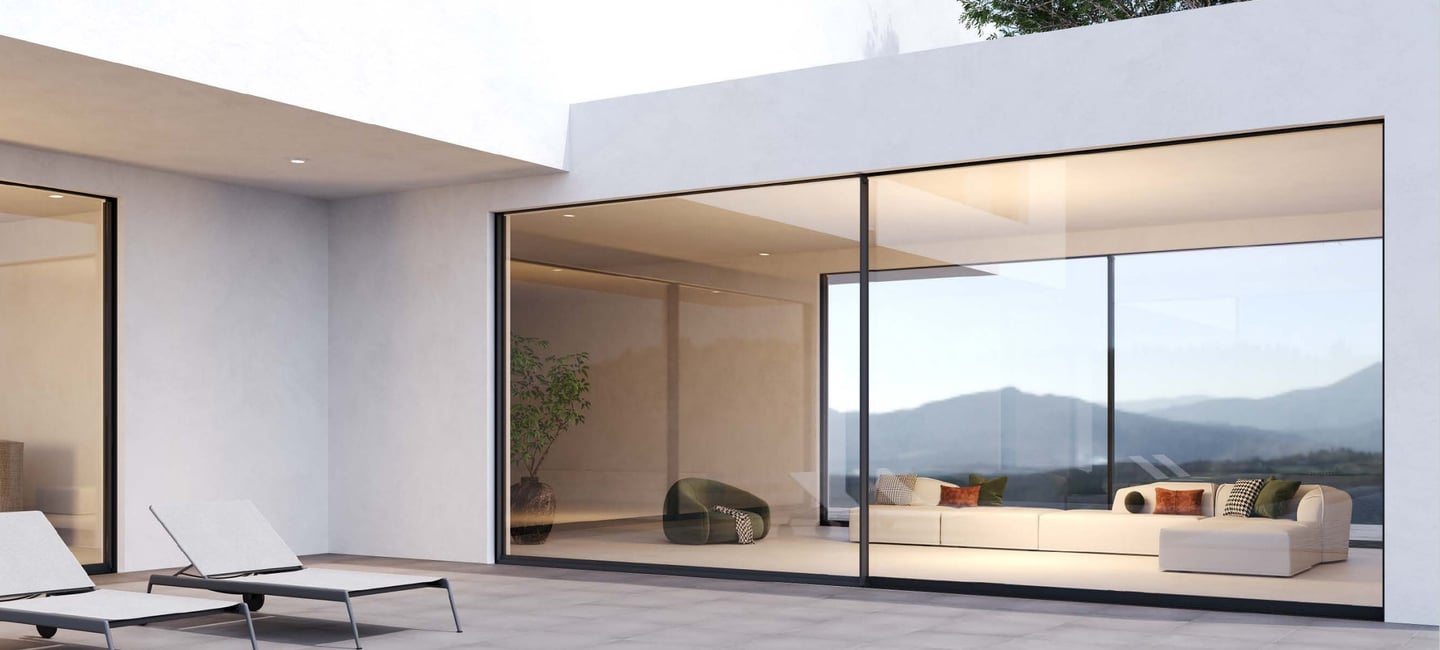

The panoramic-slide door utilizes innovative narrow-frame technology to maximize the field of view, seamlessly connecting indoor and outdoor spaces. Its sleek design enhances aesthetics while ensuring structural stability, making it perfect for designer projects. Ideal for both modern homes and commercial spaces, it beautifully integrates natural light, elevating the overall experience.

Maximum Size Of Sash Width ≤4000mm / Height ≤2800mm

Thickness Of Main Profile 2.2mm

Glass Clamping Thicknesss 32mm

Load Bearing of Sash ＜900kg

Water Penetration 720Pa

Air Leakage

Positive pressure Up to Level 8 / Negative pressure Up to Level 8

Structural Test Pressure ＜7200Pa

U-Factor ≥0.39 Btu/(hr x ft² x ºF)

Specifications

Thermally broken aluminum Panoramic sliding Door system with double glazing and multi-layer sealing, providing excellent thermal insulation, airtightness, water resistance, and durability for residential and commercial use.

Minimalist Panoramic Design

Features a 26mm ultra-narrow edge with a frame embedded in the wall, breaking through frame limitations to provide a wider view.

Smart Electric System

①Smart home integration allows for voice control and remote operation, with multiple emergency safety measures for power outages.

②Hidden components: The main motor and transmission system are seamlessly integrated into specially designed profiles, maintaining a clean appearance.

Upgraded Hardware System

Supports a load capacity of up to 900KG, with a maximum height of 3.5m and a width of 4m. The pulleys are located at the sash end, making it easier to protect them during construction.

Exclusive self-developed sealing

Special adhesive tape for insulation, heat insulation, and smooth opening.

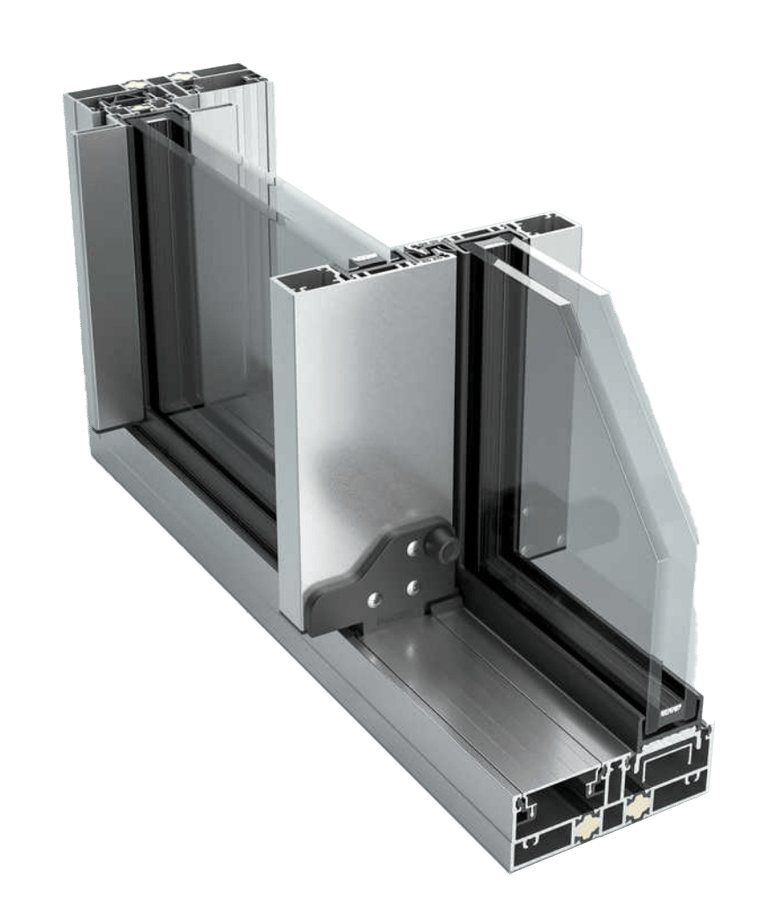

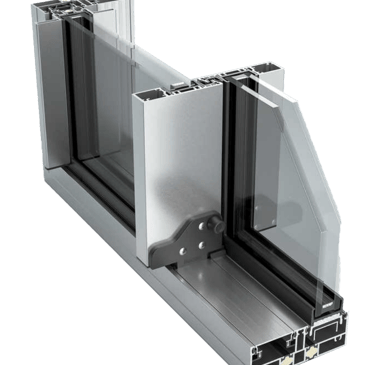

Made from high-quality aluminum alloy, the frame offers strength and durability. With optional thermal break and support for large glazing, it ensures energy efficiency, smooth operation, and reliable security.

PSD100

Frame Options

Frame Colors

Aluminum frames come in various colors and finishes, seamlessly matching any design. Powder-coated and anodized surfaces ensure lasting aesthetics and low

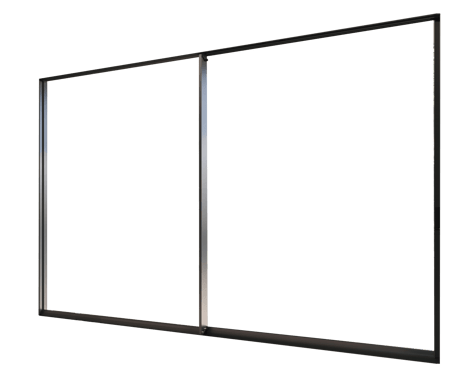

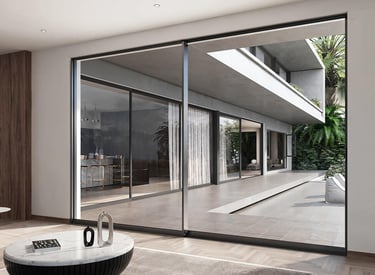

The slim aluminum panorama door frame is designed to create wide, unobstructed views while maintaining structural strength. Its ultra-narrow sightlines maximize the glass area, bringing in natural light and seamlessly connecting indoor and outdoor spaces with a modern, minimal aesthetic.

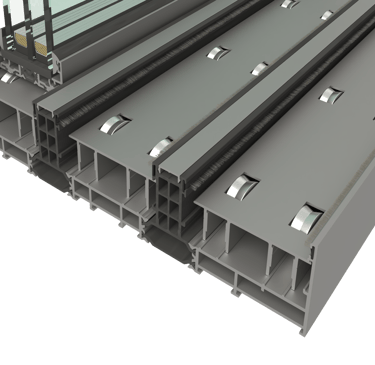

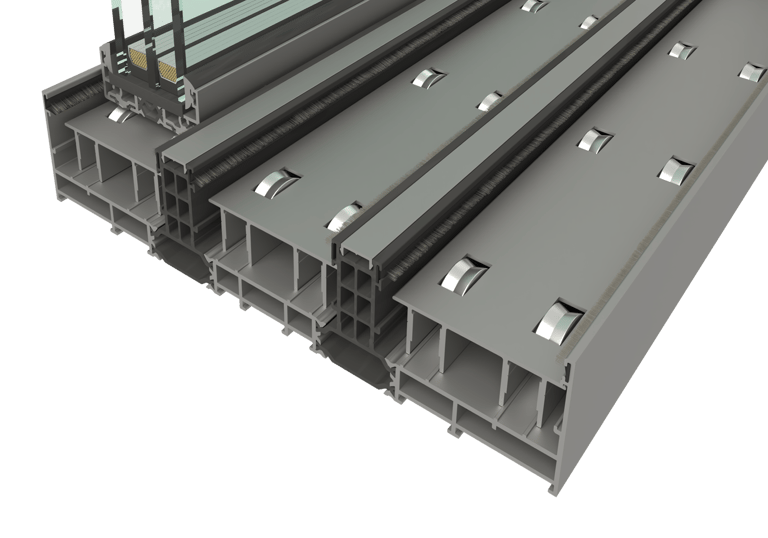

Optimize the panoramic sliding door track design by increasing wall thickness and enlarging the load-bearing cross section to enhance overall strength and deformation resistance. Precision machining at the interface between the track and rollers ensures smooth sliding and long-term operational stability.

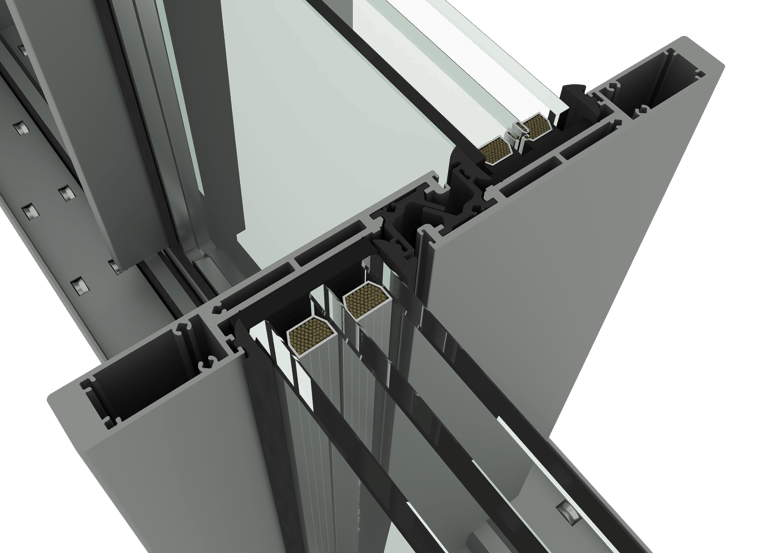

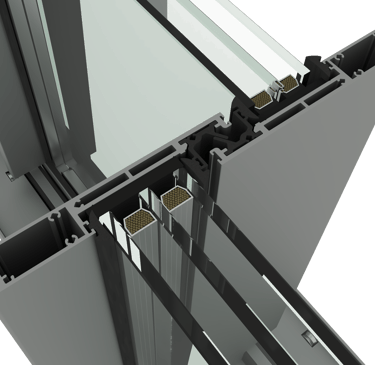

Enhance the design of the light keel and hook keel by increasing their structural depth and dimensions in the front-to-back direction to improve deformation resistance.

Double glazing can withstand greater wind pressure in high-rise apartment buildings, ensuring safety and stability while effectively reducing external noise for a quiet living environment.

Glazing Options

Triple glazing is widely used in buildings located in cold or noisy environments. Compared to double glazing, it offers better insulation, energy efficiency, and soundproofing. It helps reduce heating and cooling costs and creates a quieter, more comfortable indoor space.

Double Glazing

Triple Glazing

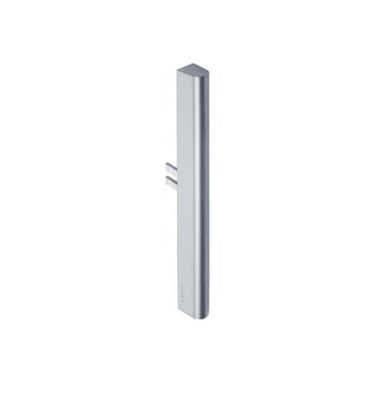

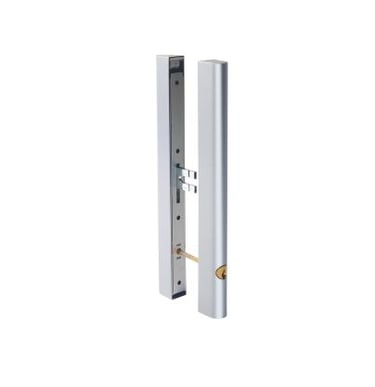

CMECH Metro Handle

Handle system

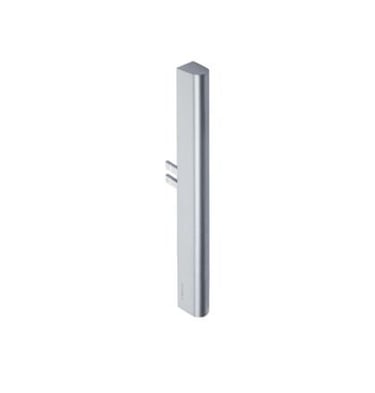

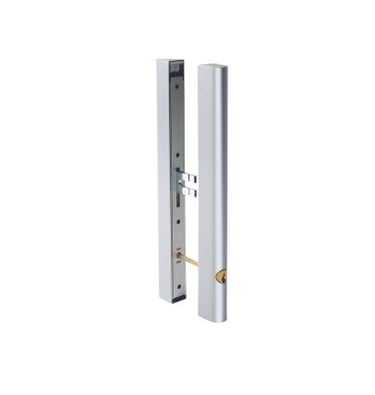

CMECH Metro Handle

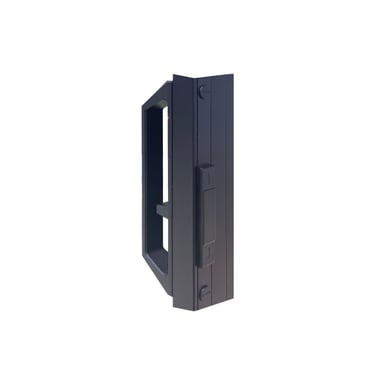

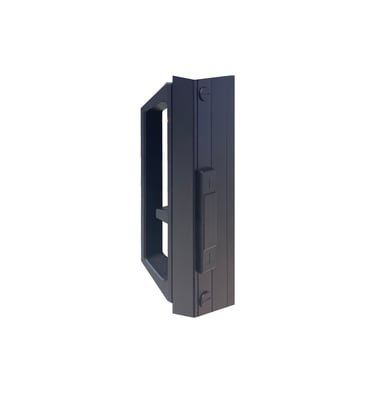

HOPO Handle

GBA Handle

Screening Options

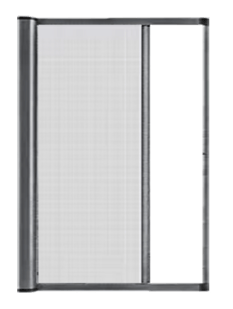

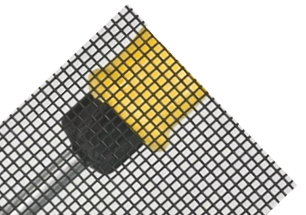

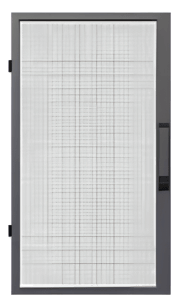

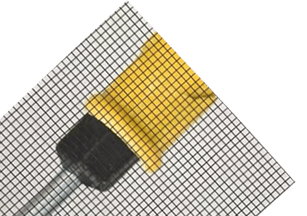

We offer a wide range of insect screen solutions including vertical roller, horizontal sliding, pleated, and framed types—each tailored to suit different spaces and usage needs. Whether for bedroom or kitchen windows, or large balcony and patio doorways, our screens provide both functionality and aesthetic appeal.
