Features

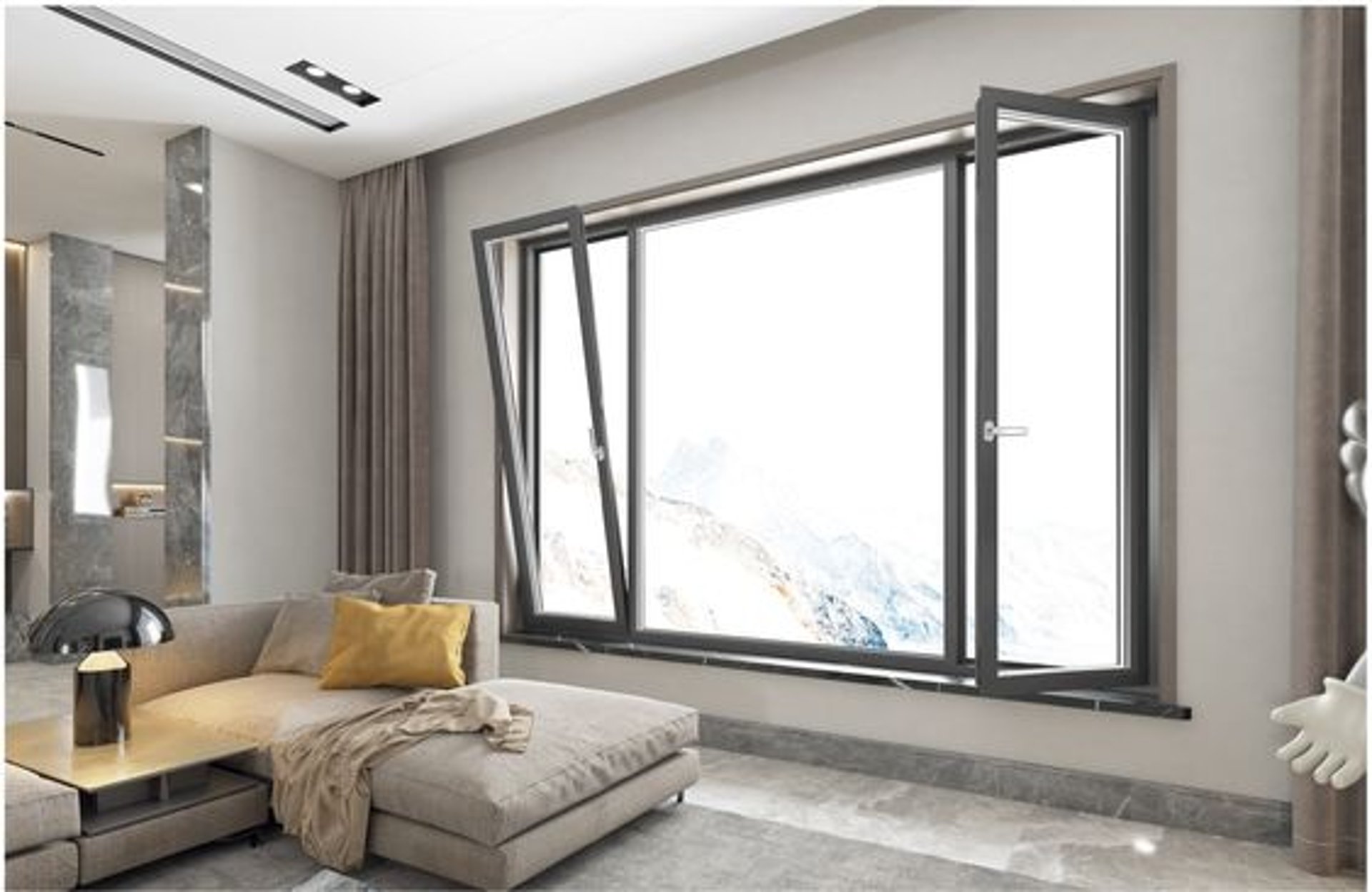

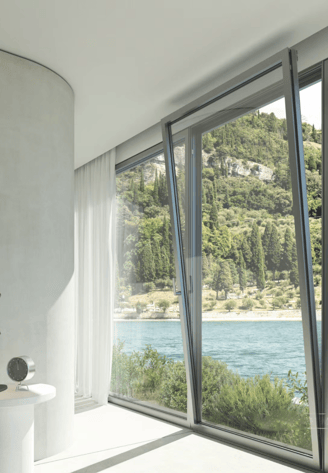

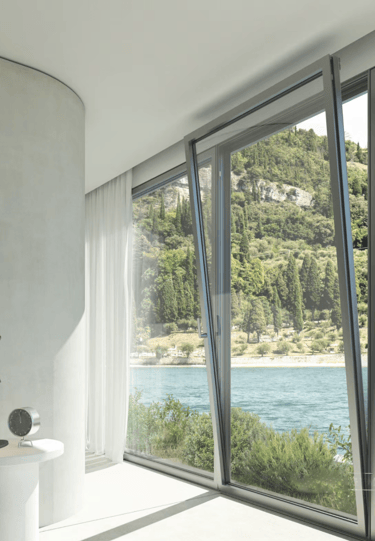

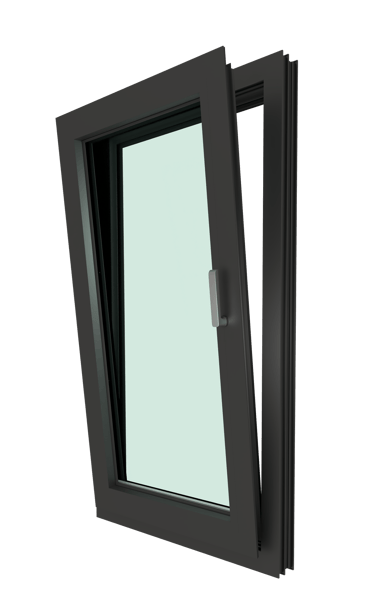

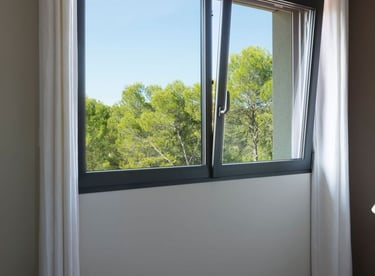

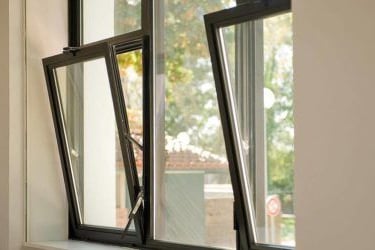

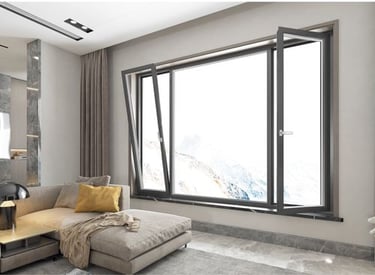

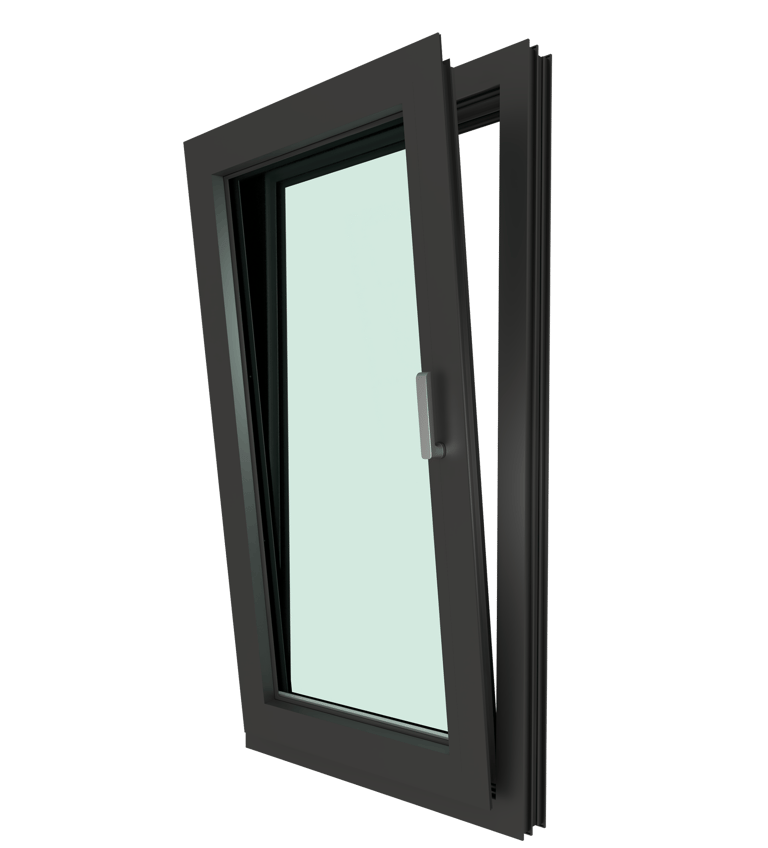

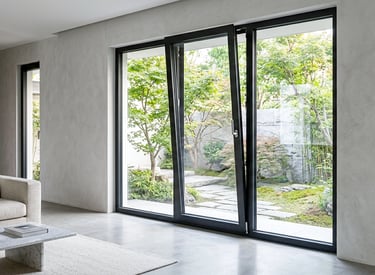

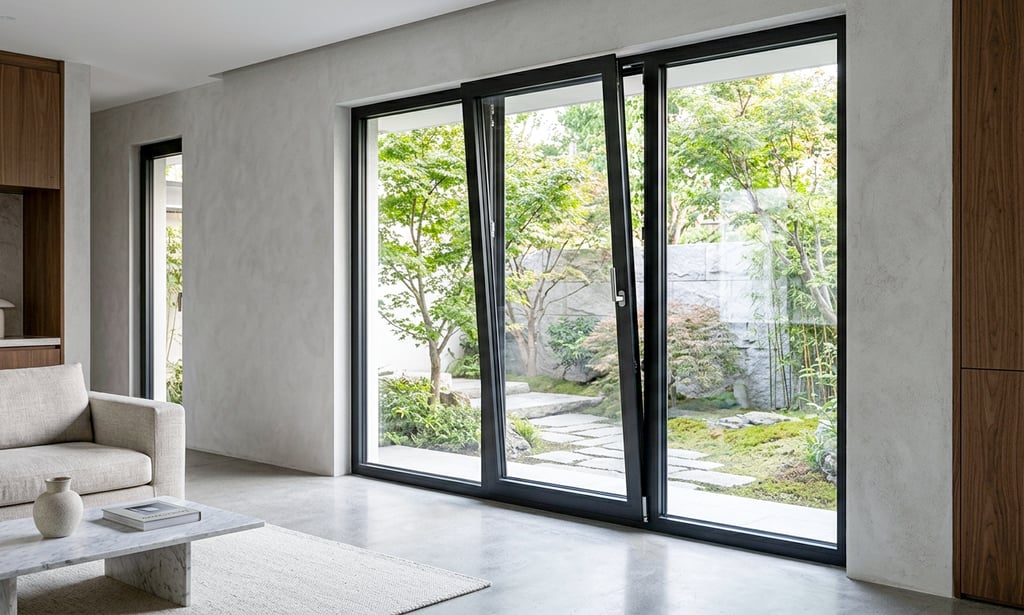

The window can tilt inward for small-angle ventilation or fully open inward, catering to different ventilation needs.

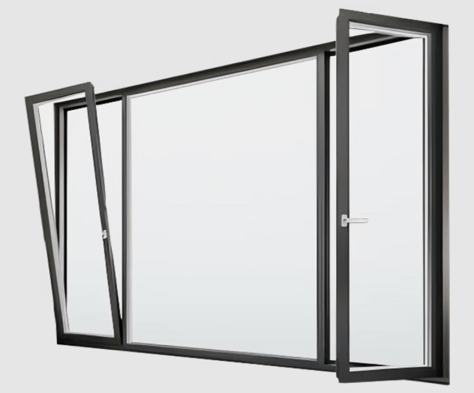

01 Dual opening functionality

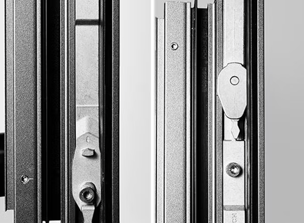

Multi-point locking and a complete sealing design enhance airtightness and watertightness, ideal for energy efficiency and extreme weather conditions.

02 Superior sealing performance

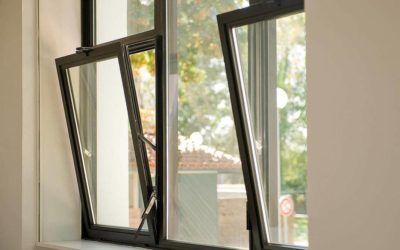

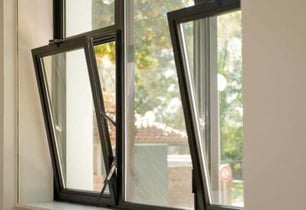

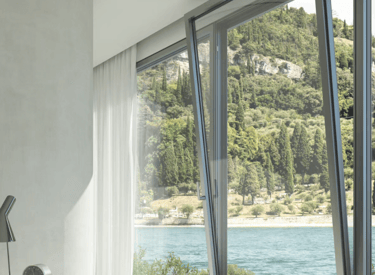

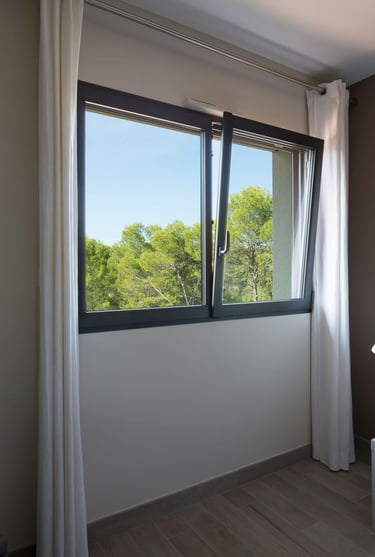

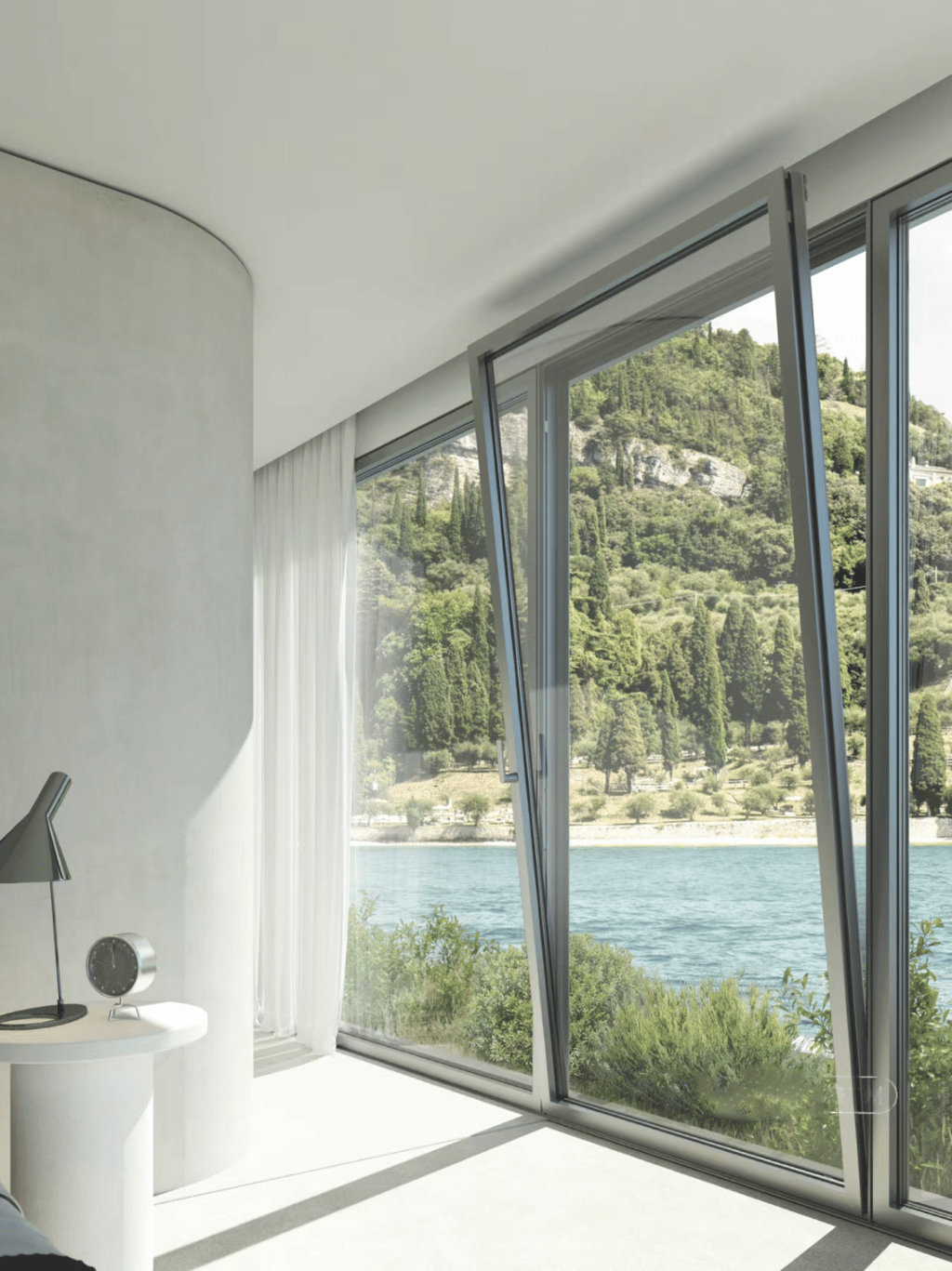

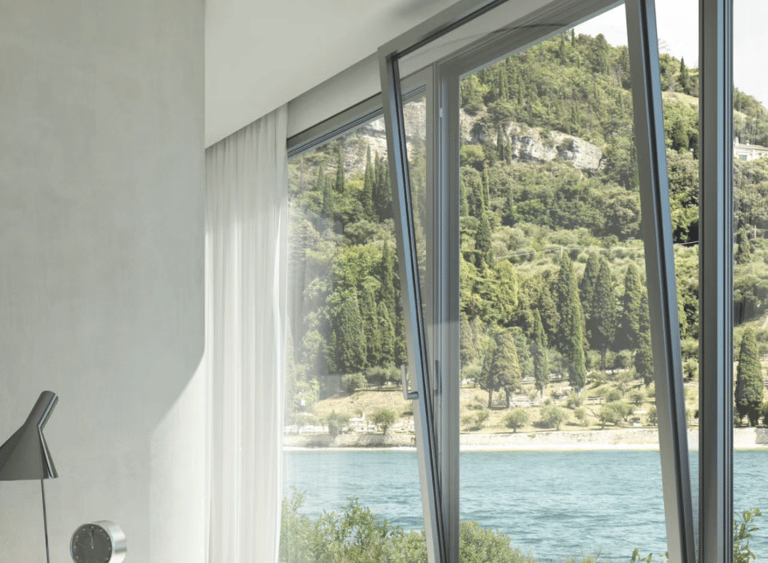

The tilt function allows for small openings during ventilation, preventing children or pets from falling while also keeping rain out.

03 Enhanced safety

04 Diversification

Tilt-turn windows equipped with an exterior insect screen allow both internal and external opening, providing ventilation while effectively keeping insects out.

Configurations

Available in a range of configurations, custom made and installed to your specification

TTW01

TTW02

TTW03

TTW04

TTW05

TTW06

Product Parameters

Opening Sash Size & Weight

Width ≤1200mm

Height ≤2100mm

Weight ≤100Kg

Glass thickness ≤48mm

Acoustic performance GB/T 8485

RW up to 36dB

Waterproof performance GB/T 7106

Normal Lower Frame Up to Level 3

HD100B Up to Level 6

Air permeability performance GB/T 7106

Positive pressure Up to Level 8

Negative pressure Up to Level 8

Wind load resistance performance GB/T 7106

Standard Edging Up to 4000Pa

Reinforced Edging Up to 4000Pa

Opening Sash Size & Weight

Width ≤1200mm

Height ≤2100mm

Weight ≤100Kg

Glass thickness ≤58mm

Acoustic performance GB/T 8485

RW up to 37dB

Waterproof performance GB/T 7106

Normal Lower Frame Up to Level 3

HD100B Up to Level 6

Air permeability performance GB/T 7106

Positive pressure Up to Level 8

Negative pressure Up to Level 8

Wind load resistance performance GB/T 7106

Standard Edging Up to 1500Pa

Reinforced Edging Up to 5000Pa

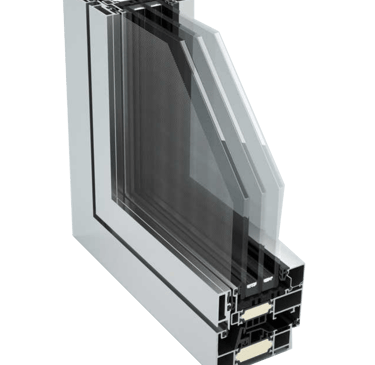

TTW50.N

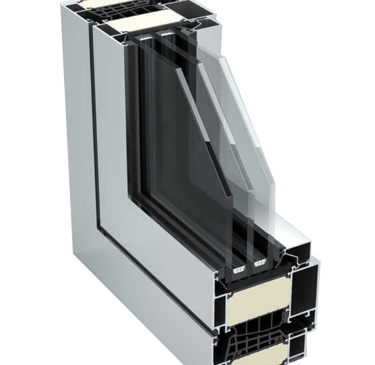

TTW55

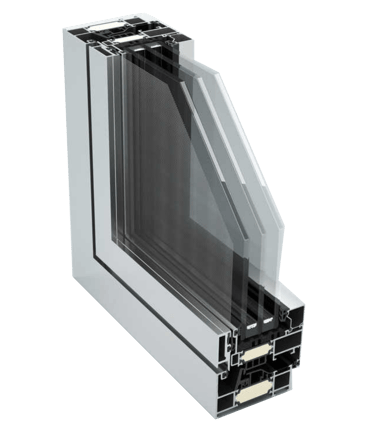

TTW65

Opening Sash Size & Weight

Width ≤1200mm

Height ≤2100mm

Weight ≤100Kg

Glass thickness ≤58mm

Acoustic performance GB/T 8485

RW up to 36dB

Waterproof performance GB/T 7106

Normal Lower Frame Up to Level 3

HD100B Up to Level 6

Air permeability performance GB/T 7106

Positive pressure Up to Level 8

Negative pressure Up to Level 8

Wind load resistance performance GB/T 7106

Standard Edging Up to 1500Pa

Reinforced Edging Up to 5000Pa

Glass Options

Energy Efficiency

The type of glass in windows and doors significantly impacts energy efficiency and comfort. Selecting the right glass can reduce heating and cooling costs while enhancing livability.

Safety & Security

Choosing the right glass reduces injury risks, resists breakage, and deters intruders, enhancing protection for your family.

Acoustic Glass

Selecting the right acoustic glass effectively reduces noise disturbance and enhances living comfort.

Privacy Glass

Choosing the right privacy glass enhances personal space and prevents unwanted visibility, ensuring comfort and security.

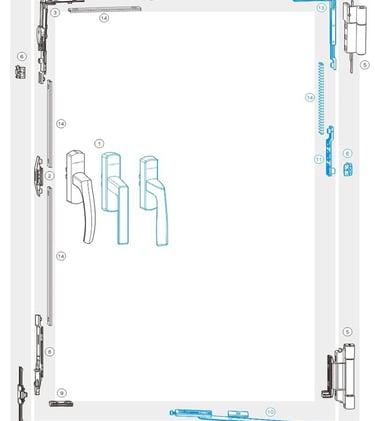

Hardware System

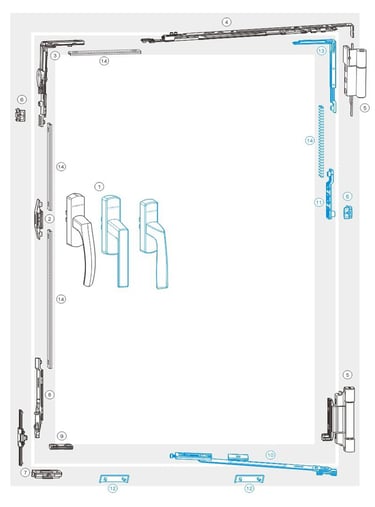

Tilt&turn Window hardware system 01

Tilt&turn window hardware system 02

Tilt&turn window hardware system 03

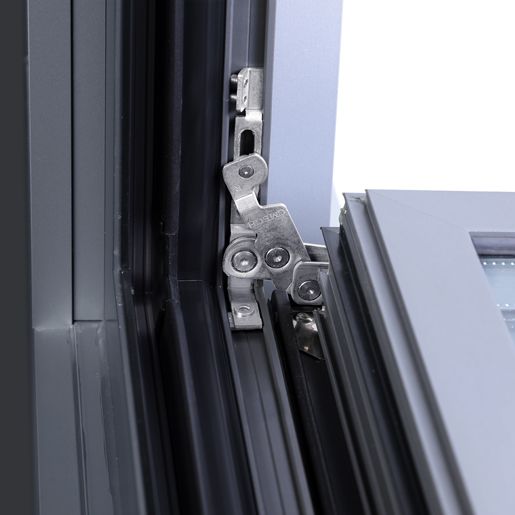

Concealed Hinge

Exposed Hinge

Hexagon Spindle Drive Gearbox

Hardware Detail

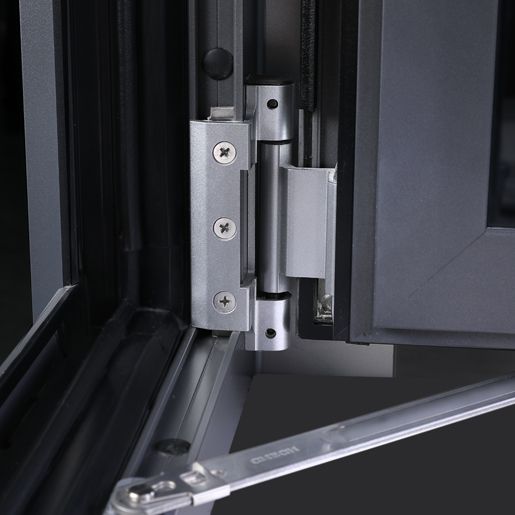

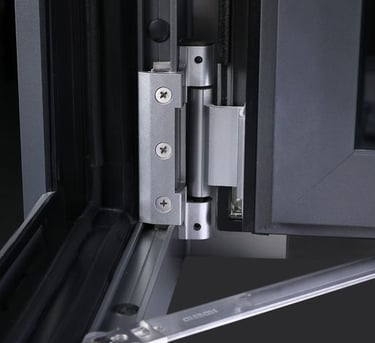

The concealed hinges showcase high-quality stainless steel rods up to a maximum thickness of 4mm with latching and precise positioning for quick installation and safety. Omnidirectional adjustment functions allow for a superior seal.

ndustrial-grade aluminium alloy profiles are cast as a single body, processed into structural frames with precision by CNC, then subjected to unique treatment technology to achieve the same colour and texture as handles. The ideal match for aluminium or steel windows.

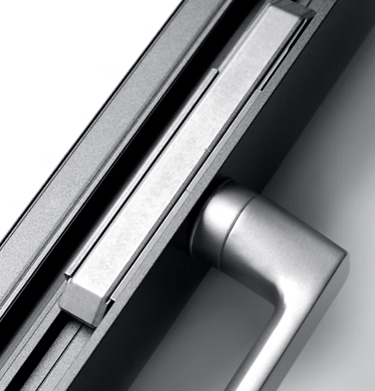

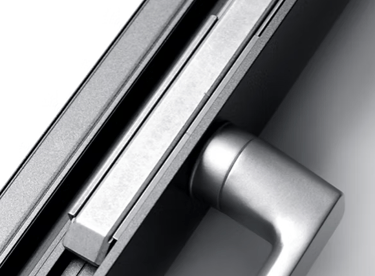

It can be easily installed into the C groove. There are no screw holes on the front, replacing it with alignment imprints, creating a beautifully precise installation style. With a lengthened body, and improved transmission teeth strength, the cycle test stands more than 30,000 times.

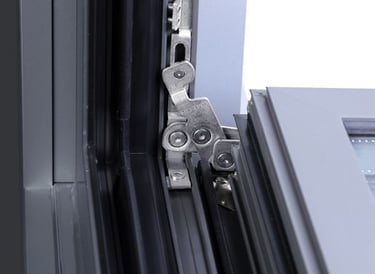

Fail-Safe Corner Drive

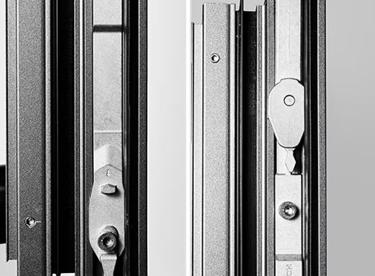

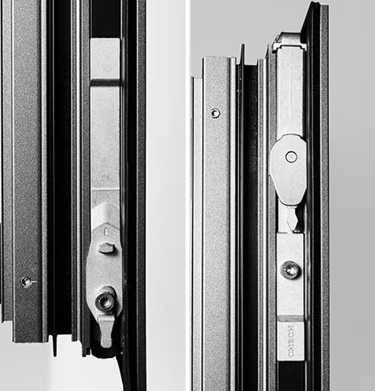

The flip support includes an anti-mistaken-turn device and a roller anti-pry lock system, preventing theft and prying. It also features adjustable connection points for easy and quick positioning.

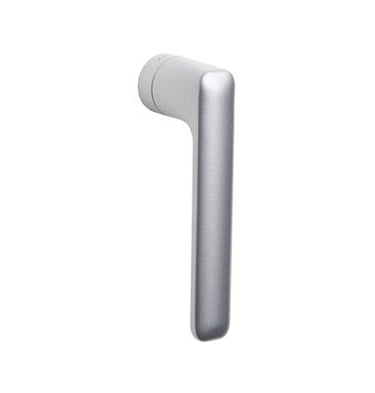

CMECH Milan Handle

Handle system

CMECH Milan Turn Handle

CMECH Koln Handle

CMECH Handle

CMECH Berlin Handle

Tuff mesh

HD Tuff Mesh

High-Transparency Mesh

Made of metal material, strong anti-theft performance, and high protection level.However, it has relatively low light transmittance, suitable for commercial and residential use.

Made of metal material, strong anti-theft performance, and higher protection level. It improves light transmittance by 30% compared to standard tuff mesh, suitable for projects that balance design and safety.

Made of PET metal material, with average anti-theft and protection capabilities. It offers excellent light transmittance and can be used for retractable screens, suitable for design-oriented projects.

Screening Options

Mesh options

Frame options

Compatible with tuff mesh or HD tuff mesh, significantly enhancing safety and anti-theft performance.

Frame

Case
