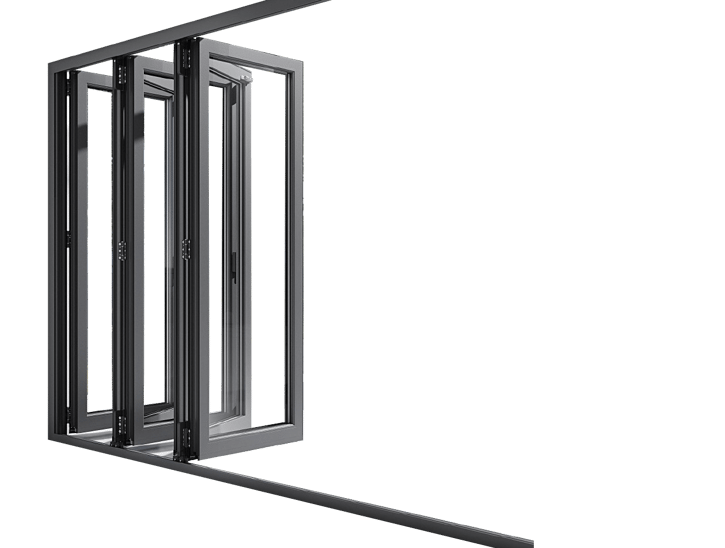

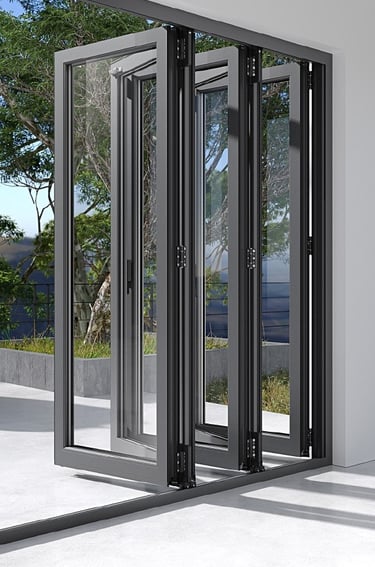

FOLDING
DOOR SYSTEM

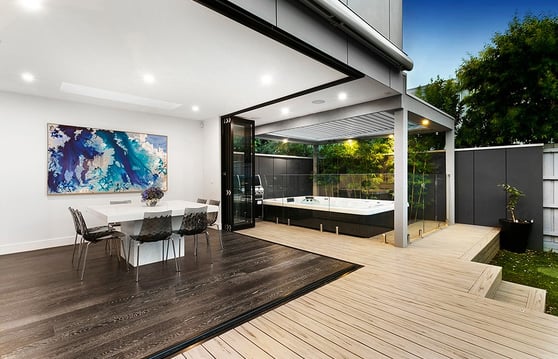

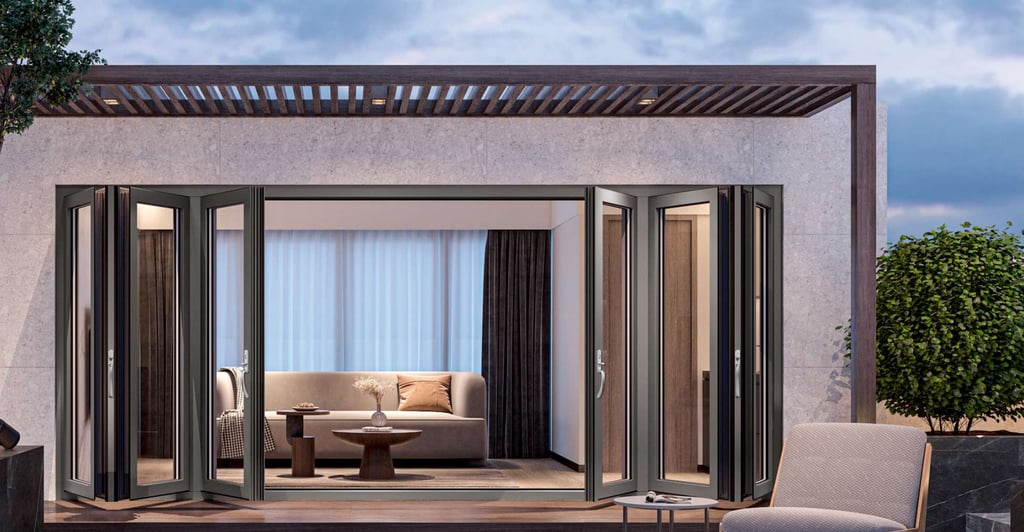

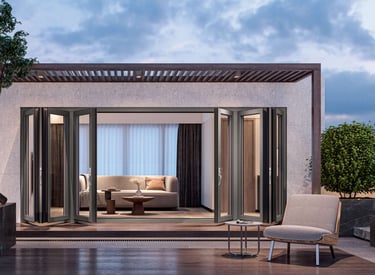

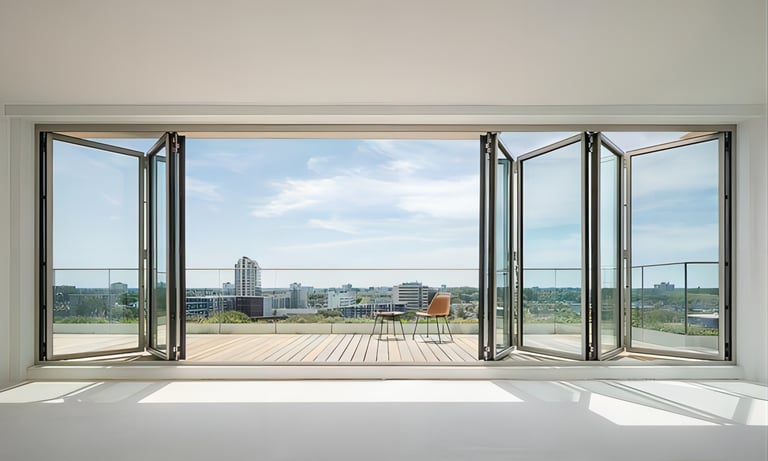

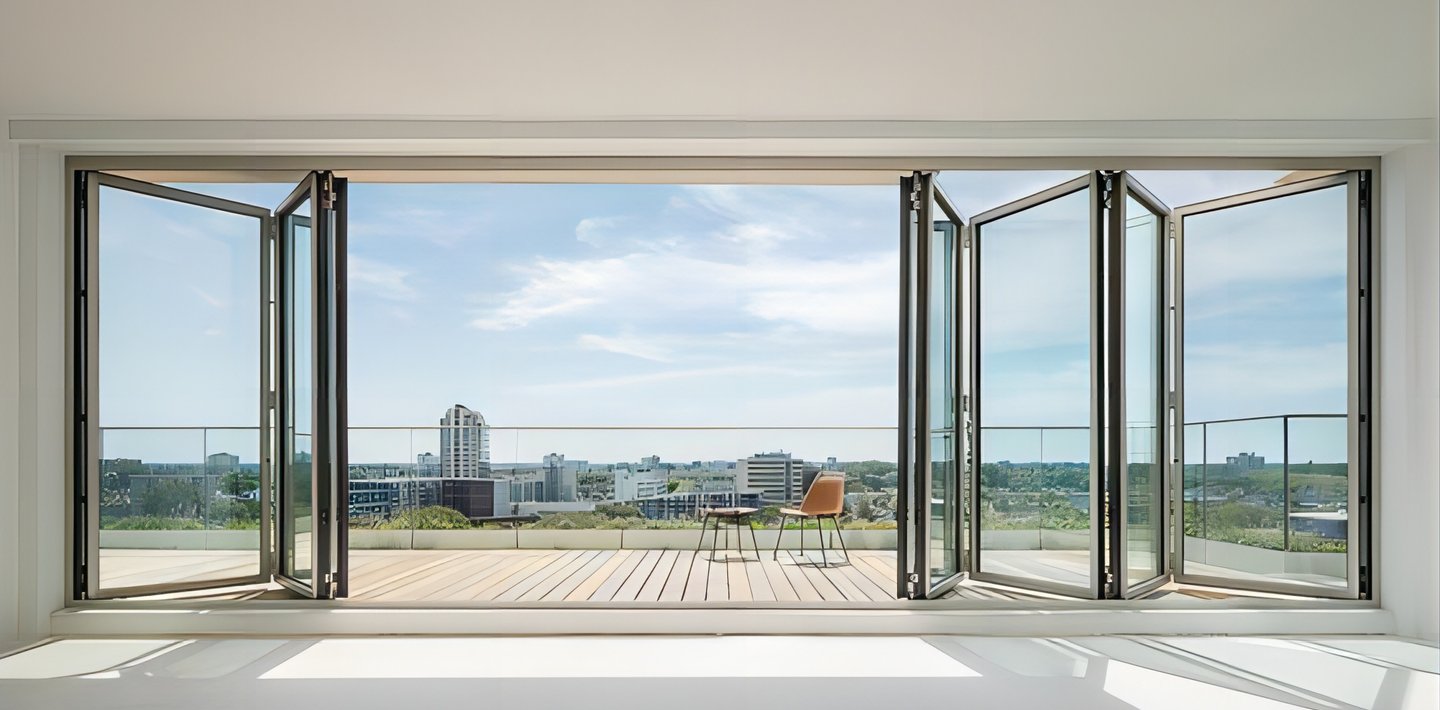

The entertainer's door of choice, create a single large area flowing from inside your home out to your patio, garden or alfresco dining area. Available with up to seven door panels and countless configurations to suit your home and lifestyle needs

Maximum Size Of Sash Width ≤1200mm / Height ≤2800mm

Thickness Of Main Profile 2.0mm

Glass Clamping Thicknesss 32mm

Load Bearing of Sash ＜90kg

Water Penetration 720Pa

Air Leakage

Positive pressure Up to Level 8 / Negative pressure Up to Level 8

Structural Test Pressure ＜4900Pa

U-Factor ≥0.28 Btu/(hr x ft² x ºF)

Specifications

Thermally broken aluminum casement window with double glazing and multi-layer sealing, providing excellent thermal insulation, airtightness, water resistance, and durability for residential and commercial use.

Operation

Safety

Appearance

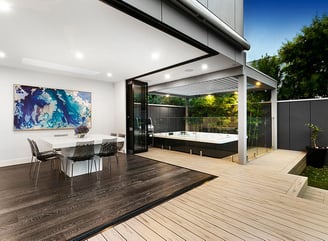

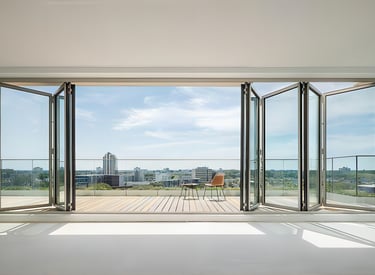

Enables large-scale openings for a seamless blend of indoor and outdoor spaces, facilitating easy transitions.

The concealed locking mechanism is linked to the latch, allowing for intuitive control of the door and window's opening and closing states.

The opening section of the frame sash features an anti-pinch sealing design to effectively eliminate safety hazards.

Multi-Sealing Process

Utilizes a multi-layer adhesive sealing process combined with integral corner adhesive strips for continuous sealing, delivering exceptional acoustic performance and stable thermal insulation.

Upgraded Durable Combination

Features a comfortable stainless steel double track and a specialized pulley kit for folding sliding doors, ensuring stability and durability.

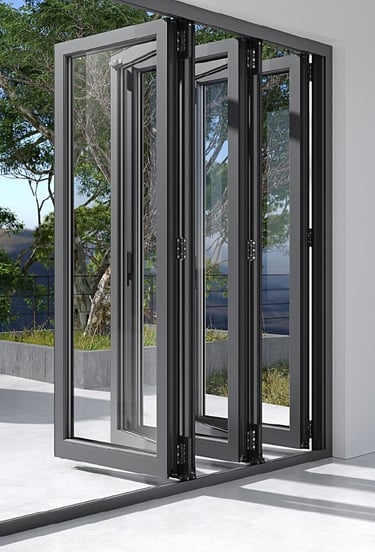

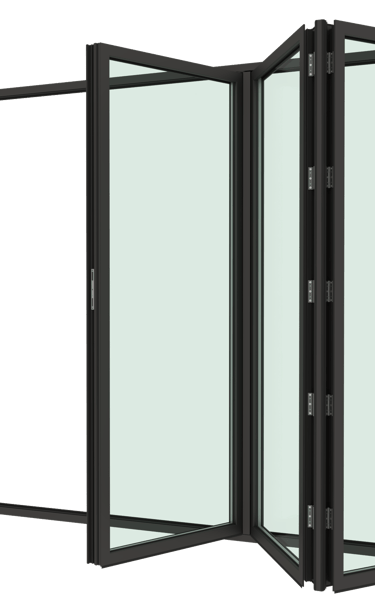

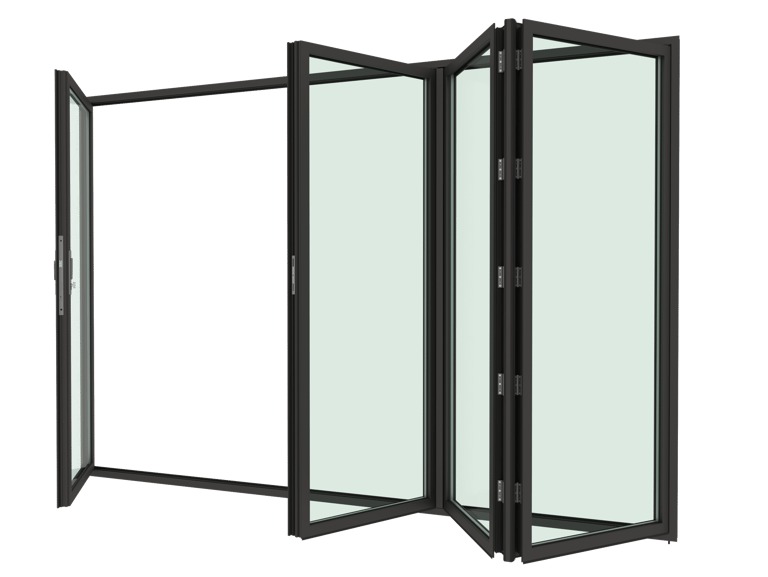

The frame system allows smooth folding and stacking, making it suitable for wide openings and flexible indoor-outdoor transitions.

FD130

Frame Options

Frame Colors

Aluminum frames come in various colors and finishes, seamlessly matching any design. Powder-coated and anodized surfaces ensure lasting aesthetics and low

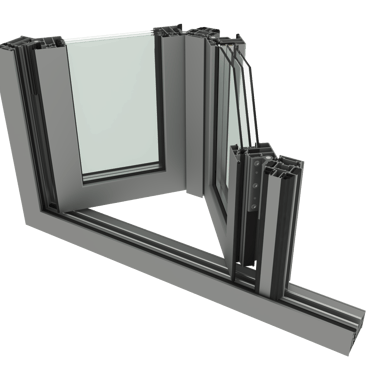

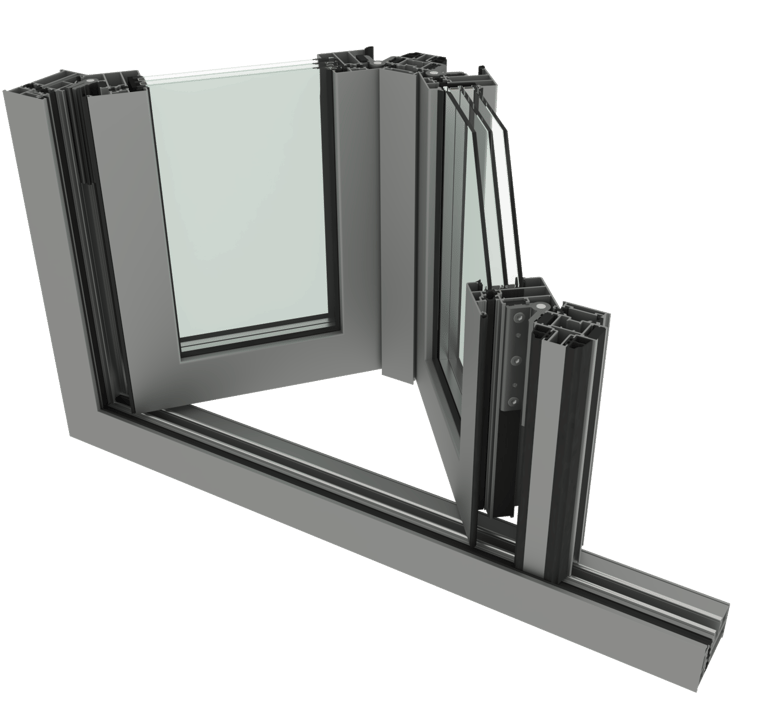

The folding door is constructed with reinforced aluminium profiles, designed to carry multiple sashes connected by heavy-duty hinges.

Double glazing can withstand greater wind pressure in high-rise apartment buildings, ensuring safety and stability while effectively reducing external noise for a quiet living environment.

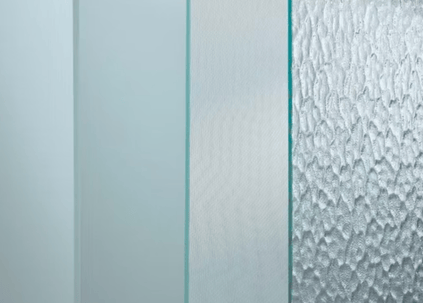

Glazing Options

Triple glazing is widely used in buildings located in cold or noisy environments. Compared to double glazing, it offers better insulation, energy efficiency, and soundproofing. It helps reduce heating and cooling costs and creates a quieter, more comfortable indoor space.

Double Glazing

Triple Glazing

Hardware System

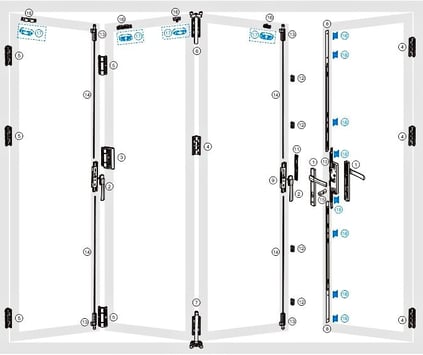

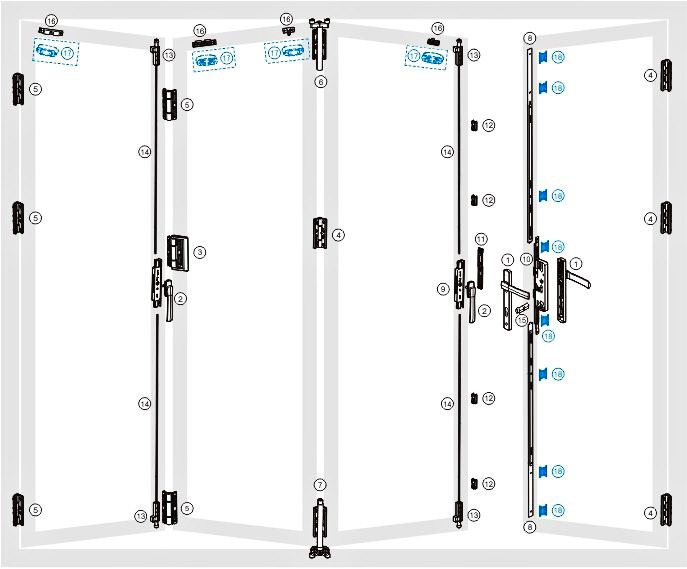

Folding Door hardware system 01

The System has a lifespan of over 30,000 operations

Folding Door Hinge

Bifold Door Roller

Hardware Detail

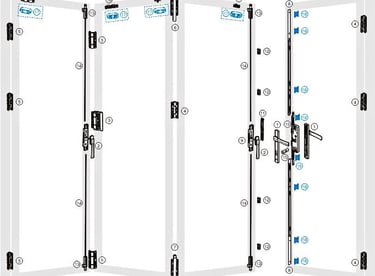

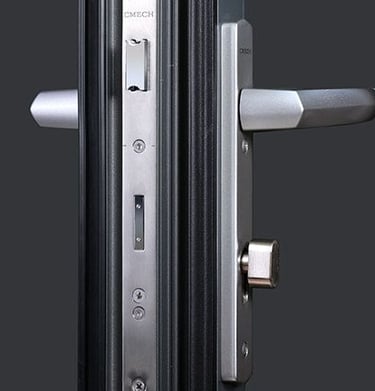

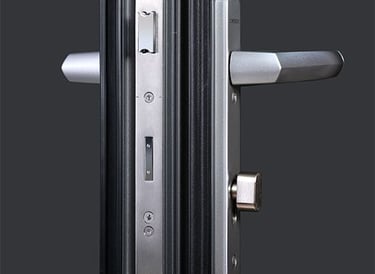

The integrated multi-point lock and shoot bolt multi-locking system achieve efficient control of the entire system. With simple adjustability of the upper and lower rollers and hinges, each bi-folding door sash is well-balanced and maintains good clearance.

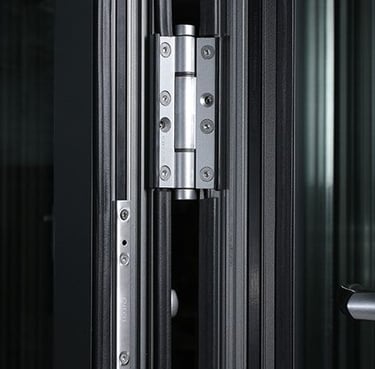

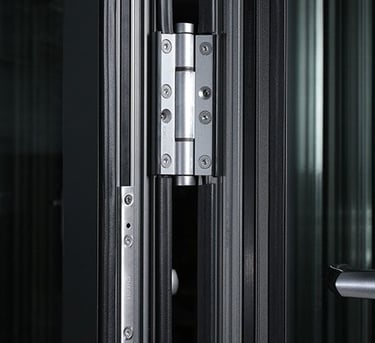

The folding door hinges have double pry-resistant features and come available with an adjustable and non-adjustable main strike. The end-point of the hinge is designed with a small strip, which ensures an excellent seal with the door sash.

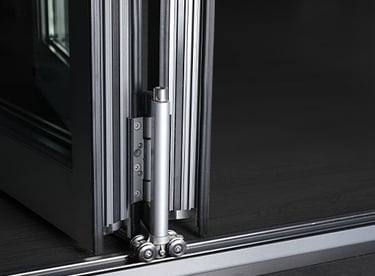

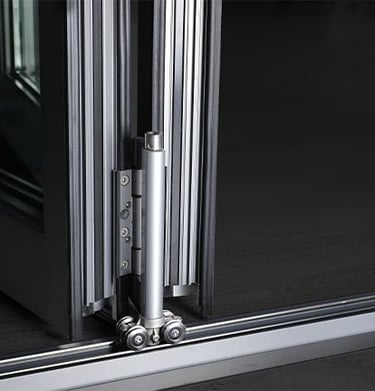

The easy to install high-load roller bearings are made from high-quality stainless steel and special abrasion-resistant materials, preventing breakage and allowing for a longer lifespan. A single sash can bear up to 120 kg. The height of the load-bearing roller is adjustable.
