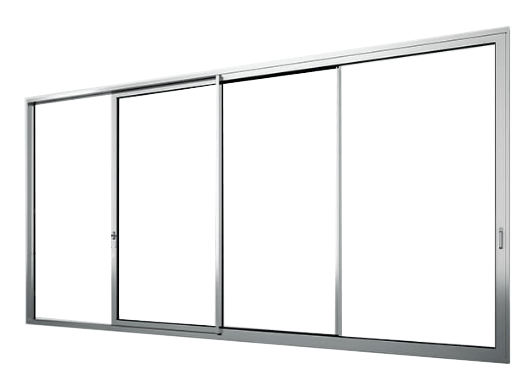

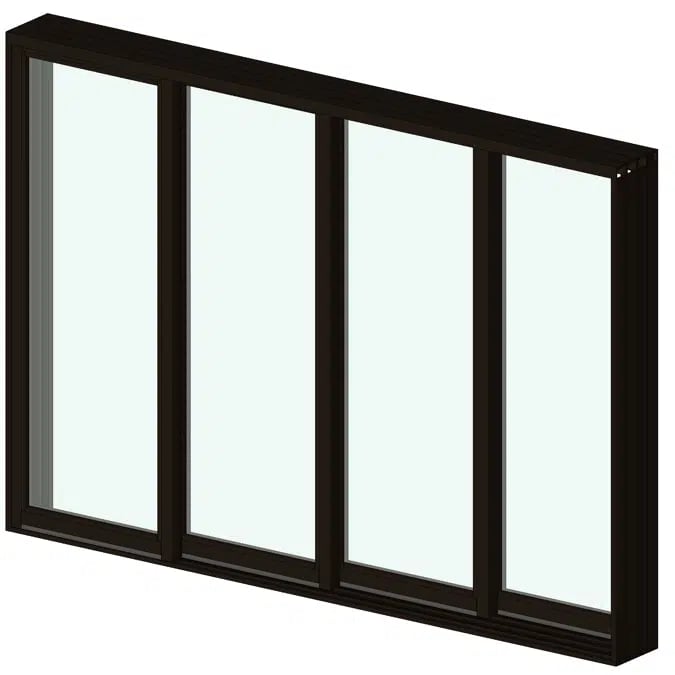

SLIDING
DOOR SYSTEM

Maximum Size Of Sash Width ≤3000mm / Height ≤3000mm

Thickness Of Main Profile 2.2mm

Glass Clamping Thicknesss 38mm

Load Bearing of Sash ＜300kg

Water Penetration 720Pa

Air Leakage

Positive pressure Up to Level 8 / Negative pressure Up to Level 8

Structural Test Pressure ＜7200Pa

U-Factor ≥0.25 Btu/(hr x ft² x ºF)

Specifications

Thermally broken aluminum casement window with double glazing and multi-layer sealing, providing excellent thermal insulation, airtightness, water resistance, and durability for residential and commercial use.

Safety

Sealing

Special Sealing Device: A special sealing device is designed for sealing dead corners in the corners.

Systematic Drainage Design: Features a stepped drainage structure in the lower frame and wind pressure-resistant drainage hole caps.

Drainage

Operation

Durable Silent Components: Made with stainless steel rails and a special pulley kit, ensuring durability and quiet operation while providing stable opening and closing performance.

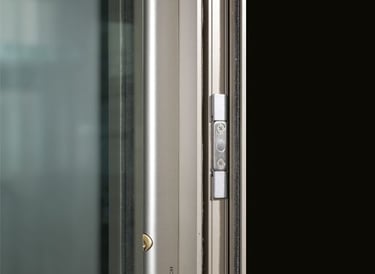

Hidden locking point and locking bracket: Aligned smoothly with the profile for unobstructed passage. The locking mechanism ensures the door's safety when closed.

Optional anti-collision blocks, anti-collision limit devices, and reverse operation devices effectively protect hardware and enhance durability.

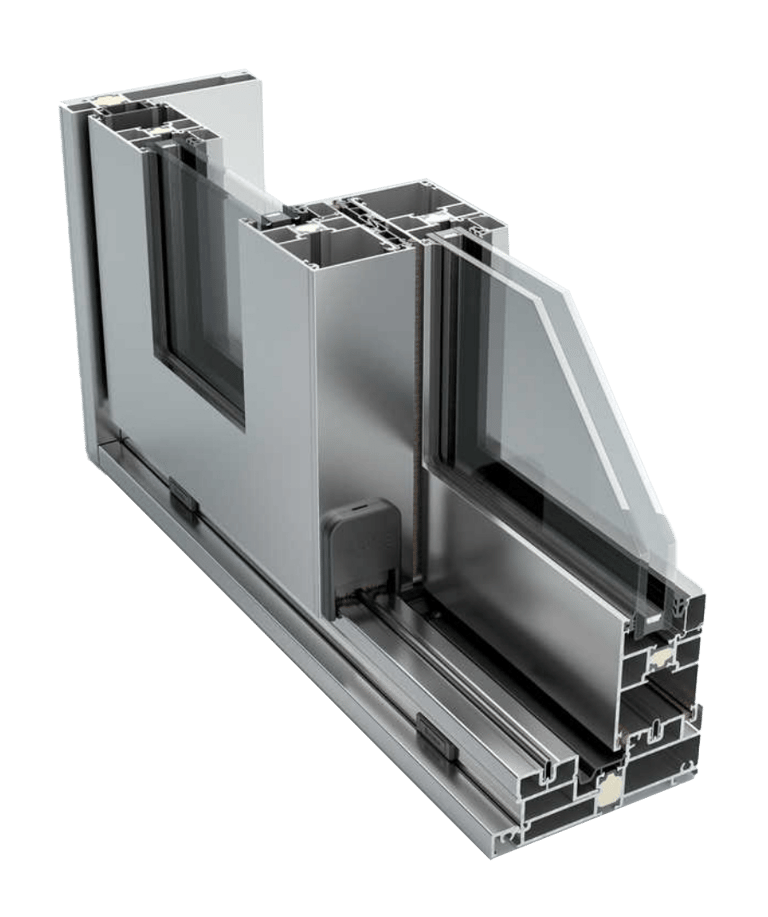

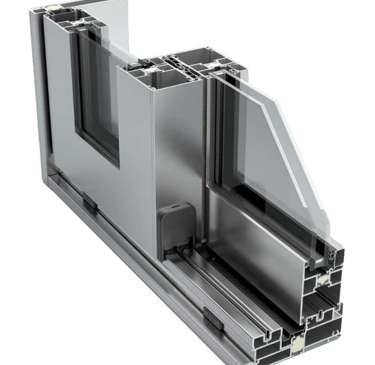

SD130

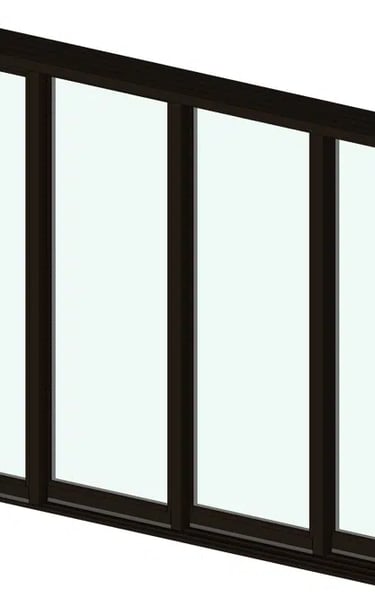

Frame Options

Frame Colors

Aluminum frames come in various colors and finishes, seamlessly matching any design. Powder-coated and anodized surfaces ensure lasting aesthetics and low

Standard drainage sill stops bugs and air infiltration with self-closing weep holes and collects water underneath the visible sill surface, draining to the exterior to prevent water infiltration.

SD130F

The screen door matchedwith the frameless SSD slide door can be selected. and thestainless steel high-permeability screen and imported high permeability screen can be selected to effectively prevent mosquitoes.

Double glazing can withstand greater wind pressure in high-rise apartment buildings, ensuring safety and stability while effectively reducing external noise for a quiet living environment.

Glazing Options

Triple glazing is widely used in buildings located in cold or noisy environments. Compared to double glazing, it offers better insulation, energy efficiency, and soundproofing. It helps reduce heating and cooling costs and creates a quieter, more comfortable indoor space.

Double Glazing

Triple Glazing

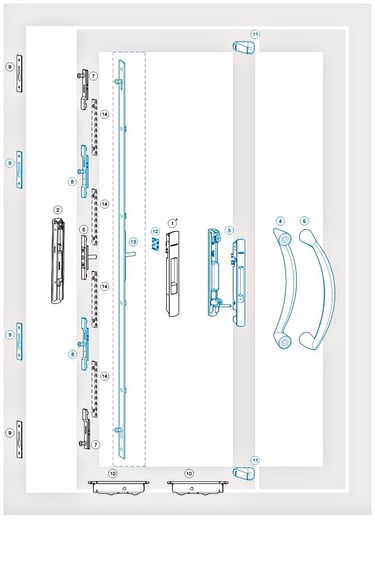

Hardware System

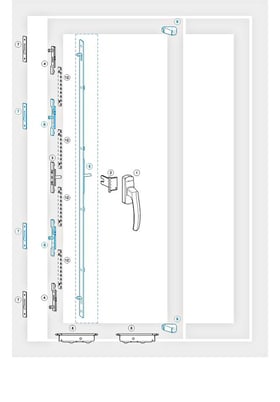

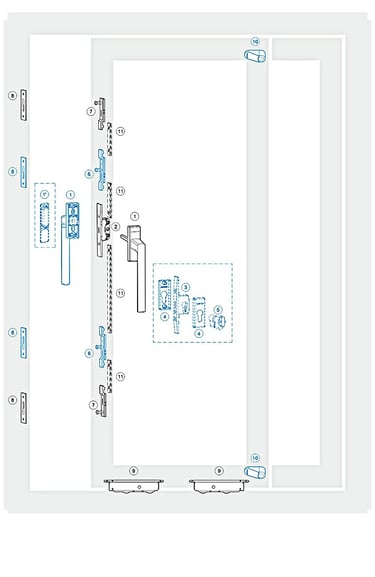

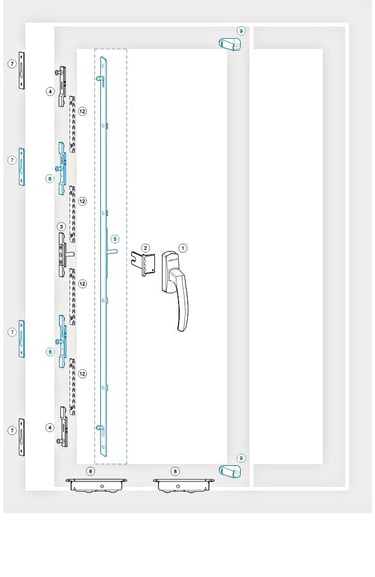

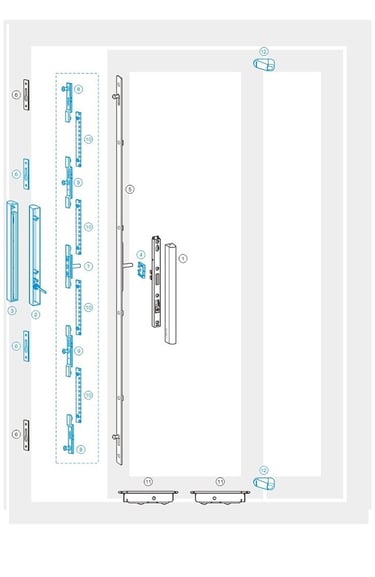

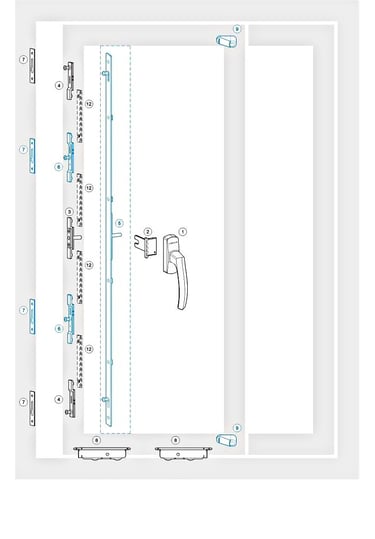

Sliding Door hardware system 01

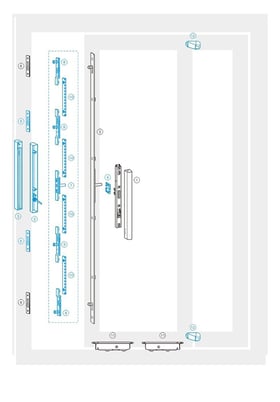

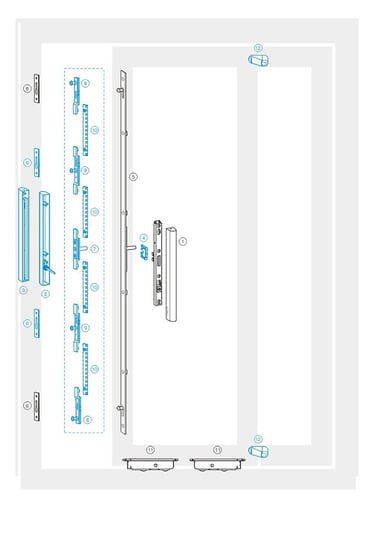

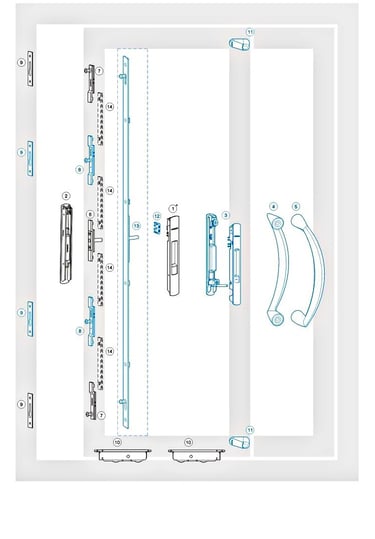

Sliding Door hardware system 02

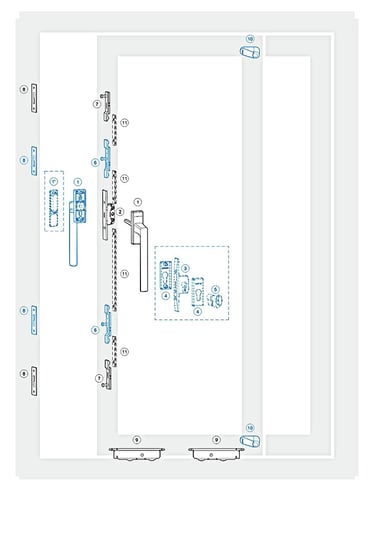

Sliding Door hardware system 03

Sliding Door hardware system 04

Metro Handle + Drive Gear

Recessed Handle + T-Drive

Sliding Door Roller

Hardware Detail

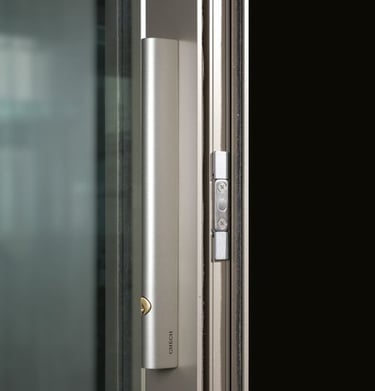

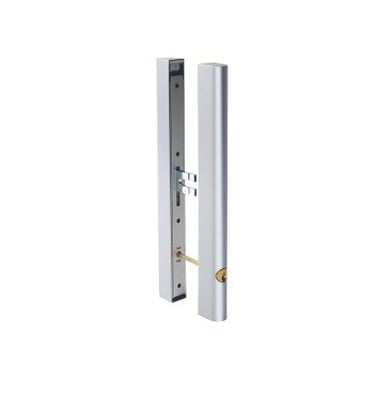

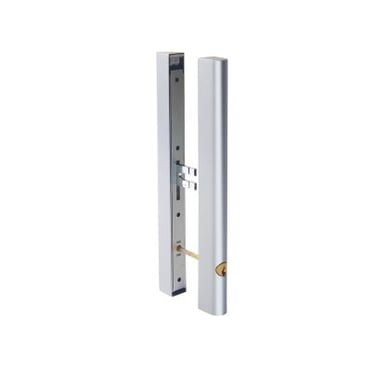

The Metro handle is a pure invention by CMECH for the sliding door industry. Based on the concept of "a lock doesn’t have to look like a lock”, it has revolutionized the traditional handle design and function by delivering a minimalist philosophy.

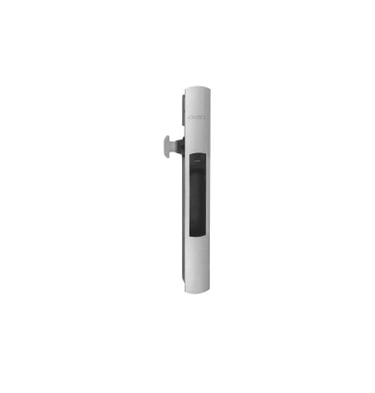

The recessed handle is made of a high-strength aluminium alloy with a super-thin design. Save space and upgrade your sliding door with this unparalleled sliding technology.

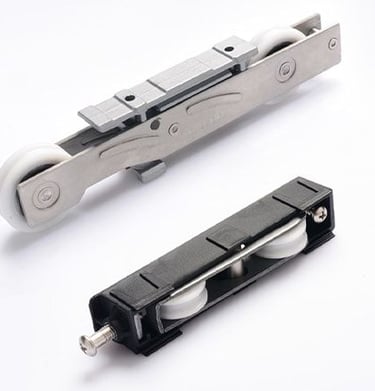

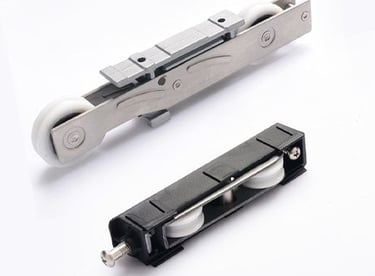

The Type R and Type V rollers are available in a variety of options to meet differing groove sizes and load-bearing requirements. The precision-built rollers are ultra-quiet and operate smoothly.

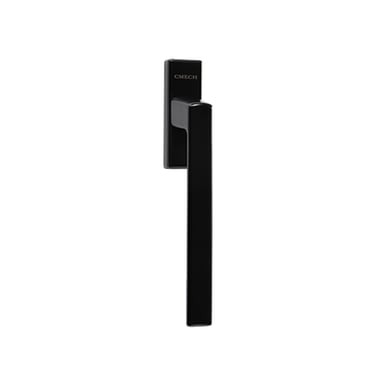

CMECH Milan Handle

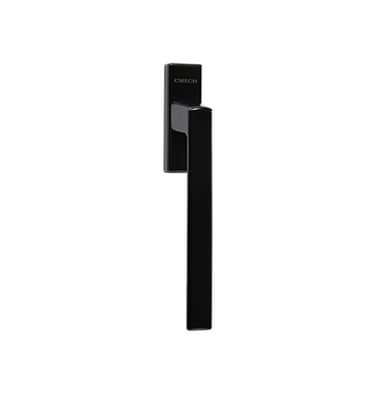

Handle system

CMECH Milan Turn Handle

CMECH Koln Handle

CMECH Handle

GBA Handle

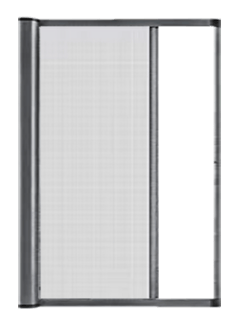

Screening Options

We offer a wide range of insect screen solutions including vertical roller, horizontal sliding, pleated, and framed types—each tailored to suit different spaces and usage needs. Whether for bedroom or kitchen windows, or large balcony and patio doorways, our screens provide both functionality and aesthetic appeal.

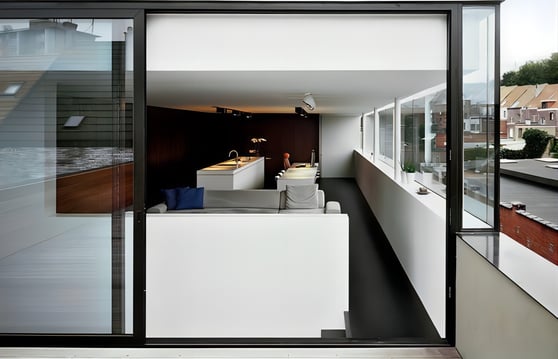

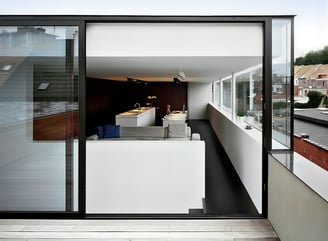

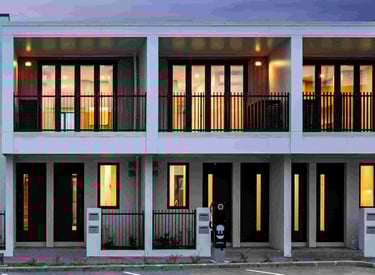

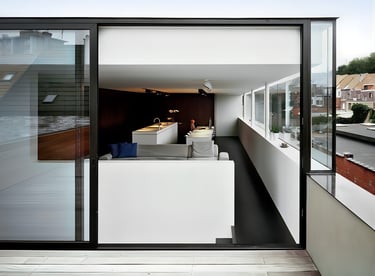

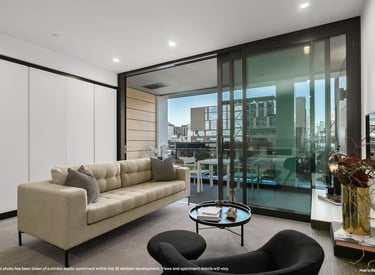

Case
