Bay Window System

Maximum Size Of Sash Width ≤900mm / Height ≤1800mm

Thickness of Main Profile 1.8mm

Glass Clamping 48mm

Load Bearing of Sash 300kg

Specifications

Bay Window System with double glazing and multi-layer sealing, providing excellent thermal insulation, airtightness, water resistance, and durability for residential and commercial use.

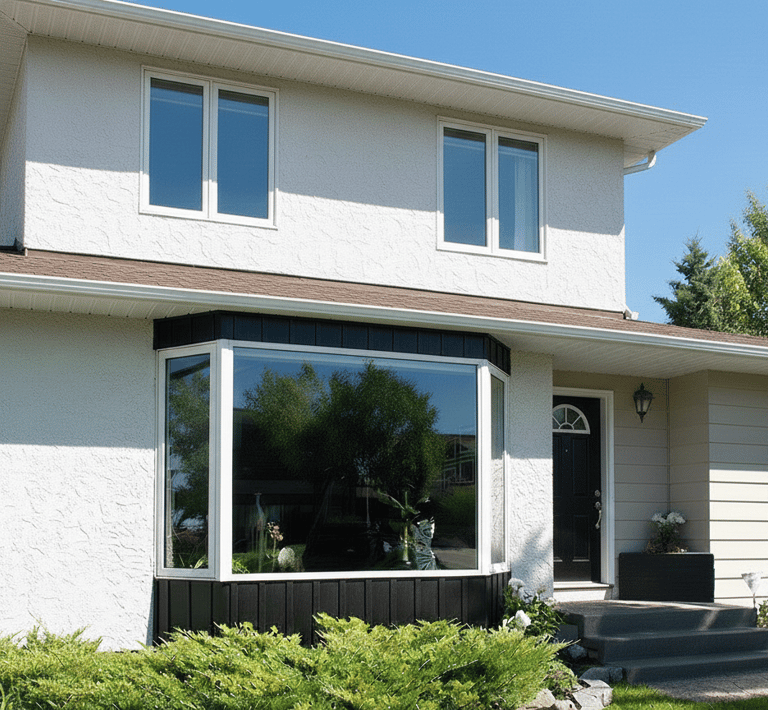

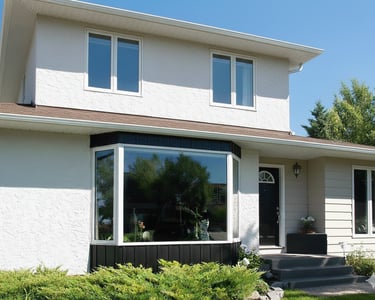

Extended Interior Space

By projecting outward from the façade, the bay window creates additional usable interior space without increasing the building footprint, adding functional and architectural value to the room.

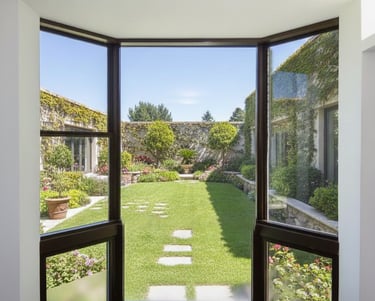

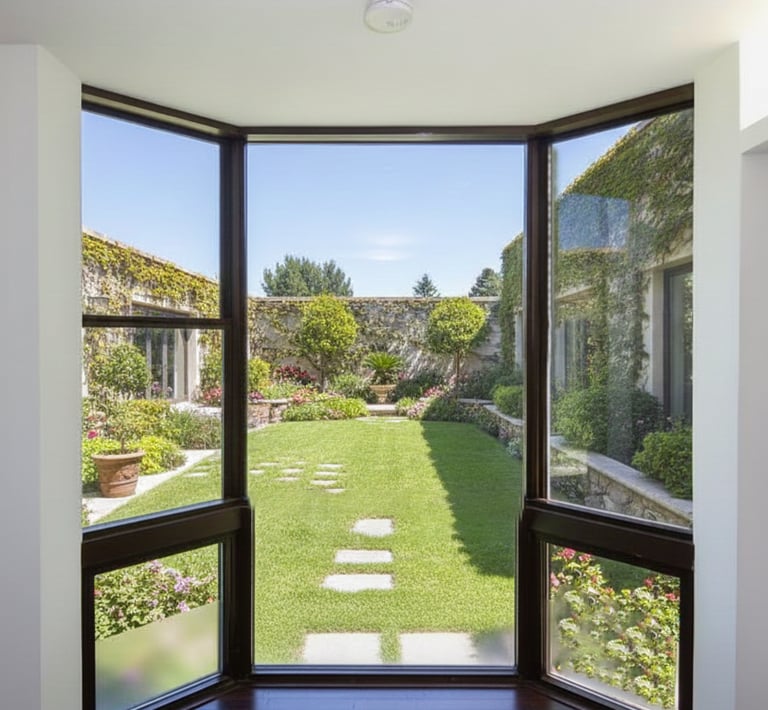

Multi-Angle Daylight & Views

Structural & Thermal Performance

Reinforced thermally broken aluminium profiles and dedicated load-bearing supports ensure the projecting structure and large glass panels remain structurally safe while delivering consistent thermal performance.

The multi-panel configuration brings daylight from multiple angles and widens the field of view, delivering brighter interiors and a more immersive connection to the outdoors.

Types

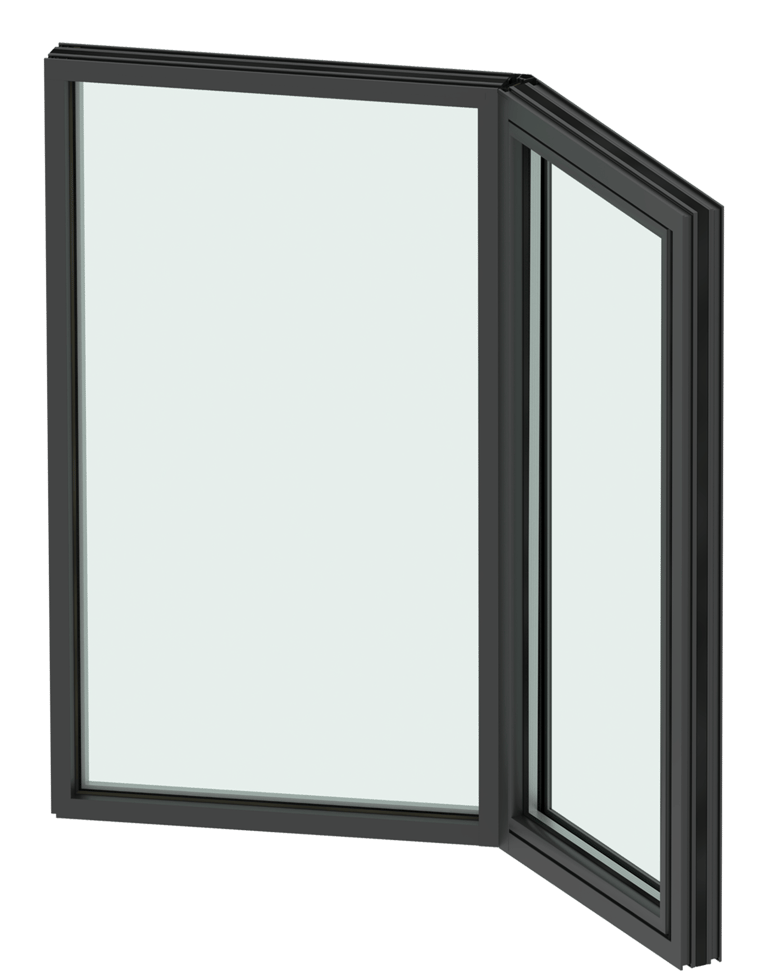

BW120

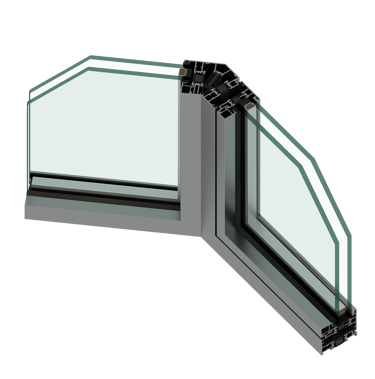

Dedicated angled profiles (such as 30° or 45°) connect the central and side units, transferring wind and glass loads from the projecting bay back into the main frame for improved corner stability. The profiles maintain a continuous thermal break and sealing system, preventing thermal bridging while ensuring air and water performance.

Frame Colors

Aluminum frames come in various colors and finishes, seamlessly matching any design. Powder-coated and anodized surfaces ensure lasting aesthetics and low

Double glazing can withstand greater wind pressure in high-rise apartment buildings, ensuring safety and stability while effectively reducing external noise for a quiet living environment.

Glazing Options

Triple glazing is widely used in buildings located in cold or noisy environments. Compared to double glazing, it offers better insulation, energy efficiency, and soundproofing. It helps reduce heating and cooling costs and creates a quieter, more comfortable indoor space.

Double Glazing

Triple Glazing

Screening Options

We offer a wide range of insect screen solutions including vertical roller, horizontal sliding, pleated, and framed types—each tailored to suit different spaces and usage needs. Whether for bedroom or kitchen windows, or large balcony and patio doorways, our screens provide both functionality and aesthetic appeal.

Case
