OUTWARD CASEMENT
WINDOW SYSTEM

Features

Upgraded anti-prying technology: The clamping locking system + backlocking point are adopted, and the anti-prying ability up to the EU RC2 safety level

01 Sealing

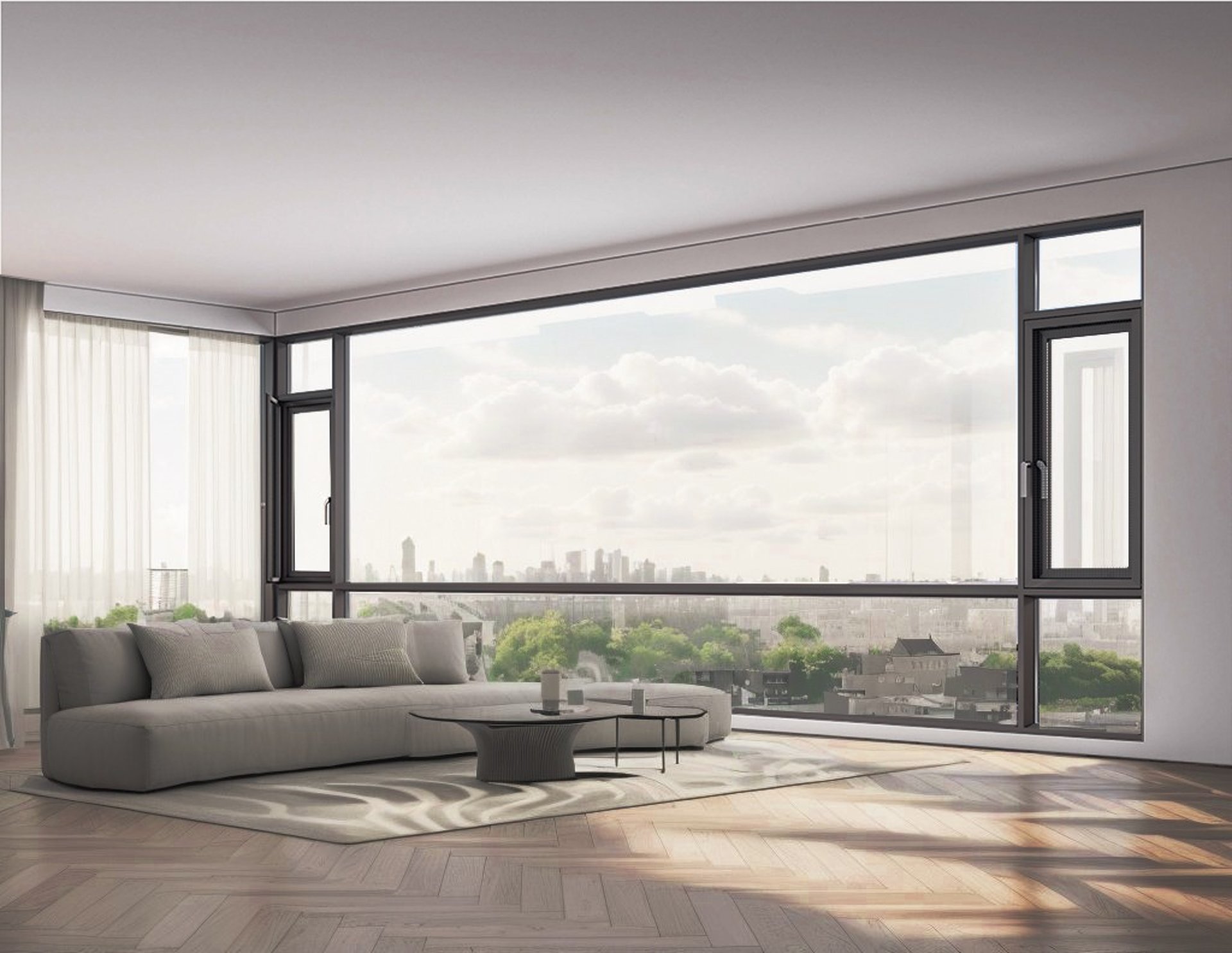

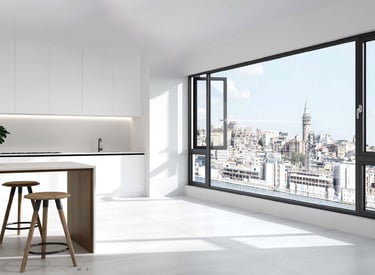

Upgraded viewing experience： Narrow frame design, flush frame sash design for indoor and outdoor use, simple and neat lines, simple and flat facade effect, creating an ultimate viewing experience.

02 Drainage

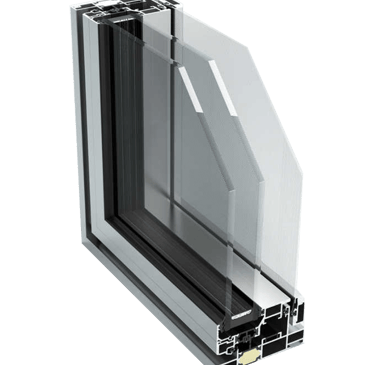

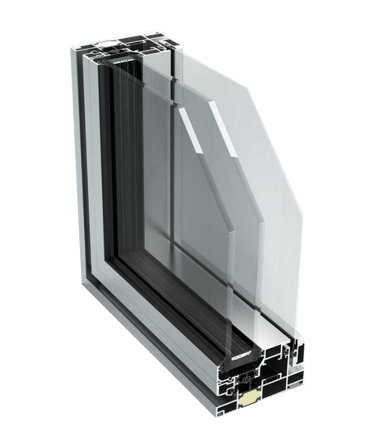

Upgraded sealing performance： Three layers of sealing processes by adhesive tape and anti-shrinkage clamping design of the adhesive strip double the sealing ability of doors and windows, making it higher and more stable.

03 Operation

04 Durable

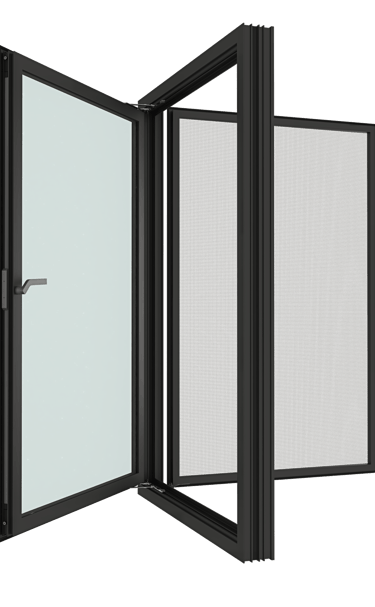

Upgraded integrated window and screen:

High strength integrated screen windows are sealed with a press fit full circle, providing excellent mosquito and insect resistance. It is characterized by safety, reliability and beauty.

05 Safety

Hidden locking point and locking bracket:

Aligned smoothly with the profile for unobstructed passage. The locking mechanism ensures the door's safety when closed.

06 Diversification

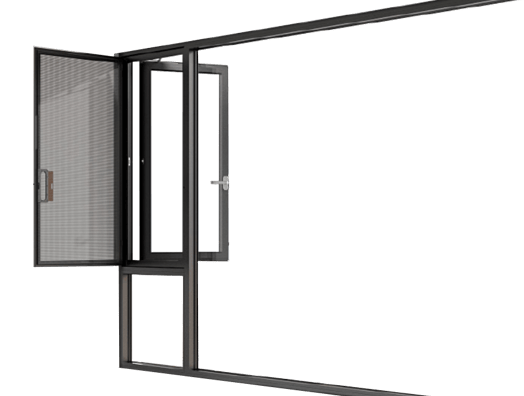

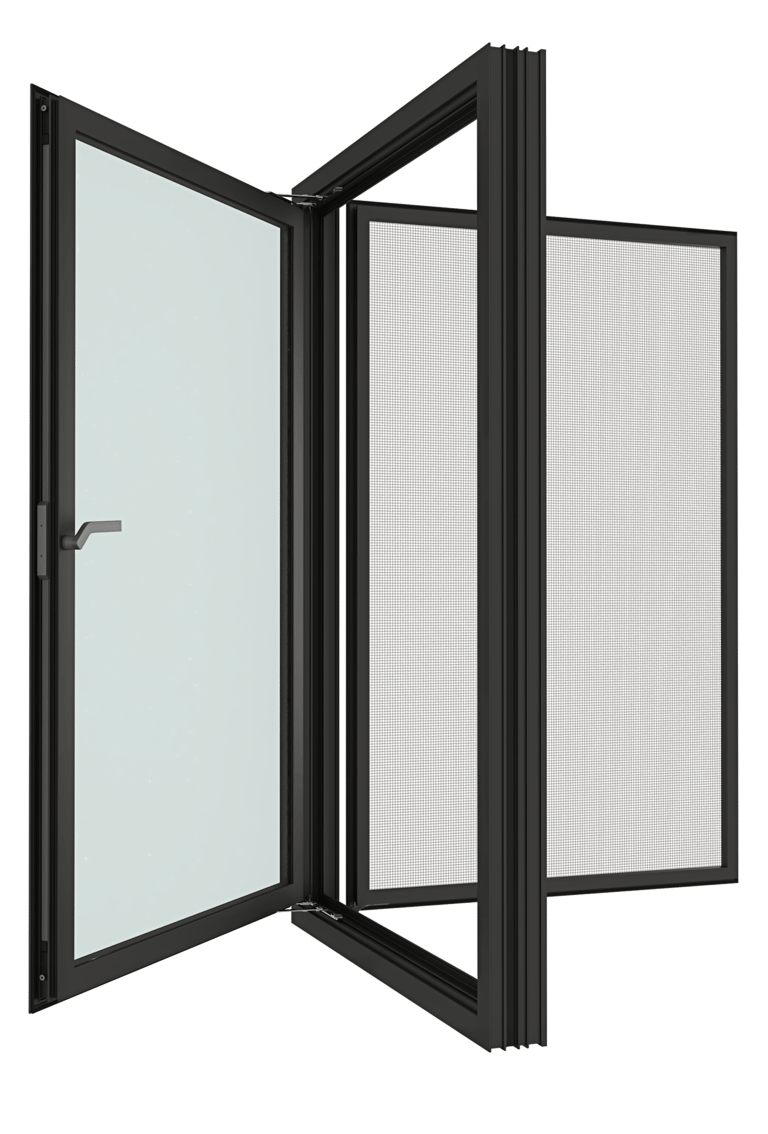

Practical screen window system:

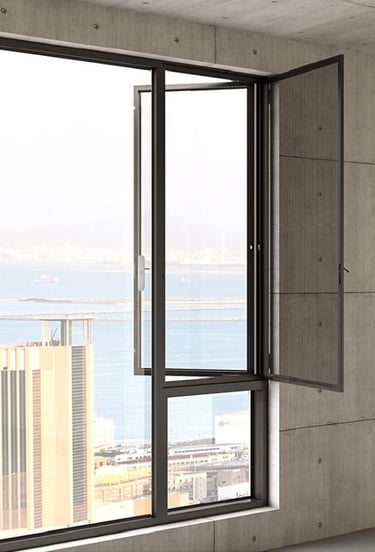

The systematic structural design of screen window glass guardrail takes into account mosquito prevention and safety performance, multiple protections, and high practicality. The inward opening design of the screen sash facilitates cleaning and mainte­nance.

Configurations

Available in a range of configurations, custom made and installed to your specification

OCW01

OCW02

OCW03

OCW04

OCW05

OCW06

Product Parameters

Opening Sash Size & Weight

Width ≤1200mm

Height ≤2100mm

Weight ≤100Kg

Glass thickness ≤48mm

Acoustic performance GB/T 8485

RW up to 36dB

Waterproof performance GB/T 7106

Normal Lower Frame Up to Level 3

HD100B Up to Level 6

Air permeability performance GB/T 7106

Positive pressure Up to Level 8

Negative pressure Up to Level 8

Wind load resistance performance GB/T 7106

Standard Edging Up to 1500Pa

Reinforced Edging Up to 5000Pa

Opening Sash Size & Weight

Width ≤1200mm

Height ≤2100mm

Weight ≤100Kg

Glass thickness ≤58mm

Acoustic performance GB/T 8485

RW up to 37dB

Waterproof performance GB/T 7106

Normal Lower Frame Up to Level 3

HD100B Up to Level 6

Air permeability performance GB/T 7106

Positive pressure Up to Level 8

Negative pressure Up to Level 8

Wind load resistance performance GB/T 7106

Standard Edging Up to 1500Pa

Reinforced Edging Up to 5000Pa

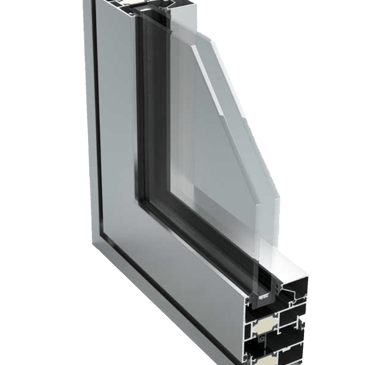

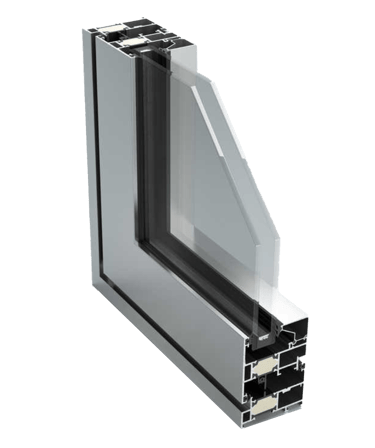

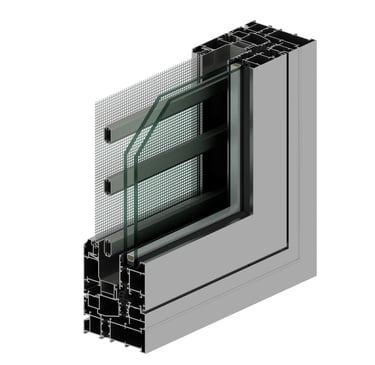

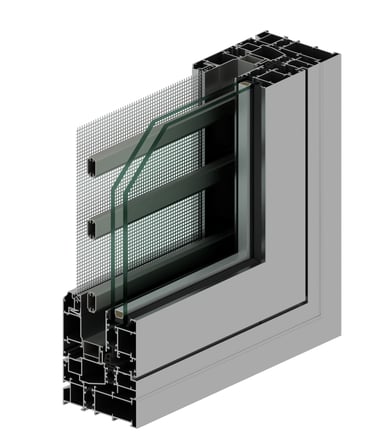

OPW50

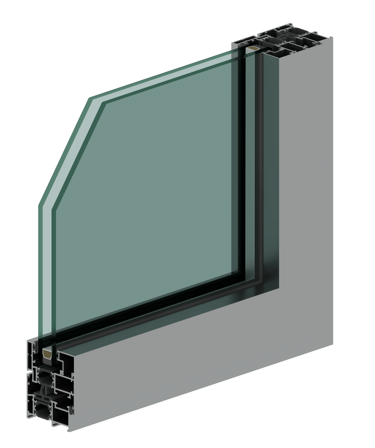

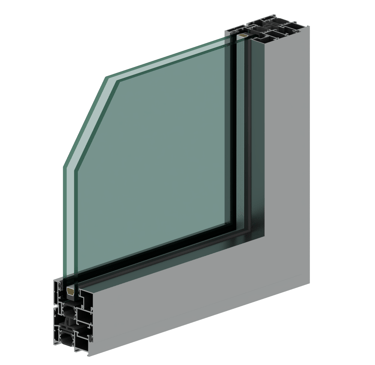

OPW65

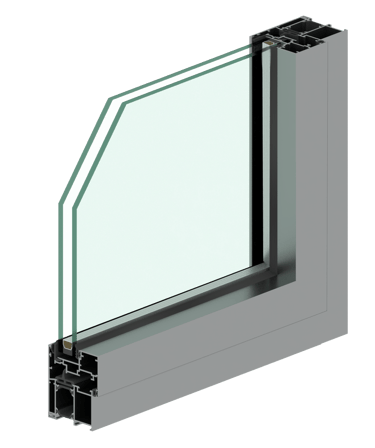

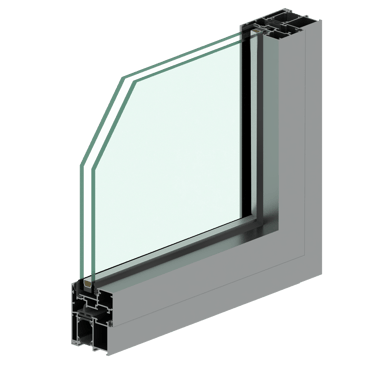

OPW55

Opening Sash Size & Weight

Width ≤1200mm

Height ≤2100mm

Weight ≤100Kg

Glass thickness ≤58mm

Acoustic performance GB/T 8485

RW up to 36dB

Waterproof performance GB/T 7106

Normal Lower Frame Up to Level 3

HD100B Up to Level 6

Air permeability performance GB/T 7106

Positive pressure Up to Level 8

Negative pressure Up to Level 8

Wind load resistance performance GB/T 7106

Standard Edging Up to 1500Pa

Reinforced Edging Up to 5000Pa

Glass Options

Energy Efficiency

The type of glass in windows and doors significantly impacts energy efficiency and comfort. Selecting the right glass can reduce heating and cooling costs while enhancing livability.

Safety & Security

Choosing the right glass reduces injury risks, resists breakage, and deters intruders, enhancing protection for your family.

Acoustic Glass

Selecting the right acoustic glass effectively reduces noise disturbance and enhances living comfort.

Privacy Glass

Choosing the right privacy glass enhances personal space and prevents unwanted visibility, ensuring comfort and security.

Hardware System

Outward Opening window hardware system 01

Outward Opening window hardware system 02

Outward Opening window hardware system 03

Bi-Directional Spindle Drive Gearbox

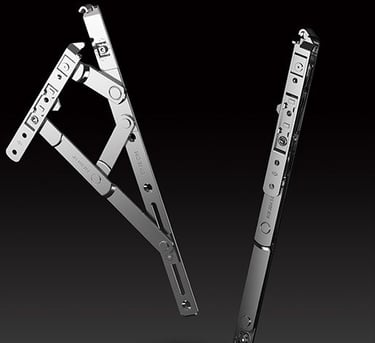

Friction Hinge-C-Groove

Safety Catch Hardware

Hardware Detail

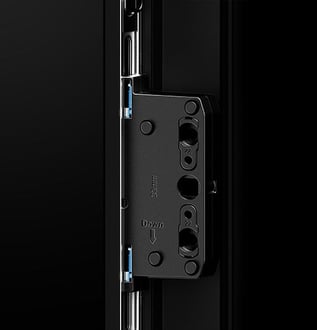

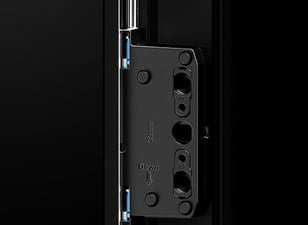

High-quality plate + nano-black lock body, silent gear transmission structure, various specifications maximum extension of anti-pull deviation. The output distance is 12.6mm, the transmission stroke is 18mm, the clamping is fixed, and the cycle test is up to 30,000 times.

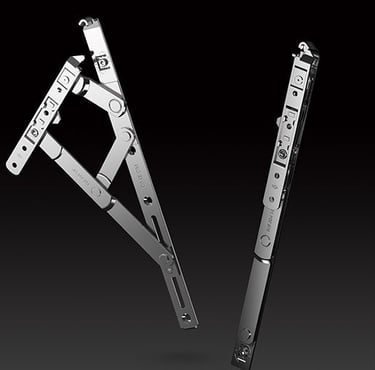

Made from high-quality 304 stainless steel, with a maximum thickness up to 4 mm; materials are strong and reliable for bearing heavy loads. Fast, clamp-on installation. Pre-installed clasps increase the contact area between the hinge and the frame sash and reduce the lateral force on the screws. This extends the screws' service life and their ability to resist overloading. It also improves safety and avoids over-dependence on the load-bearing capability of the screws, such as is the case in traditional hinges.

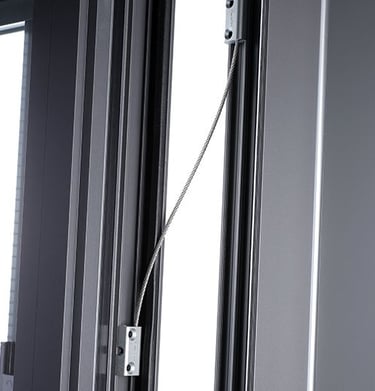

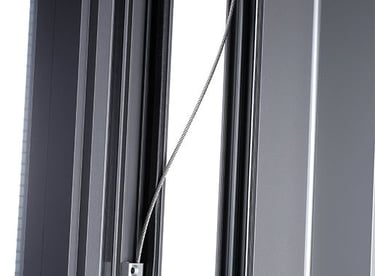

Designers integrate high-strength and high-quality stainless steel wire plus industrial-grade aluminium alloy with a C-groove clamp and fastening screws for safety. The safety catch can carry a load of more than 500 kg; In case of window failure, it will prevent it from falling.

CMECH Milan Handle

Handle system

CMECH Milan Turn Handle

CMECH Koln Handle

HOPO Handle

GBA Handle

Tuff mesh

HD Tuff Mesh

High-Transparency Mesh

Made of metal material, strong anti-theft performance, and high protection level.However, it has relatively low light transmittance, suitable for commercial and residential use.

Made of metal material, strong anti-theft performance, and higher protection level. It improves light transmittance by 30% compared to standard tuff mesh, suitable for projects that balance design and safety.

Made of PET metal material, with average anti-theft and protection capabilities. It offers excellent light transmittance and can be used for retractable screens, suitable for design-oriented projects.

Screening Options

Mesh options

Frame options

Can be stretched and paired with high-transparency mesh to provide an unobstructed view.

Retractable

Compatible with tuff mesh or HD tuff mesh, significantly enhancing safety and anti-theft performance.

Frame

Case
