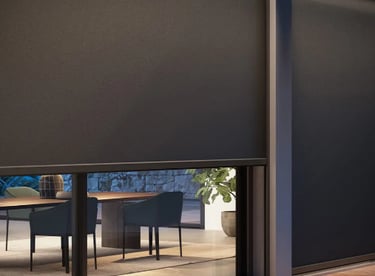

Cassette Screens System

Width min 80 cm,max 400 cm

Height min 100 cm,max 340 cm(According to the fabric)

Winding tube 80 mm

With screen fabric maximum height 450cm

Specifications

Thermally broken aluminum awning system with double glazing and multi-layer sealing, providing excellent thermal insulation, airtightness, water resistance, and durability for residential and commercial use.

High Wind Resistance & Stability

Reinforced guides and track-retention systems ensure stable operation even in strong wind conditions, ideal for coastal and windy areas.

Sun Shading, Thermal Control & Privacy

Durable & Low Maintenance

Made with weather-resistant materials and reliable mechanisms for long-term outdoor performance and minimal maintenance.

Reduces solar heat gain while providing excellent privacy and improved indoor comfort.

Types

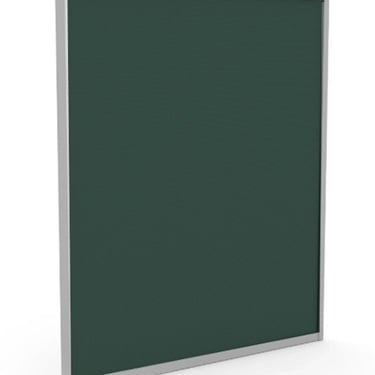

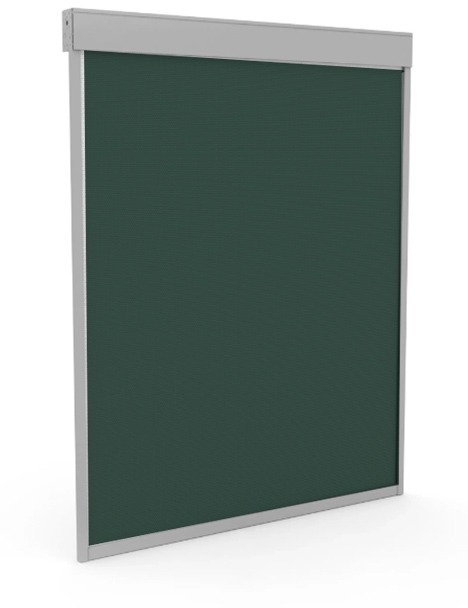

CS-01

The sliding on side guide rails of CS-1 ensures the optimal tensioning of the canvas. The aluminium box may be wall, ceiling or niche installed and allows for the integration of the solar motor which doesn’t need power for its operation.

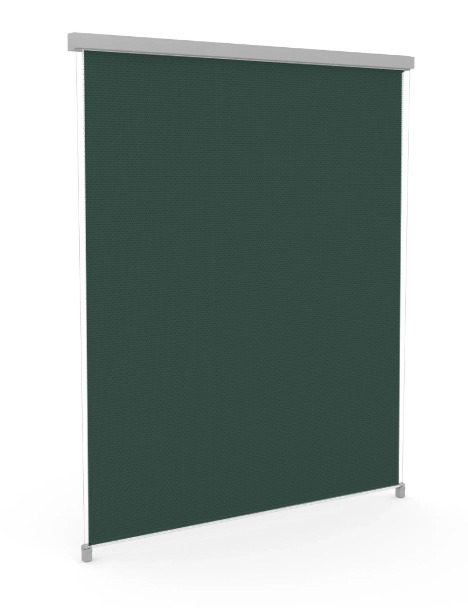

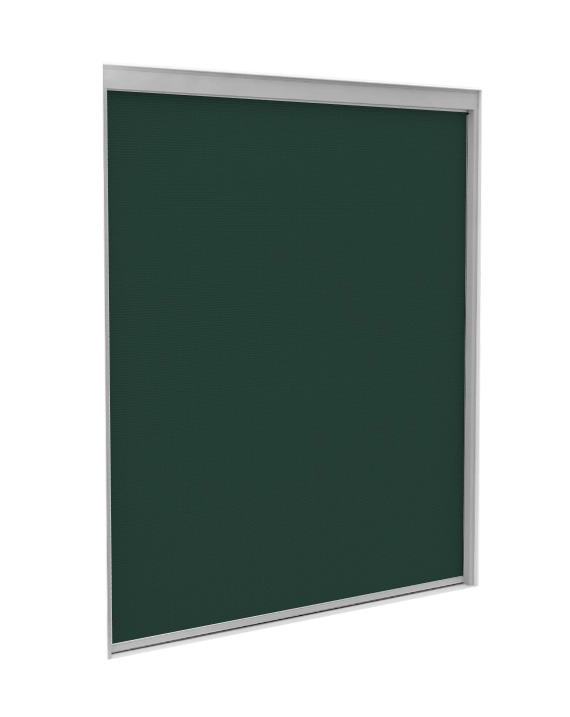

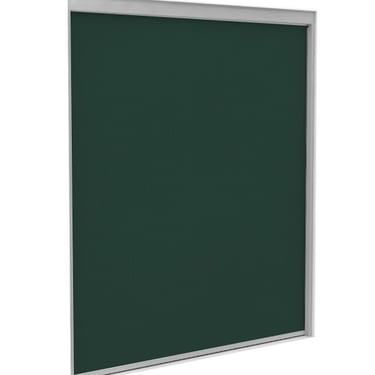

CS-02

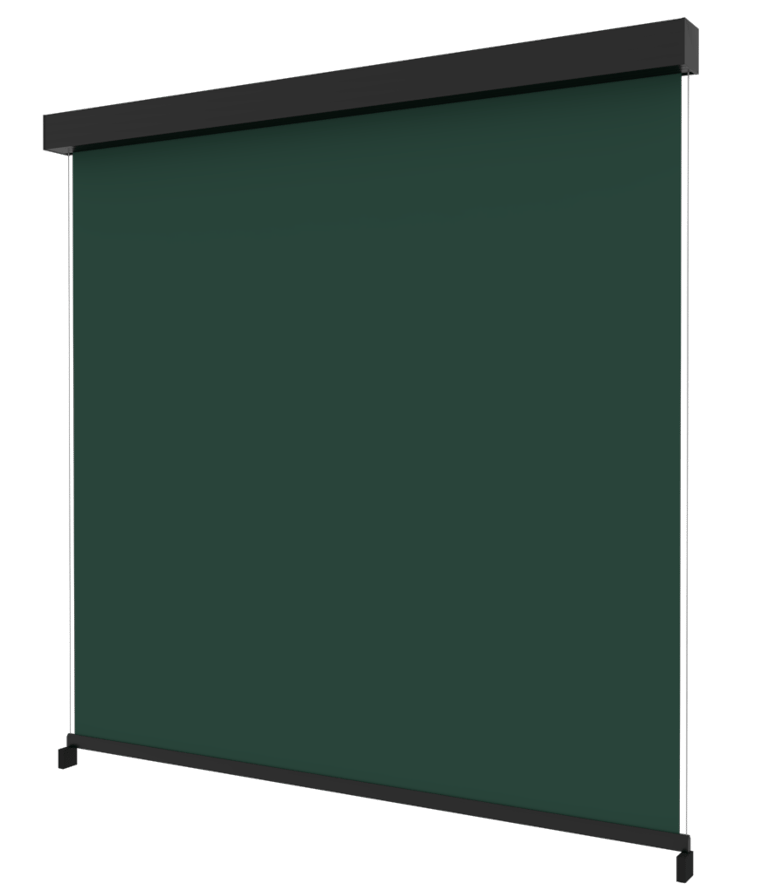

The roller awning CS-2 offers great adaptability thanks to its box than can be either wall or ceiling mounted. The 4 millimeters stainless steel cables allow for a flawless sliding, whilst the Magnetic Lock System protects the canvas in case of wind by disengaging and hooking the front profile. The canvas can reach an extension of up to 3 x 4 meters and can be cutomised with technical or filter fabrics. Its operation can be automated.

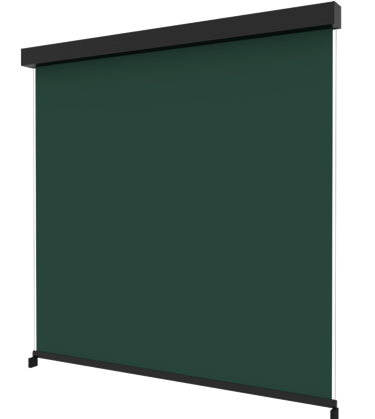

CS-03

With a box available in three sizes, CS-3 can reach a maximum surface of 5 x 3,5 meters and it can be wall, ceiling or niche-mounted. It can be equipped with a solar motor without therefore any need of electrical connection for more sustainable management. The canvas can be customised by choosing from a wide selection of technical, filtering and blockout fabrics.

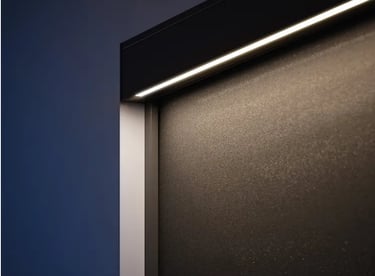

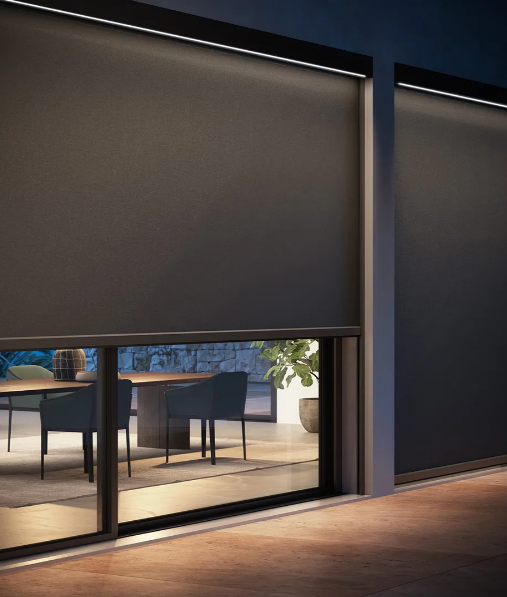

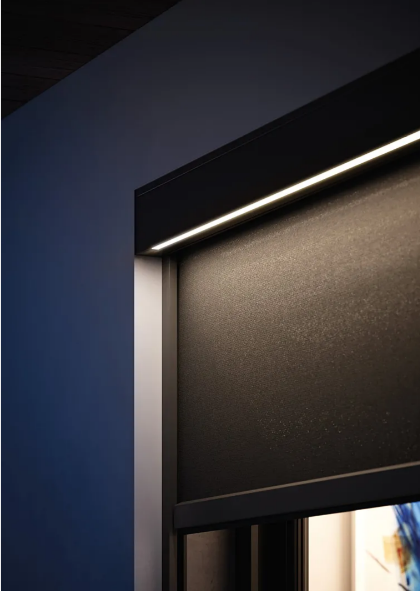

LED lighting options

Integrated LED lighting can be incorporated into the shutter box, delivering ambient illumination without compromising wind resistance or structural performance.

manual operation

Operating an awning with a winding handle is simple. Insert the crank into the awning frame and turn it to extend or retract based on the direction. This manual operation offers reliable sun and all-weather protection.

Hardwired motor

With a remote control, you can easily manage awnings, Shadeplus, light, and heat at the touch of a button. Radio-controlled awnings provide maximum convenience, allowing you to operate them from inside.

radio-controlled motor

The intelligent control system adjusts the awning based on weather conditions such as sun, rain, wind, and vibrations, automatically extending or retracting for protection.

smart home

A smart home awning system offers sun protection and convenience through app or voice control. It optimizes energy use and prevents damage by adjusting automatically to the weather.

Covers options

cover qualities

• Highest possible sun protection with UPF 50+

• Self-cleaning effect - water droplets absorb dirt particles and bead off the awning cover

• Certified according to Öko tex standard 100 - free from dyes or chemicals that are hazardous to health

• Bonded awning covers - excellent water, light and heat resistant prolongs the operating life of the fabric cover

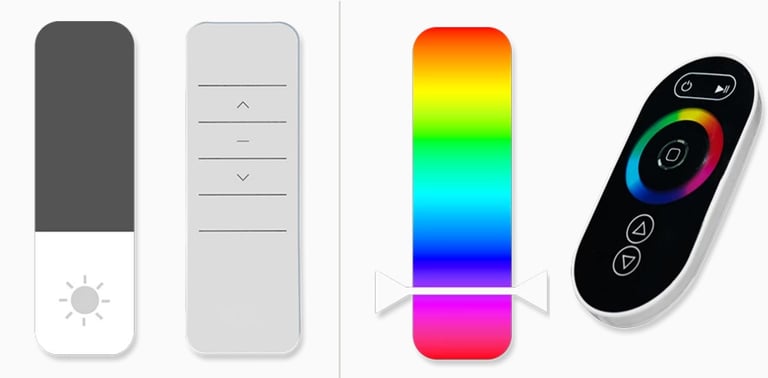

Operation options

Adjustment Features

RGB color tuning and brightness control available.

Case
