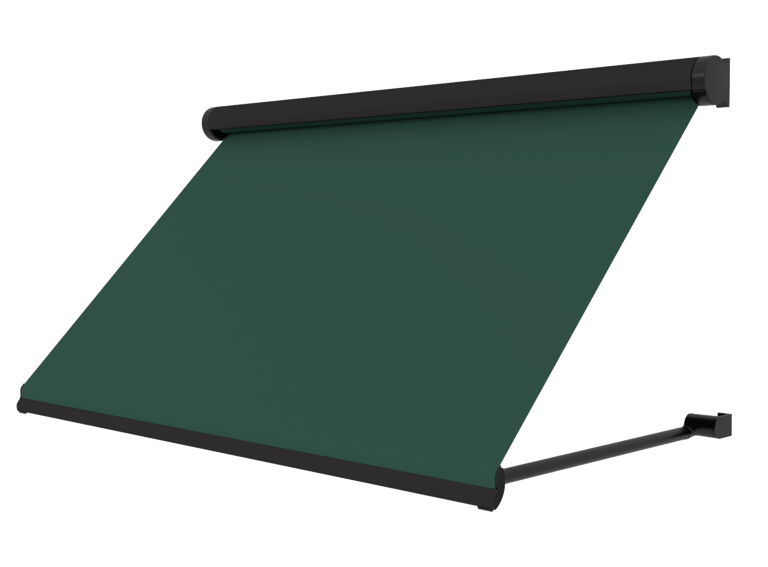

Drop Arm Awning System

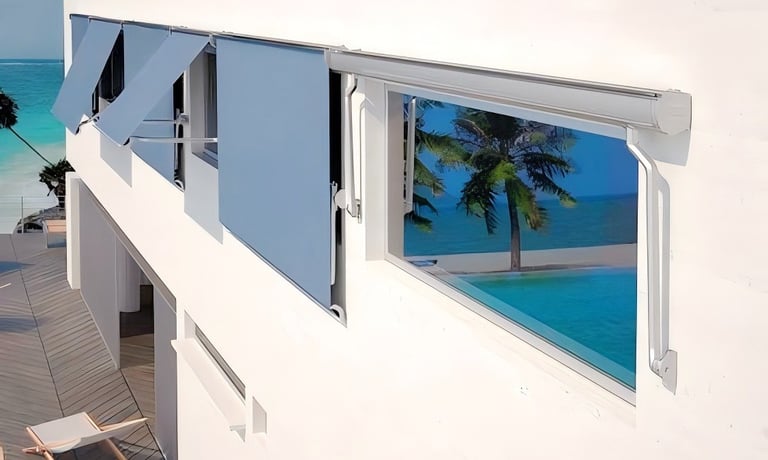

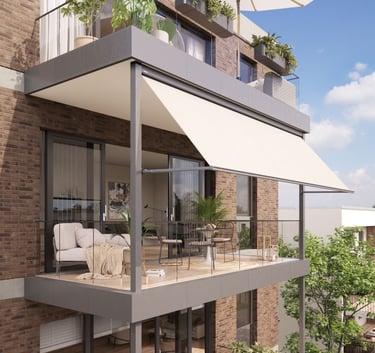

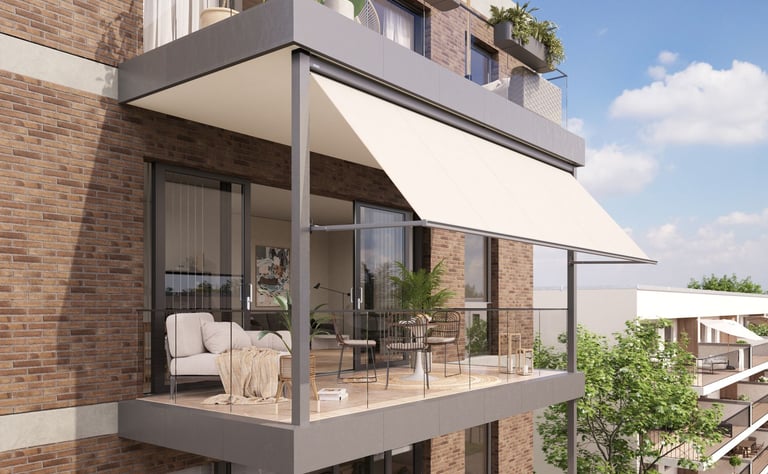

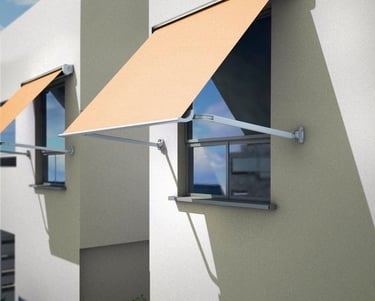

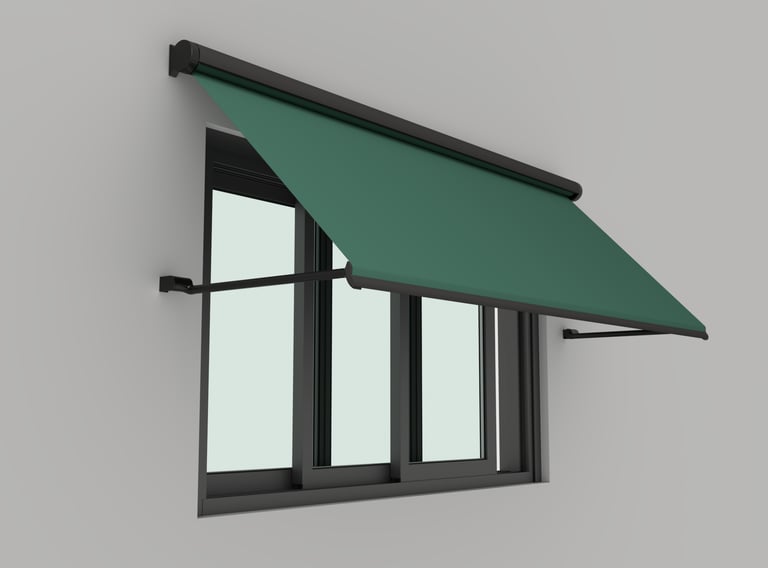

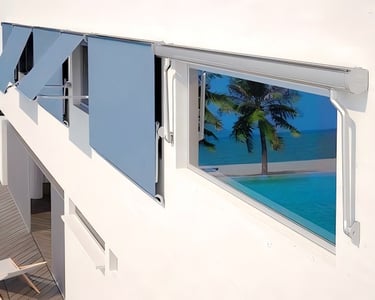

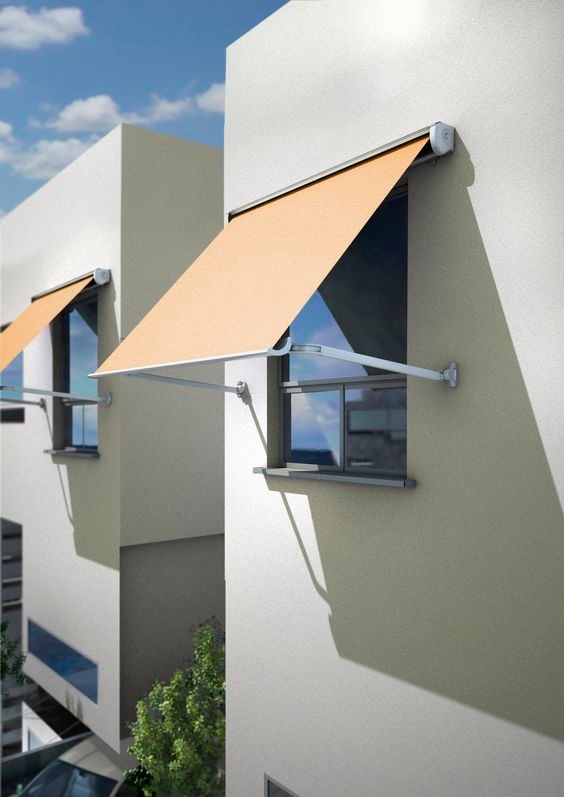

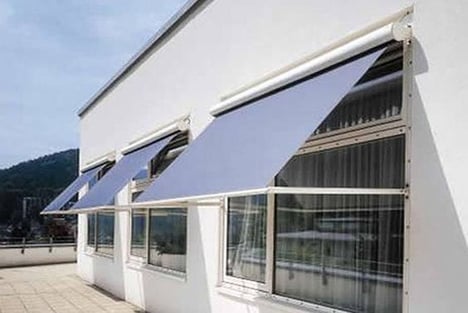

Drop-arm awnings are suitable as sun protection for windows as well as balconies. The use of drop arms with high-quality stainless steel gas springs creates optimal cover tension. The fully enclosing cassette protects the fabric cover perfectly and the small cassette profile provides a discreet look that matches any building.

Maximum Width X Extension 700 x 250 cm

Area to be shaded 17.5 qm

Cassette depth x Height 95 x 95 mm

Cover guide system drop arms 80/100/120/150 cm

Corresponds to wind force 28-37 km/h

Specifications

High-performance Drop Arm Awning with durable aluminum arms and weather-resistant fabric, offering effective sun shading, adjustable angles for ventilation, and long-lasting protection for residential and commercial applications.

Adjustable Shade and Weather Protection

The drop arm design allows for adjustable projection angles, offering optimal sun control while maintaining airflow and outward visibility.

Convenient Operation

Durability and Energy Efficiency

Made with strong aluminum arms and weather-resistant fabrics, this awning is ideal for windows, balconies, and shopfronts, combining durability with visual appeal.

Available in manual or motorized versions, with optional remote control or smart automation for effortless daily use.

Types

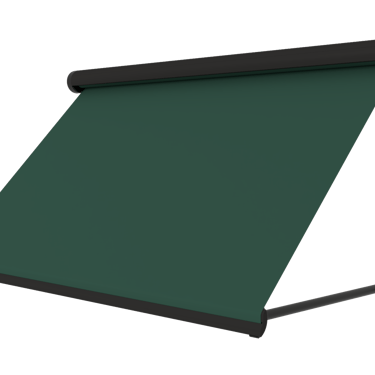

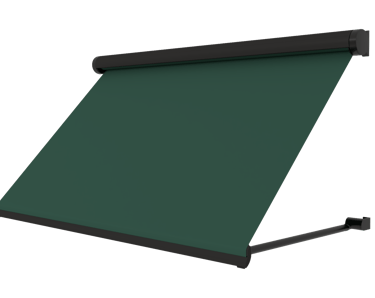

AW-80

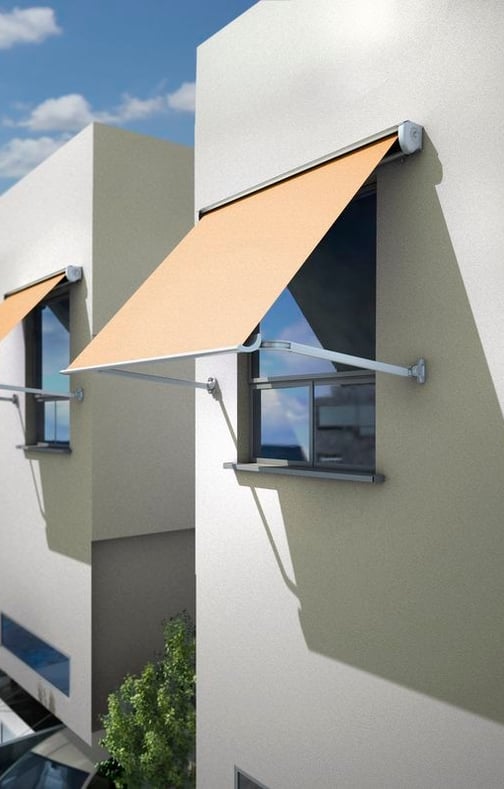

Designed for shading glazed surfaces and outdoors spaces, AW80 Box features a robust frame with spring-loaded arms and can be operated either manually or motorised. Suitable for wall or ceiling fixing, its aluminium box shelters the rolled-up canvas, which can reach up to 4.7 x 1.5 meters and can be customised in an extensive selection of high-performance fabrics.

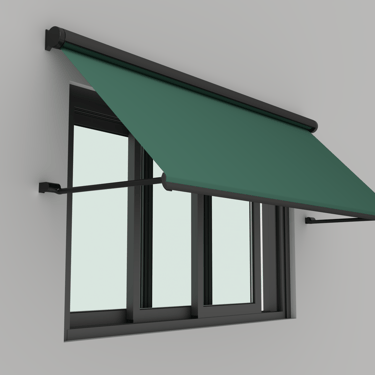

AW-100

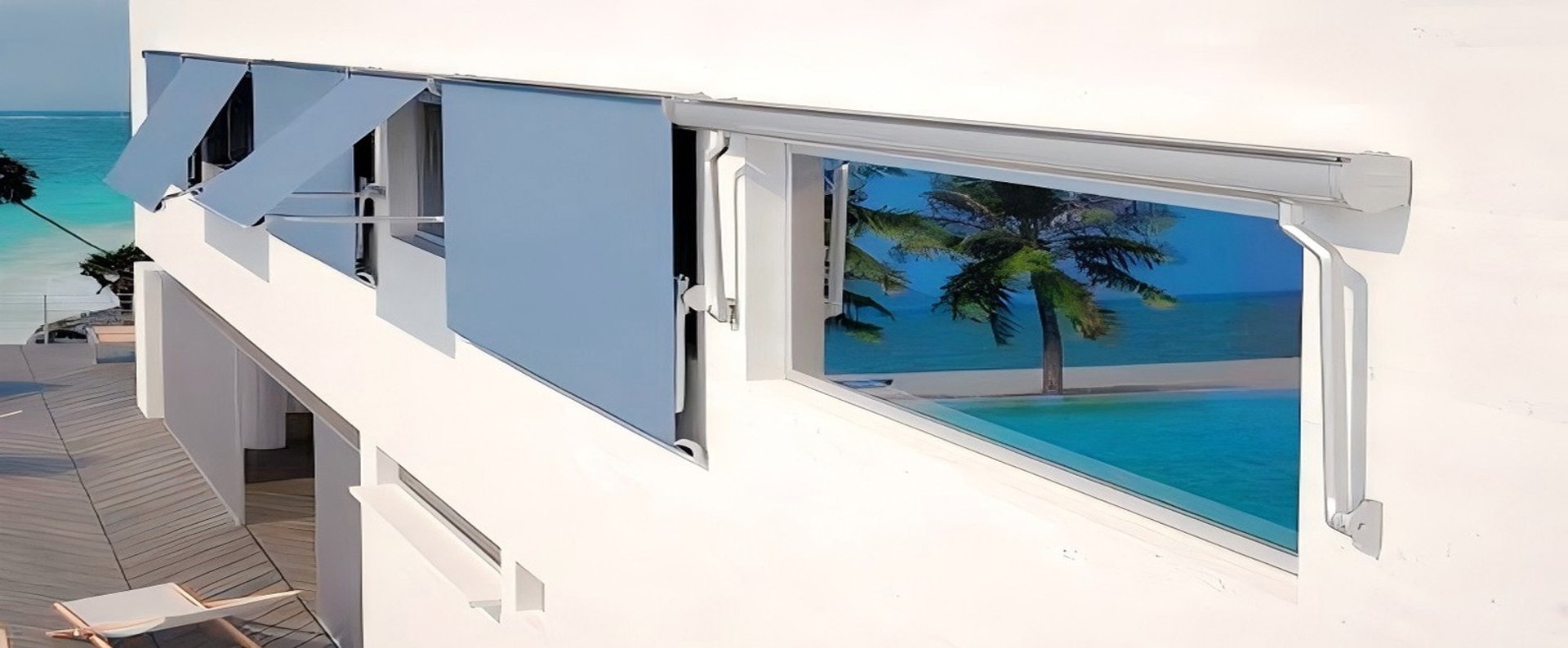

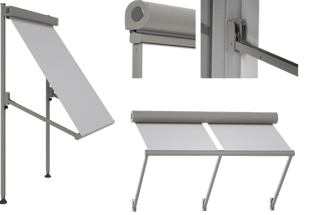

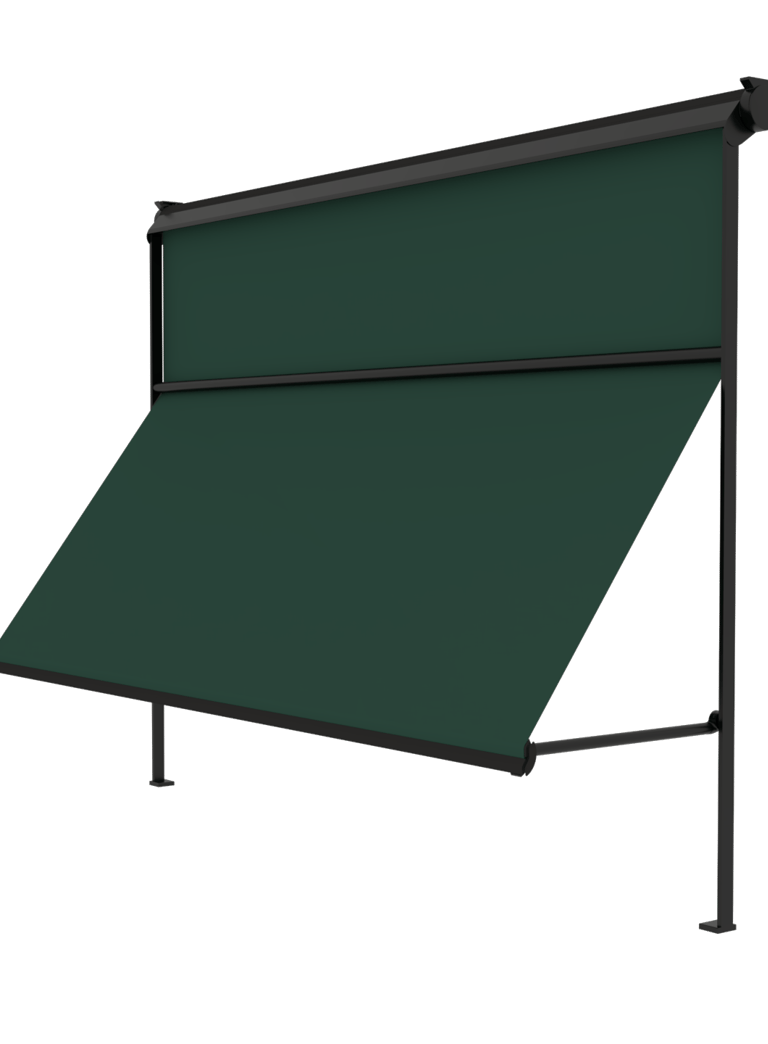

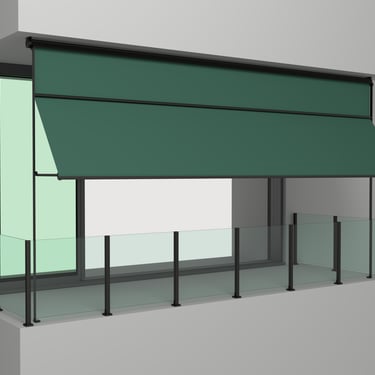

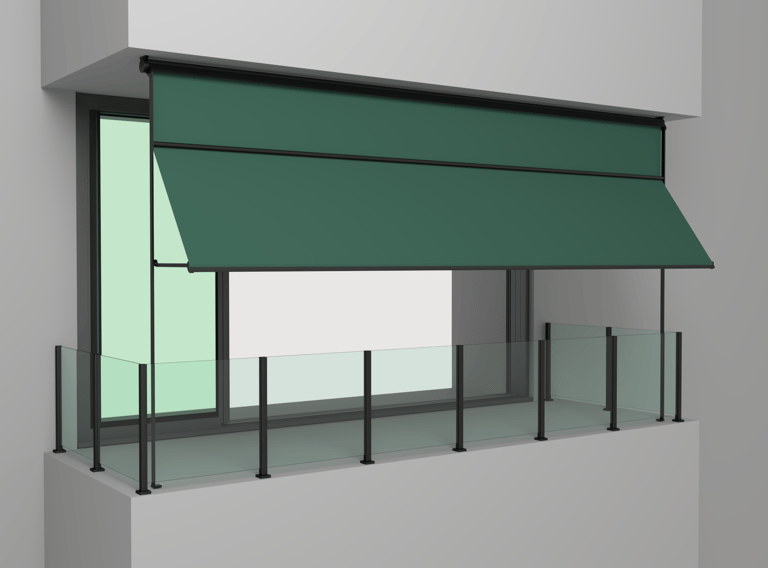

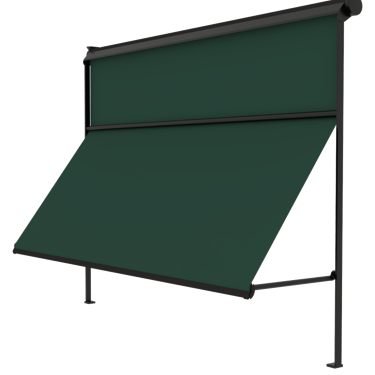

AW100 is the vertical awning with aluminium box, designed either for wall or ceiling fixing, side rails and extendable arms that can be locked in a perpendicular position to the rail. The sliding can be manual or motorised, and the canvas with valance can be chosen from a wide array of technical, filter and blackout options. Maximum dimensions are 4.7 x 2.5 meters.

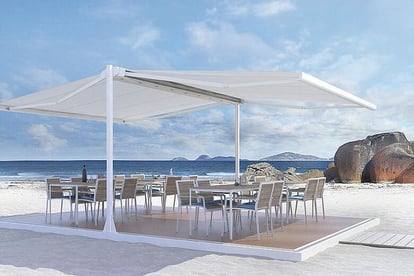

CA-01 awning can reach a maximum extension of 7 x 4 meters. Tha arms operation and the activation of the dimmable lighting turning on can be managed through the home automation systems at your choosing. The aluminium box shelters the canvas when folded and it can be wall or ceiling mounted, with a fixed slope from 10 to 40 degrees, depending on the shading needs.

Deails

AW-80-Wall or ceiling mounted, comes with a structure with spring-loaded arms allowing the vertical awning to be extended up to 160 degrees. The canvas can reach a maximum dimension of 7.05 x 1.5 meters, valance included. A wide selection of technical, filter and blackout fabrics is then available to cutomise the canvas, which can be motor or manual operated.

The roller awning aw-100 provides a modular and complete shading by combining side rails and extendable arms that can be locked in a perpendicular position to the rail. Comes with hood as well as standard valance and can shade areas up to 4.7 x 2.5 meters through technical fabrics of your choosing. Two options for the operation are available: manual or motorised.

manual operation

Operating an awning with a winding handle is simple. Insert the crank into the awning frame and turn it to extend or retract based on the direction. This manual operation offers reliable sun and all-weather protection.

Hardwired motor

With a remote control, you can easily manage awnings, Shadeplus, light, and heat at the touch of a button. Radio-controlled awnings provide maximum convenience, allowing you to operate them from inside.

radio-controlled motor

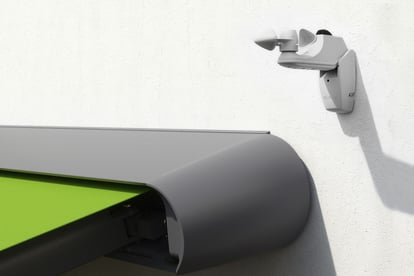

The intelligent control system adjusts the awning based on weather conditions such as sun, rain, wind, and vibrations, automatically extending or retracting for protection.

smart home

A smart home awning system offers sun protection and convenience through app or voice control. It optimizes energy use and prevents damage by adjusting automatically to the weather.

Covers options

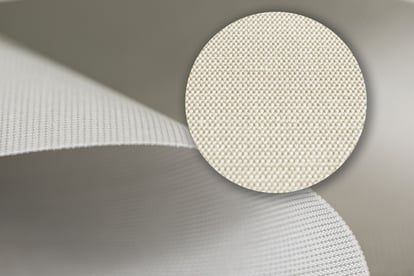

cover qualities

Highest possible sun protection with UPF 50+
Self-cleaning effect - water droplets absorb dirt particles and bead off the awning cover
Certified according to Öko tex standard 100 - free from dyes or chemicals that are hazardous to health
Bonded awning covers - excellent water, light and heat resistant prolongs the operating life of the fabric cover
