FRAMELESS
RAILING SYSTEM

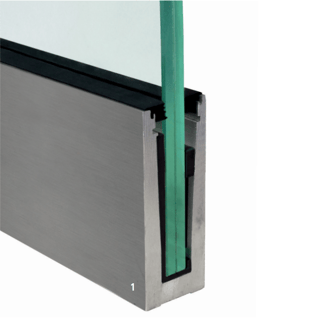

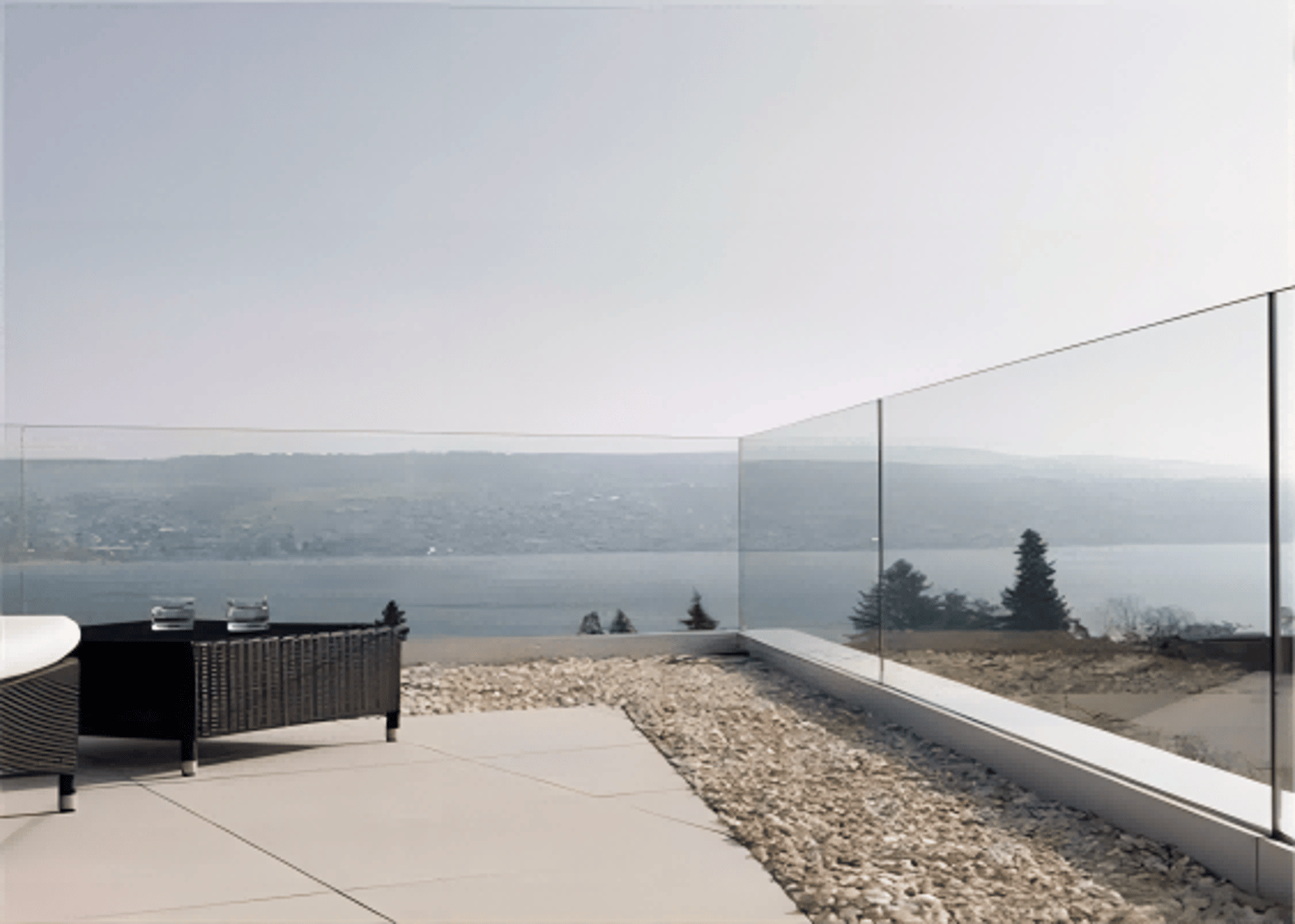

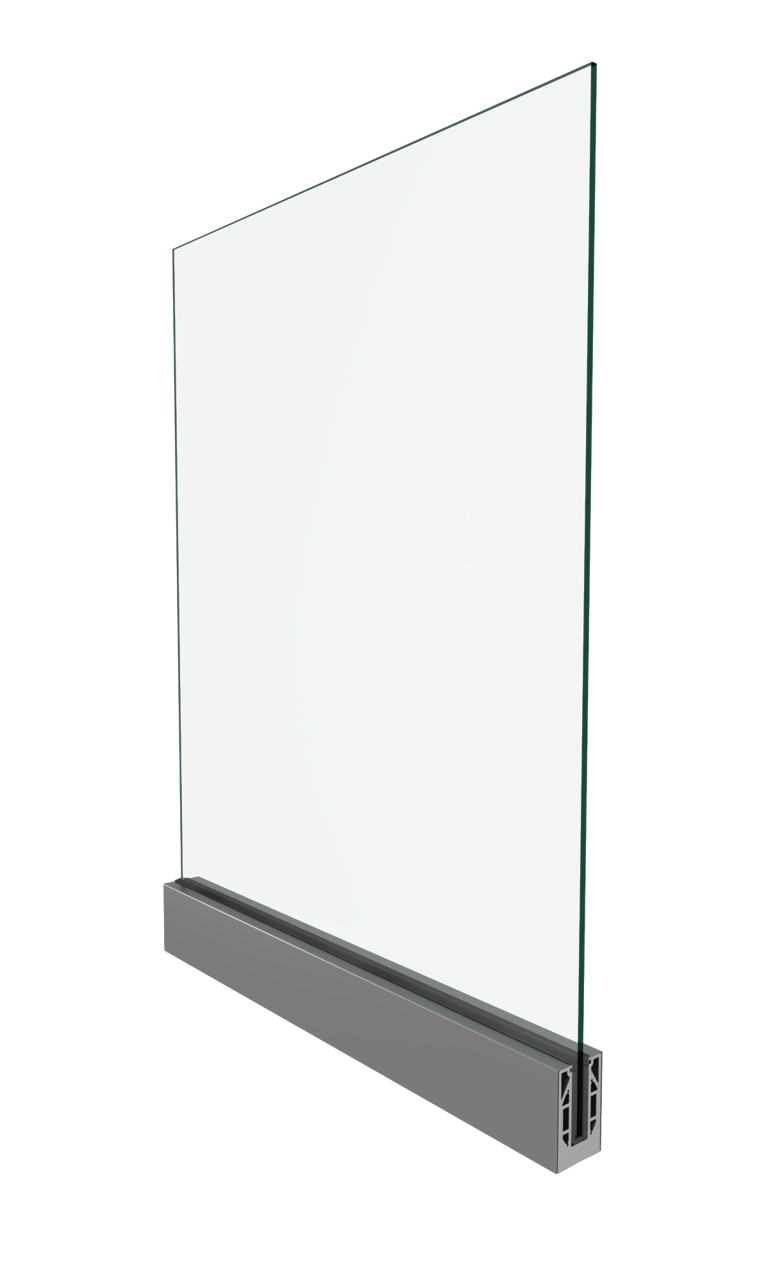

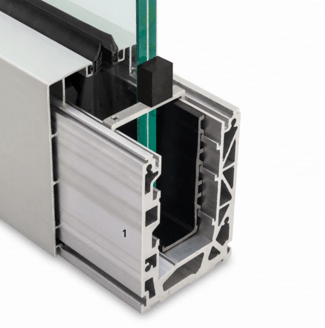

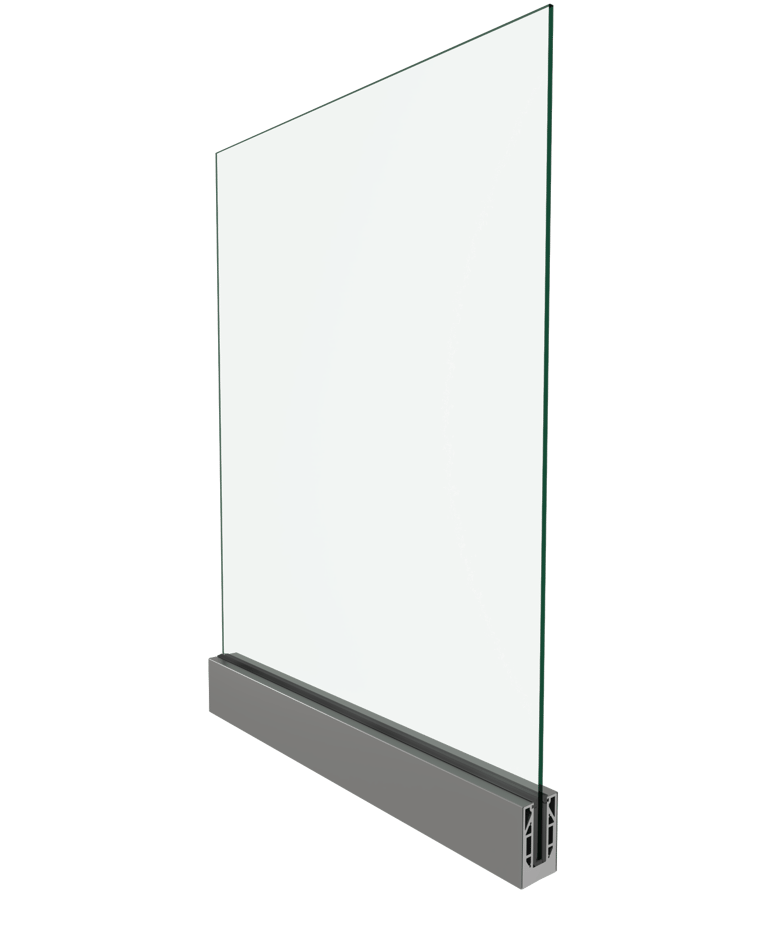

Our Glass Base Rail System is defined by strength, offering simple installation, clean lines, and gorgeous views. The glass base rail system is made up of a slim yet sturdy piece of aluminum metal that runs along the bottom of the railing, providing a sturdy foundation for holding up each glass panel.

Strict Quality Control

Seamless Integration

Supports outward and inward hinged doors, single leaf, and double leaf openings on the same hardware system.

Refined Aesthetics

Features multiple continuous seals without breakpoints, using molded rubber corners and specialized sealing components at the threshold ends.

The rotary hinge allows for three-dimensional adjustments, ensuring easy installation and precise positioning, with even gaps for improved quality.

Threshold Selection

① Flat thresholds. Level with indoor andoutdoor floors, without any obstacles to passage;

② High and lowthresholds. High thresholds with certain water blocking ability, and lowthresholds for easy passage.

Configurations

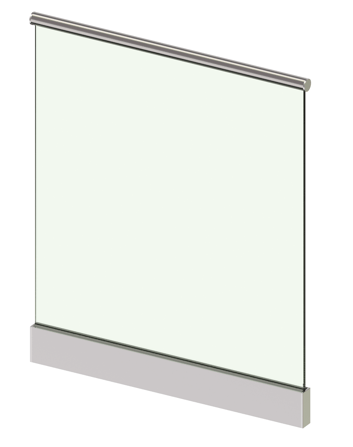

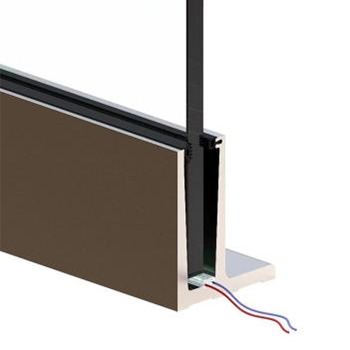

FGR01

Designed for: domestic use and public places

(project load 2,25 kN/m)

Use: inside and outside, also by the sea

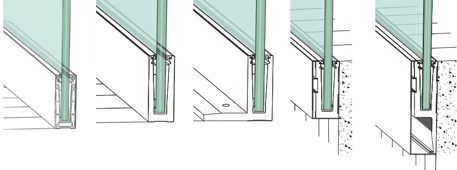

Variations: floor or side mounted

Applications: stairs, balconies and balustrades

Material: aluminum with silver effect

Dimensions: 48 mm x 125 mm

(internal helix channel 110 mm)

Infill: glass

Glass thickness: 12,76-13,52-15-16,76-17,52-

19-20,76-21,52 mm

Upper finish: natural aluminum colour with

silver effect

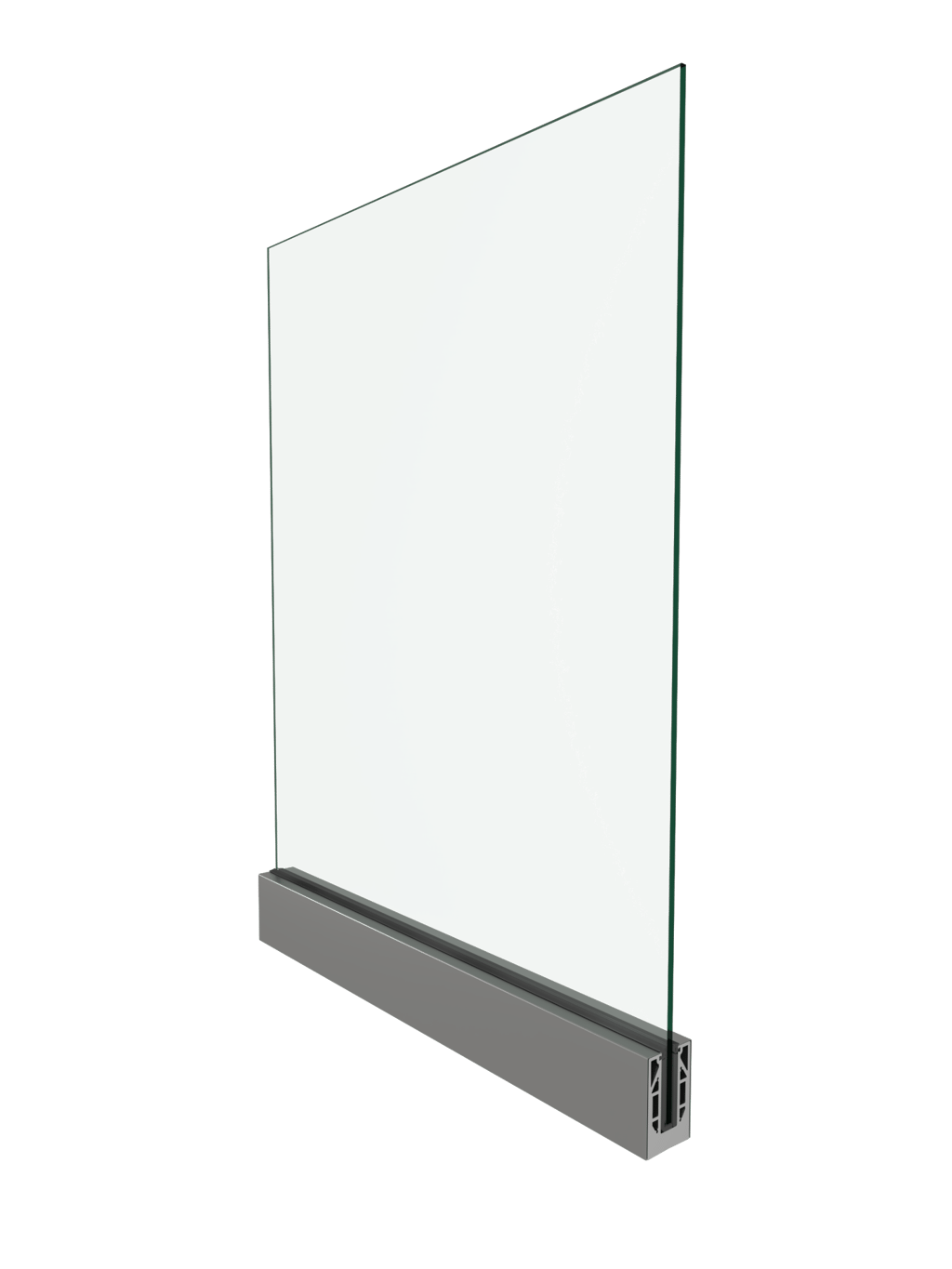

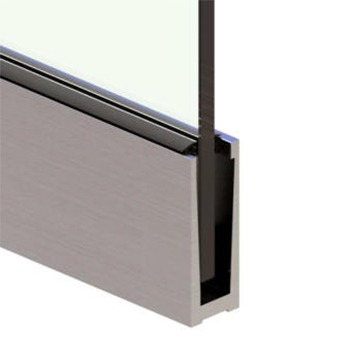

FGR02

Designed for: public places
(project load 3kN/m)
Use: inside and outside, also by the sea
Variations: floor or side mounted
Applications: stairs, balconies and balustrades
Material: aluminum with silver effect
Dimensions: 86 mm x 123 mm
(internal helix channel 98 mm)
Infill: glass
Glass thickness: 15-16,76-17,52-19
20,76-21,52 mm
Upper finish: natural aluminum color
silver effect

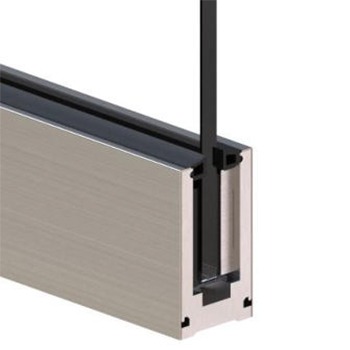

FGR03

Designed for: public places
(project load 3kN/m)
Use: inside and outside, also by the sea
Variations: floor or side mounted
Applications: stairs, balconies and balustrades
Material: aluminum with silver effect
Dimensions: 86 mm x 123 mm
(internal helix channel 98 mm)
Infill: glass
Glass thickness: 15-16,76-17,52-19
20,76-21,52 mm
Upper finish: natural aluminum color
silver effect

Frame Colors

Aluminum frames come in various colors and finishes, seamlessly matching any design. Powder-coated and anodized surfaces ensure lasting aesthetics and low

Glass Options

Tempered Glass

Characteristics：

Formation of a compressive stress layer on the glass surface, enhancing mechanical strength and thermal shock resistance.

Impact strength is 5 to 10 times greater than that of ordinary glass.

Bending strength is 3 to 5 times that of ordinary glass.

Load-bearing capacity is 3 to 5 times greater than that of standard glass.

As a type of safety glass, fully tempered glass shatters into small, blunt-edged pieces, minimizing the risk of injury.

Laminated Glass

Safety: Provides additional safety by preventing shards from scattering upon breaking, reducing the risk of injury. Laminated glass retains shards on the interlayer, while ordinary glass shatters into pieces.

Sound Insulation: Excellent sound insulation, typically reducing the sound transmission class (STC) rating to about 30-40 decibels, compared to approximately 25 decibels for ordinary glass.

UV Protection: Laminated glass blocks about 99% of ultraviolet rays, while ordinary glass typically blocks around 25%.

Impact Resistance: The interlayer enhances the structural strength of the glass, making its impact resistance 2-5 times greater than that of standard single-pane glass.
