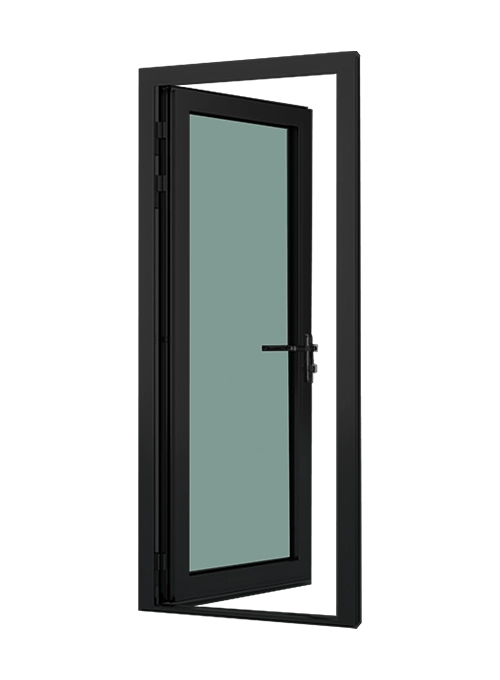

HINGED
DOOR SYSTEM

Maximum Size Of Sash Width ≤1000mm / Height ≤2500mm

Thickness Of Main Profile 2.2mm

Glass Clamping Thicknesss 48mm

Load Bearing of Sash ＜120kg

Water Penetration 720Pa

Air Leakage

Positive pressure Up to Level 8 / Negative pressure Up to Level 8

Structural Test Pressure ＜4900Pa

U-Factor ≥0.26 Btu/(hr x ft² x ºF)

Specifications

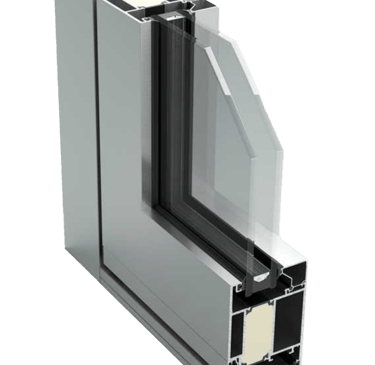

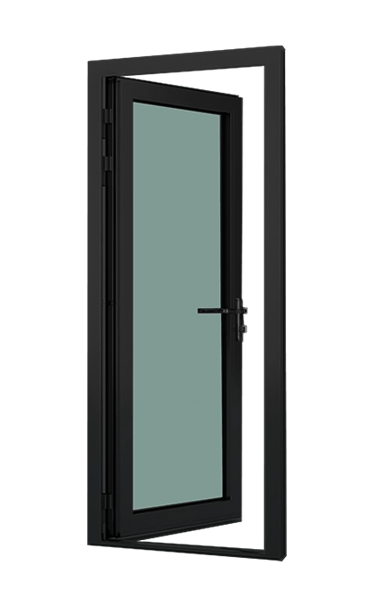

Thermally broken aluminum Hinged Door system with double glazing and multi-layer sealing, providing excellent thermal insulation, airtightness, water resistance, and durability for residential and commercial use.

Craftsmanship

Flexibility

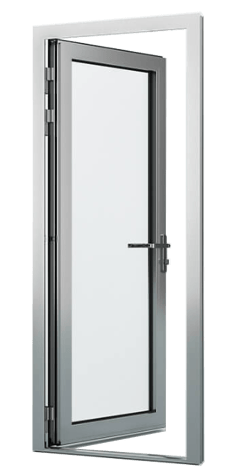

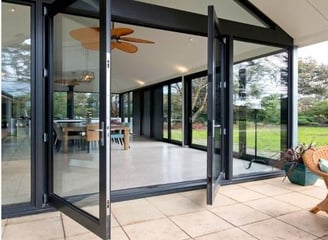

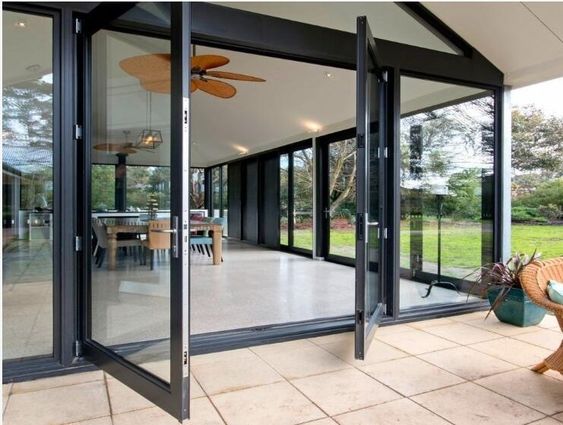

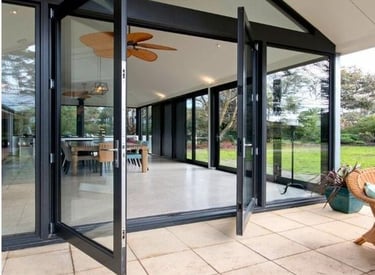

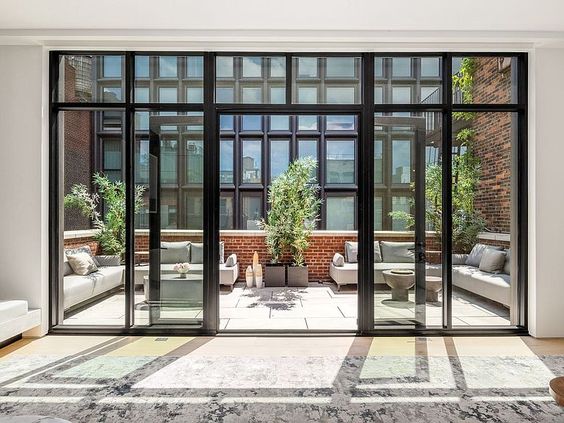

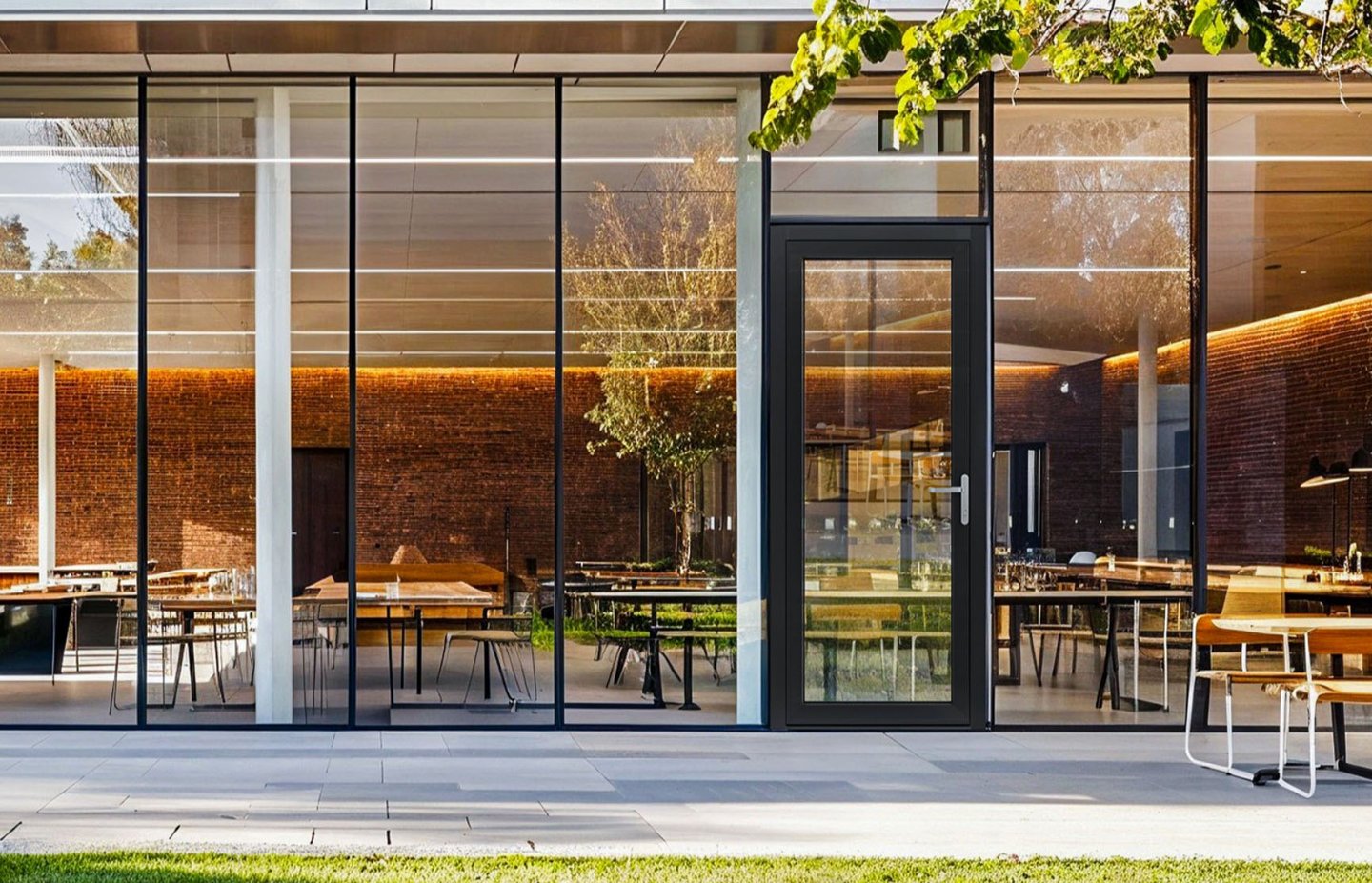

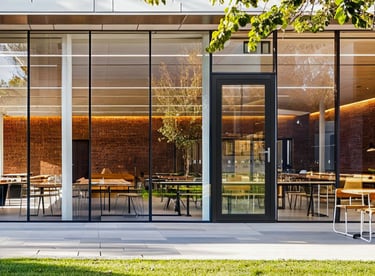

Supports outward and inward hinged doors, single leaf, and double leaf openings on the same hardware system.

Sealing Performance

Features multiple continuous seals without breakpoints, using molded rubber corners and specialized sealing components at the threshold ends.

The rotary hinge allows for three-dimensional adjustments, ensuring easy installation and precise positioning, with even gaps for improved quality.

Threshold Selection

① Flat thresholds. Level with indoor andoutdoor floors, without any obstacles to passage;

② High and lowthresholds. High thresholds with certain water blocking ability, and lowthresholds for easy passage.

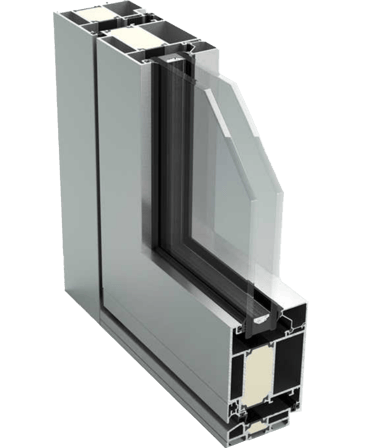

The double glazing system features two glass panes within thermally broken aluminium frames, delivering reliable insulation, reduced heat transfer, and effective noise reduction.

HD70

Frame Options

HD80

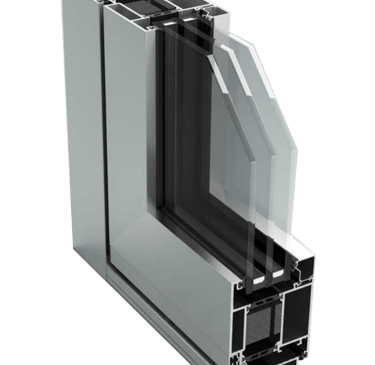

The triple glazing system incorporates three glass panes within reinforced aluminium frames, offering superior thermal insulation, enhanced acoustic performance, and improved energy efficiency for high-performance buildings.

Frame Colors

Aluminum frames come in various colors and finishes, seamlessly matching any design. Powder-coated and anodized surfaces ensure lasting aesthetics and low

Double glazing can withstand greater wind pressure in high-rise apartment buildings, ensuring safety and stability while effectively reducing external noise for a quiet living environment.

Glazing Options

Triple glazing is widely used in buildings located in cold or noisy environments. Compared to double glazing, it offers better insulation, energy efficiency, and soundproofing. It helps reduce heating and cooling costs and creates a quieter, more comfortable indoor space.

Double Glazing

Triple Glazing

Hardware System

Hinged Door hardware system 01

Hinged Door hardware system 02

Hinged Door hardware system 03

Hinged Door hardware system 03

Hinge

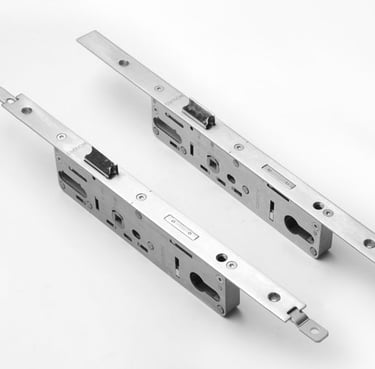

Multi-point Lock

Bi Directional Shootbolt

Hardware Detail

The load-bearing door hinges are created with abrasion-resistant material, available in 120 kg, 140 kg or 180 kg ratings. All door hinges are treated with CMECH's unique surface treatment technology in a variety of colors to match many door profiles. Three-dimensional adjustability allows for precise gap control.

The multi-locking system has been carefully designed to meet stringent safety and security requirements, creating a safe and relaxing home environment.

The penetrating groove design is firm and stable, preventing the handle from shaking, achieving 450N in the anti-destructive test.

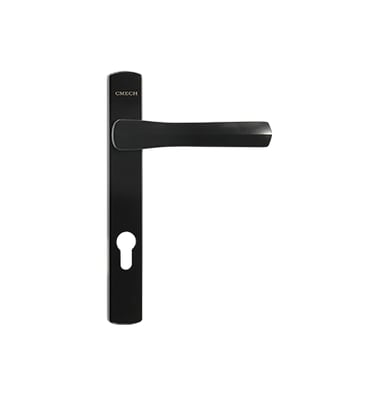

CMECH Berlin Handle

Handle system

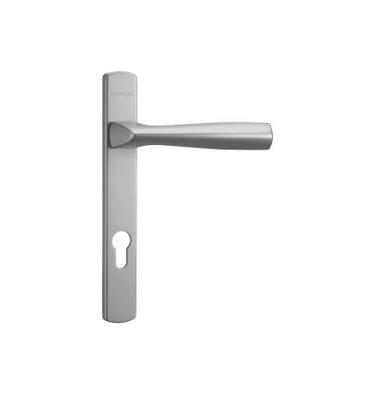

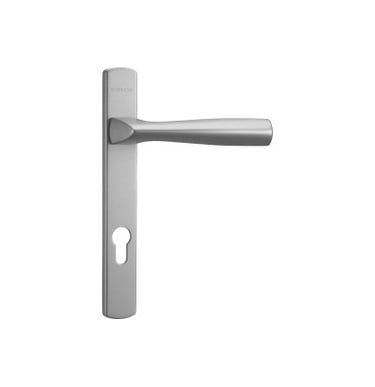

CMECH Spindle Handle

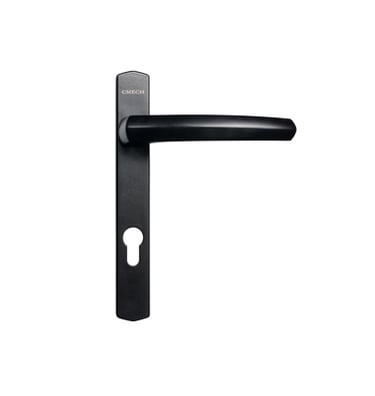

CMECH Koln Handle

CMECH Handle

Screening Options

We offer a wide range of insect screen solutions including vertical roller, horizontal sliding, pleated, and framed types—each tailored to suit different spaces and usage needs. Whether for bedroom or kitchen windows, or large balcony and patio doorways, our screens provide both functionality and aesthetic appeal.
