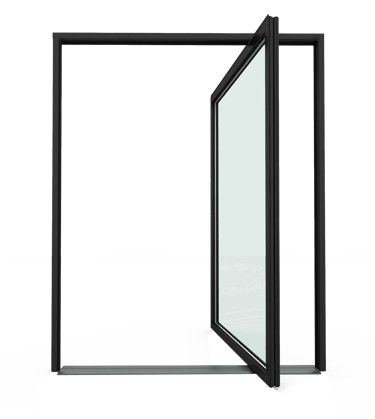

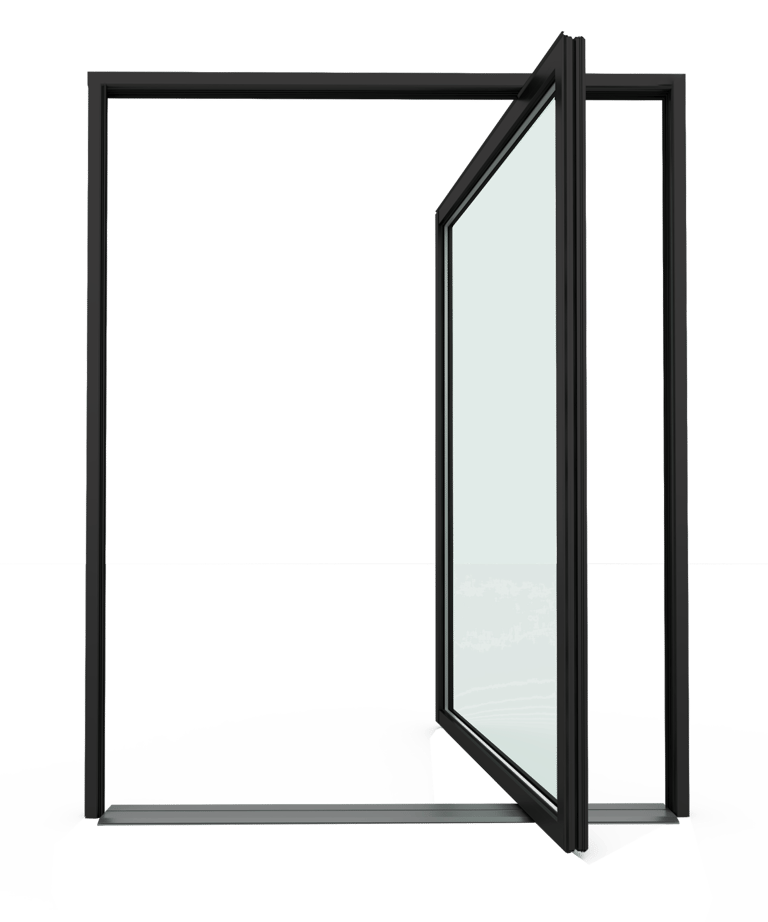

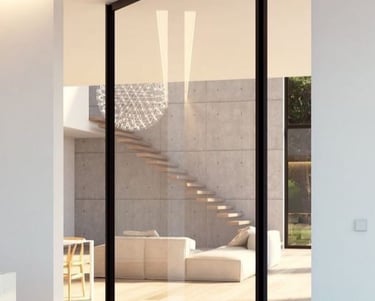

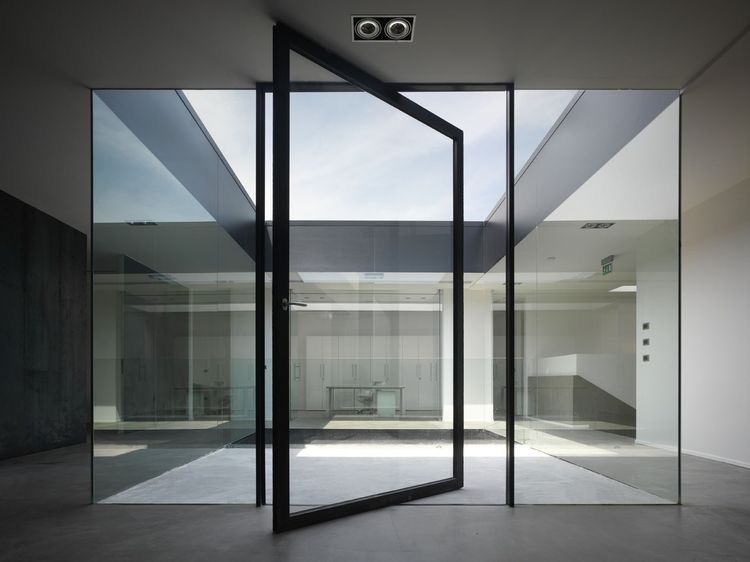

Pivot Door System
Engineered and rigorously tested under adverse environmental conditions, the system delivers outstanding durability, stability, and operational smoothness. Its advanced pivot mechanism supports extra-large door panels, accommodating single-leaf weights of up to 600 kg, making it ideal for high-end residential, commercial, and landmark architectural projects.
Maximum Size Of Sash Width ≤2500mm / Height ≤3500mm
Thickness of Main Profile 2.2mm
Glass Clamping 38mm
Load Bearing of Sash 600kg
Specifications
Pivot Door System with double glazing and multi-layer sealing, providing excellent thermal insulation, airtightness, water resistance, and durability for residential and commercial use.
Automation Ready
Optional motorisation, compatible with home automation systems.
Hidden Security
Water Drainage
Optional rainwater evacuation via a stainless-steel channel integrated into the frame.
Optional concealed alarm contacts for enhanced security.
Types

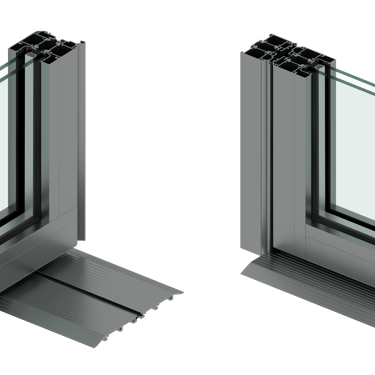

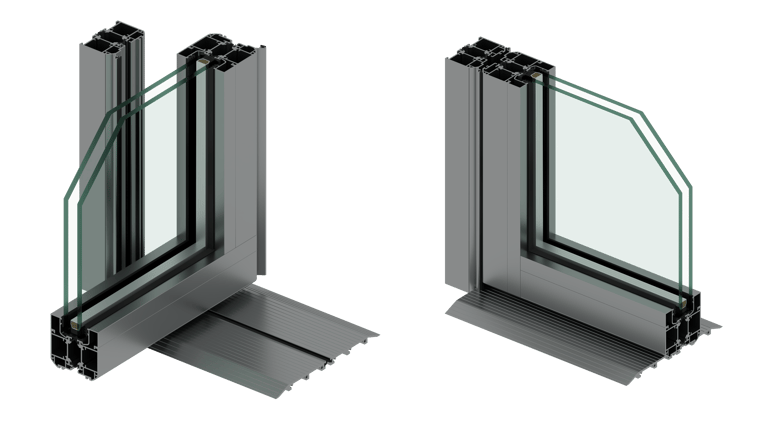

PD90
Heavy-Duty Sections
Reinforced aluminium profiles designed for oversized pivot doors, supporting large panels and high loads.
Large-Scale Capability
Optimised profile geometry to accommodate extra-wide and extra-tall door leaves.
Structural Stability
Enhanced profile depth and internal chambers improve rigidity and resistance to deformation.
Minimal Sightlines
Slim visible sections deliver a clean, minimalist architectural appearance.
Frame Colors
Aluminum frames come in various colors and finishes, seamlessly matching any design. Powder-coated and anodized surfaces ensure lasting aesthetics and low
Double glazing can withstand greater wind pressure in high-rise apartment buildings, ensuring safety and stability while effectively reducing external noise for a quiet living environment.
Glazing Options
Triple glazing is widely used in buildings located in cold or noisy environments. Compared to double glazing, it offers better insulation, energy efficiency, and soundproofing. It helps reduce heating and cooling costs and creates a quieter, more comfortable indoor space.
Double Glazing
Triple Glazing
This pivot provides a 600KG weight capacity to support heavier glass doors commonly used with bottom Door Rails and Patch Fittings.
Base Material: Stainless steel
Maximum Door Clearance: 7/16"
Minimum Door Clearance: 7/16"
Detail

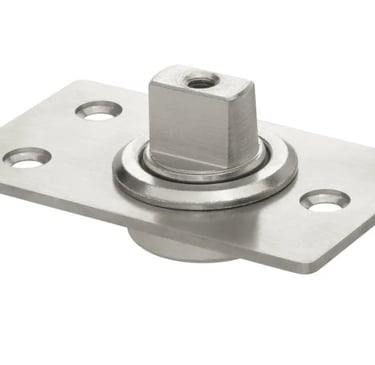

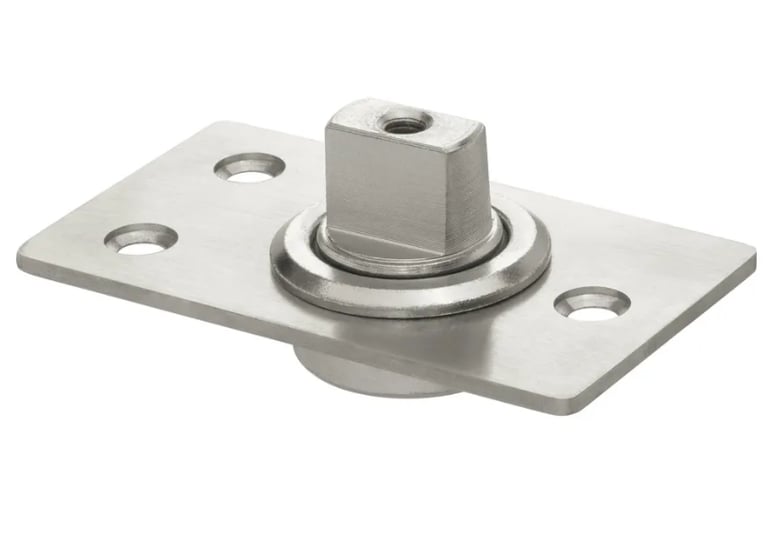

Floor Mount Pivot

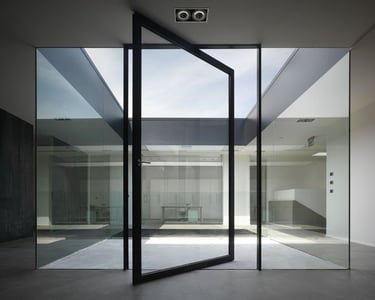

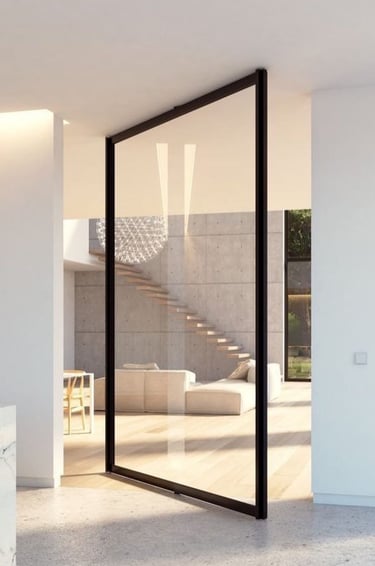

Case
