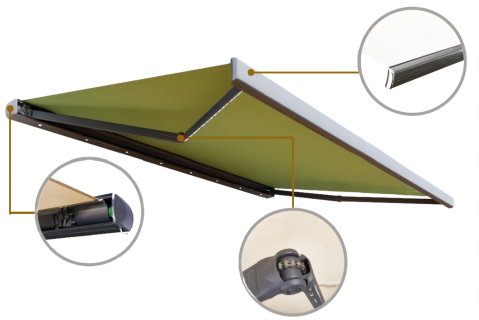

Cassette Awning System

Maximum Width X Extension 500 x 300 cm

Area to be shaded 15 qm

Cassette depth x Height 217 x 124 mm

Possible incilnation 5°-35°

Corresponds to wind force 750Pa

Specifications

Thermally broken aluminum window system with double glazing and multi-layer sealing, providing excellent thermal insulation, airtightness, water resistance, and durability for residential and commercial use.

Adjustable Shade and Weather Protection

Offers various opening methods based on spatial needs, accommodating different usage scenarios.

Convenient Operation

Durability and Energy Efficiency

Constructed with aluminum frames and UV-resistant fabrics, these awnings are built to last and help reduce indoor heat, enhancing energy efficiency.

Operate manually or with a motorized system, including remote or smart home integration for added convenience.

Types

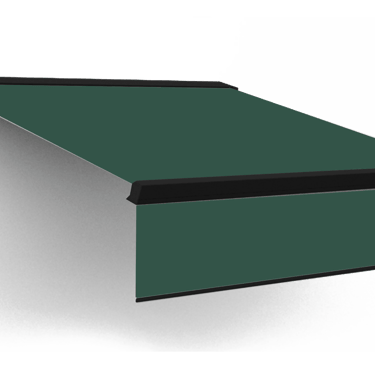

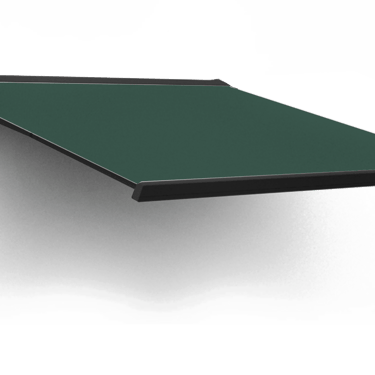

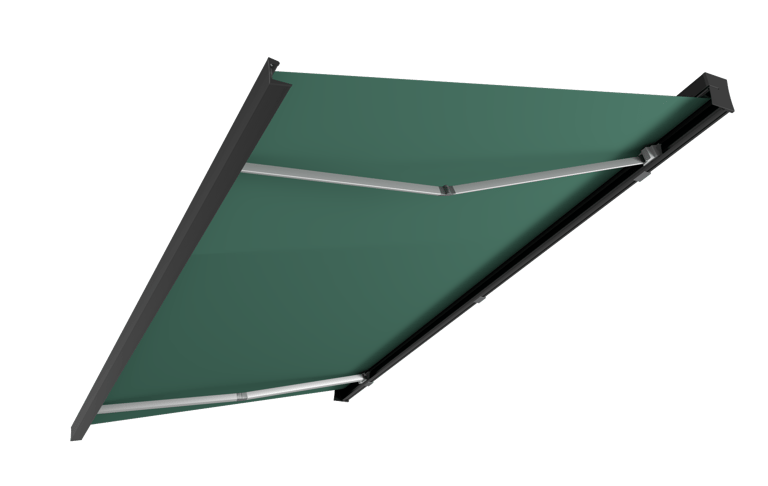

CA-01

CA-01 awning can reach a maximum extension of 7 x 4 meters. Tha arms operation and the activation of the dimmable lighting turning on can be managed through the home automation systems at your choosing. The aluminium box shelters the canvas when folded and it can be wall or ceiling mounted, with a fixed slope from 10 to 40 degrees, depending on the shading needs.

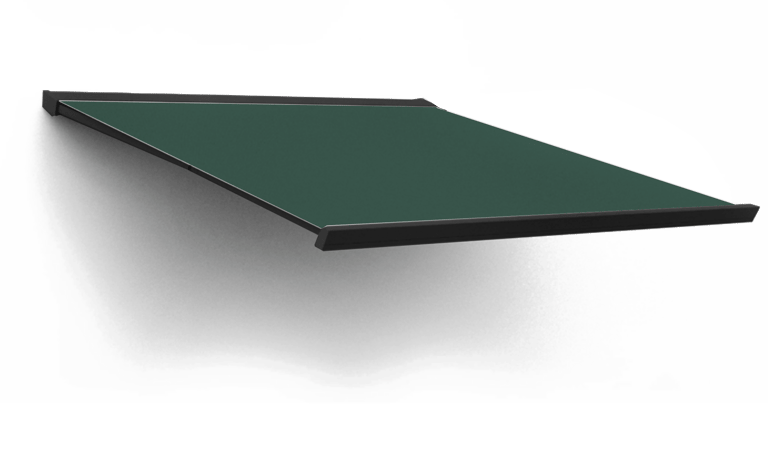

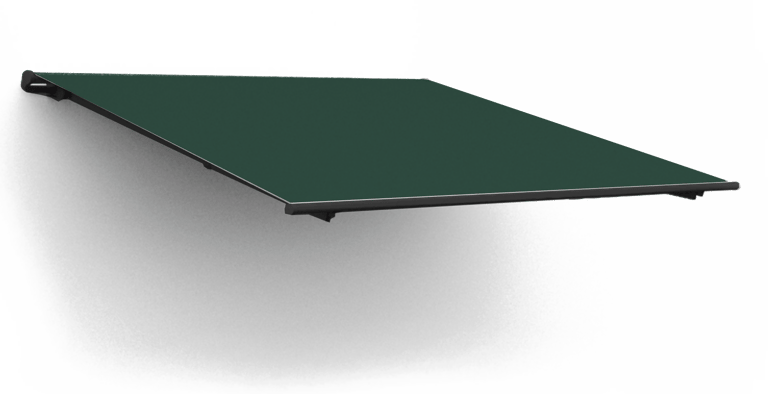

CA-02

CA-02 can be ceiling or wall-mounted with a fixed slope degree, choosable from 10 to 60 degrees. The arms operation can be managed through home automation systems and can reach the width of 5,95 x 3,5 meters. The canvas is available in a wide range of filtering, blockout and waterproof fabrics.

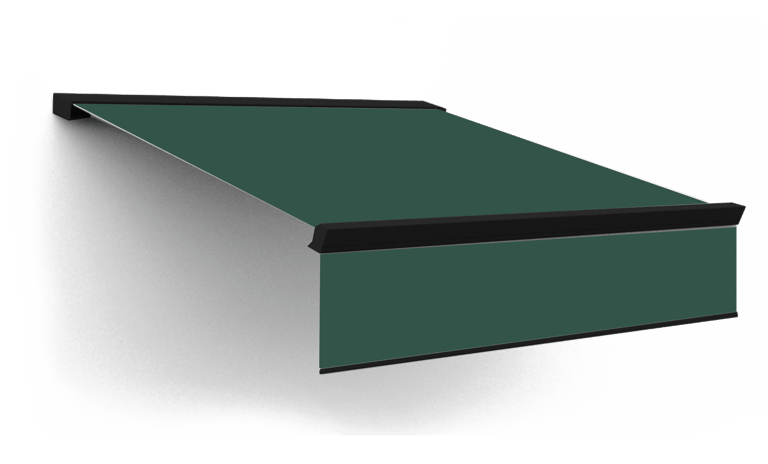

CA-03

Made of aluminium and characterised by a minimal design, CA-03 hides the electrical components inside its profiles. It can be wall or ceiling installed, with a customised slope. The adjustable arms allow for a maximum cover extension of up to 5,9 x 3,4 meters.

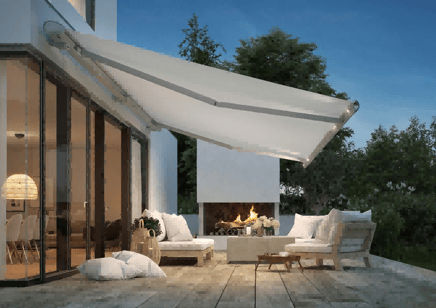

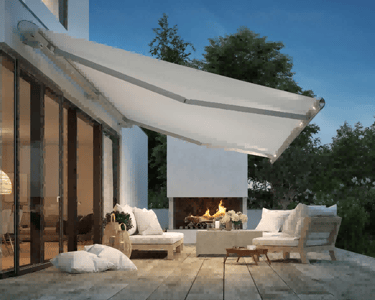

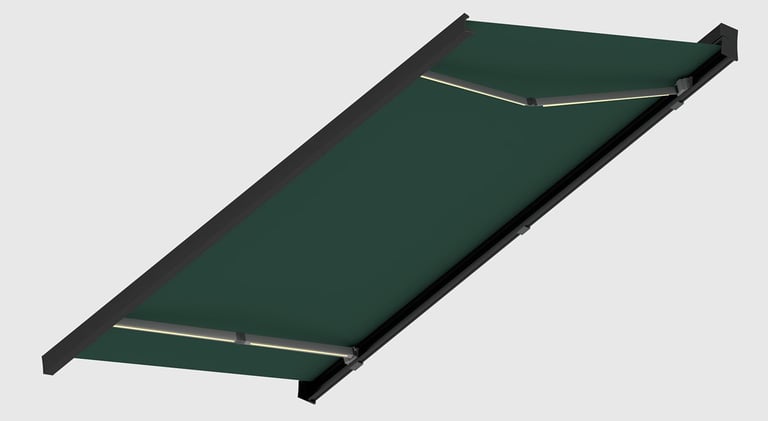

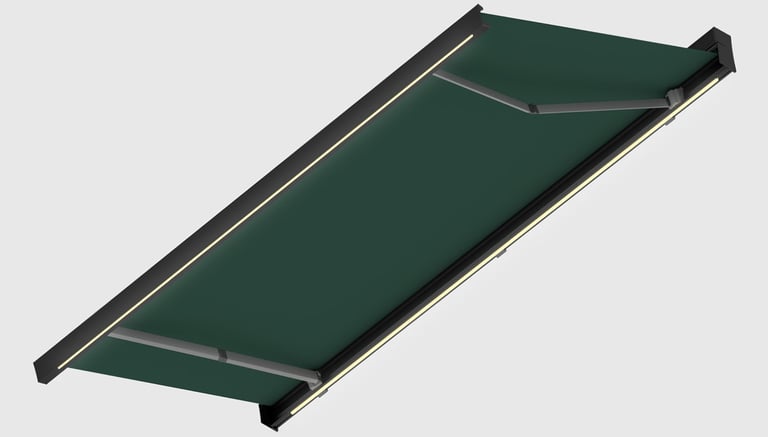

LED Line in the front profile

Gives uniform lighting and a pleasant ambience after sunset

LED lighting options

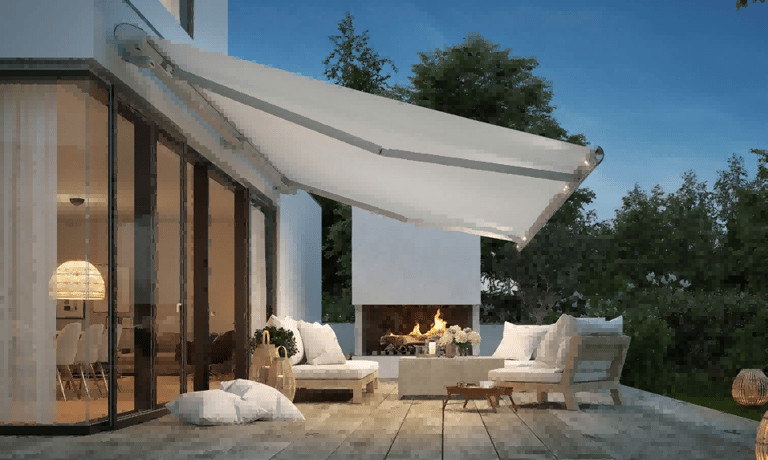

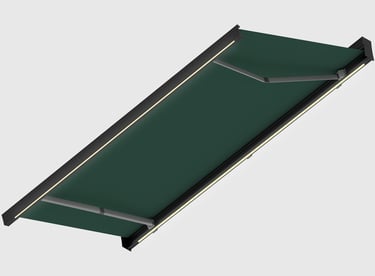

LED Spots in the front profile

This brilliant lighting effect converts the room under the awning into an oasis of well-being in the evening

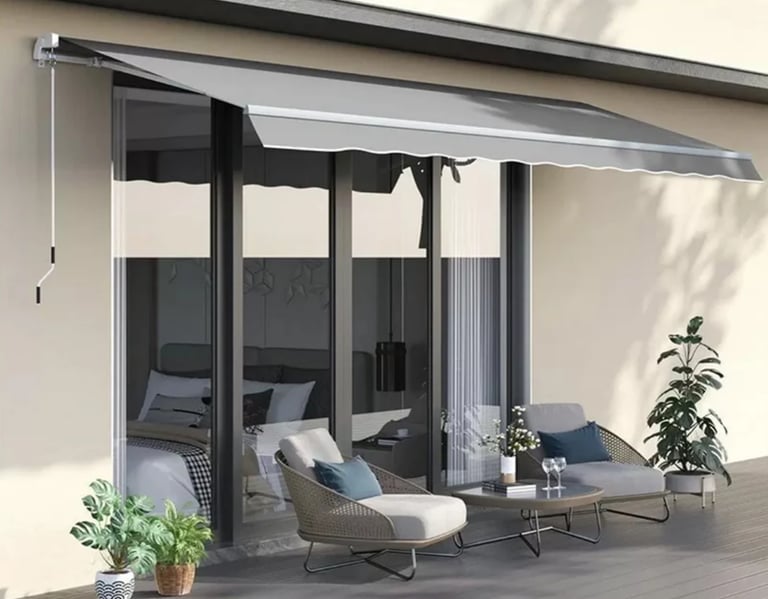

manual operation

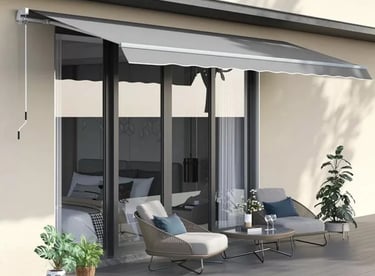

Operating an awning with a winding handle is simple. Insert the crank into the awning frame and turn it to extend or retract based on the direction. This manual operation offers reliable sun and all-weather protection.

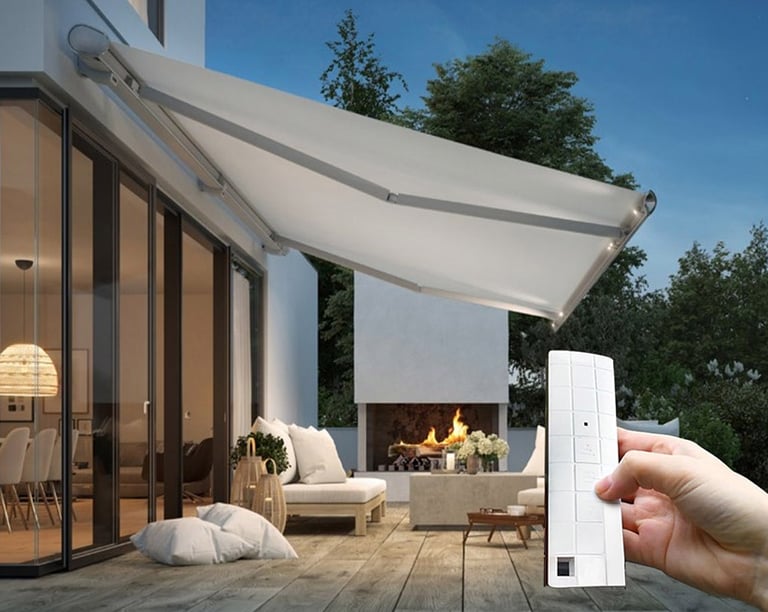

Hardwired motor

With a remote control, you can easily manage awnings, Shadeplus, light, and heat at the touch of a button. Radio-controlled awnings provide maximum convenience, allowing you to operate them from inside.

radio-controlled motor

The intelligent control system adjusts the awning based on weather conditions such as sun, rain, wind, and vibrations, automatically extending or retracting for protection.

smart home

A smart home awning system offers sun protection and convenience through app or voice control. It optimizes energy use and prevents damage by adjusting automatically to the weather.

Covers options

cover qualities

• Highest possible sun protection with UPF 50+

• Self-cleaning effect - water droplets absorb dirt particles and bead off the awning cover

• Certified according to Öko tex standard 100 - free from dyes or chemicals that are hazardous to health

• Bonded awning covers - excellent water, light and heat resistant prolongs the operating life of the fabric cover

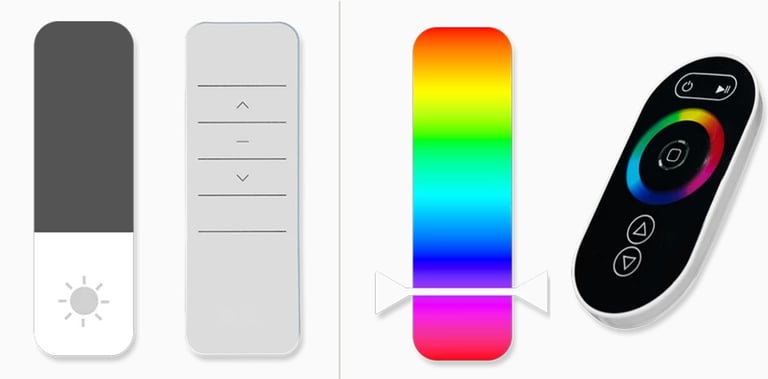

Operation options

Adjustment Features

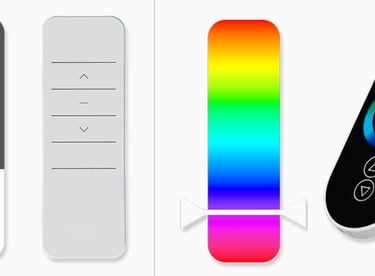

RGB color tuning and brightness control available.

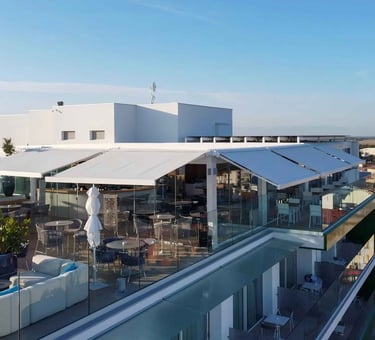

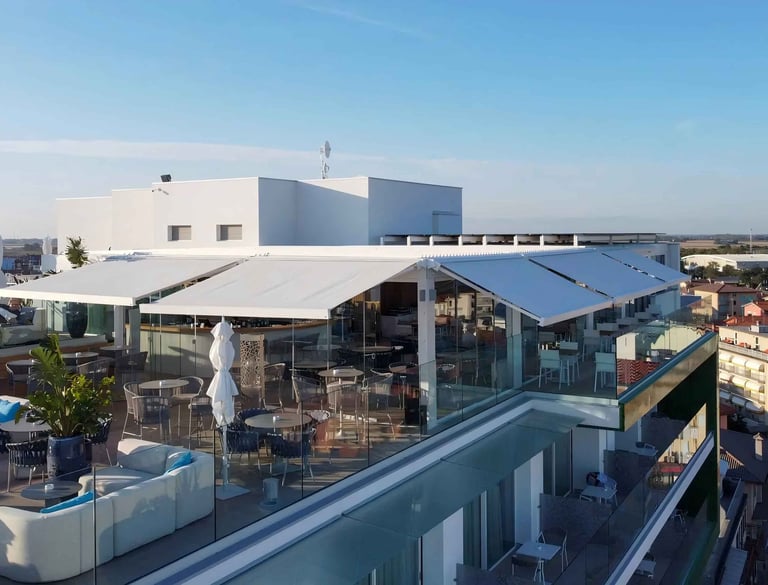

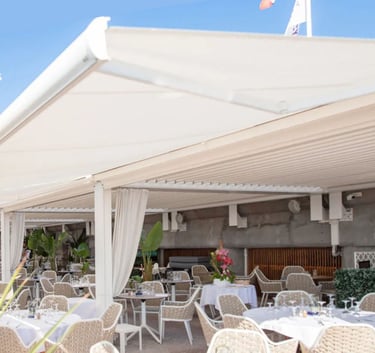

Case
