SEAMLESS FACADE SYSTEM

The Seamless Facade Series features aluminium cladding panels with advanced bending and profiling capabilities for customised shapes. Designed for facade applications, these panels offer fire resistance, weather durability, and corrosion protection. Lightweight and easy to install, they deliver both style and performance.

Dynamic Architectural Expression

The system offers versatile design options, seamlessly integrating with diverse structural and finishing systems.

Clean and Continuous Appearance

Improved Performance and Durability

Louvers regulate natural light and airflow, creating a comfortable and well-balanced indoor environment.

It can be matched with various structural layouts and surface finishes, supporting both flat and textured designs.

Types

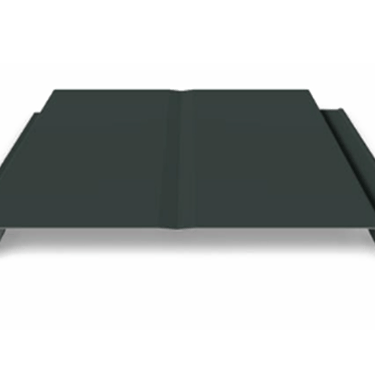

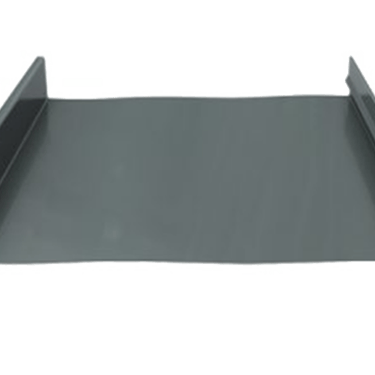

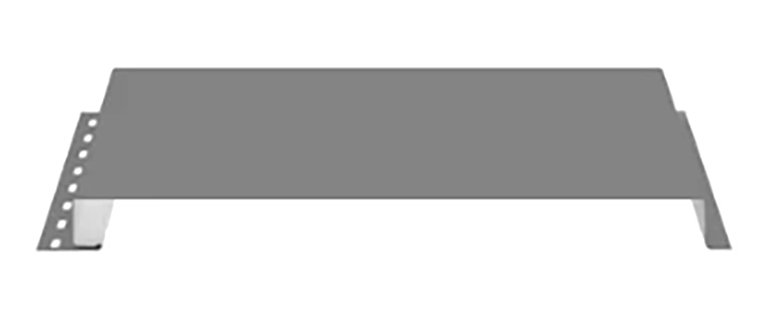

Flat Series-EW11

EW11 are recommended for siding, fascias, or soffits only. When used for wall applications, EW11 should only be installed vertically. Install panels plumb, level and straight so it is watertight and without waves or other distortions, allowing for thermal movement considerations. Apply sealant tape or caulking as necessary at flashing and panel joints to prevent water penetration

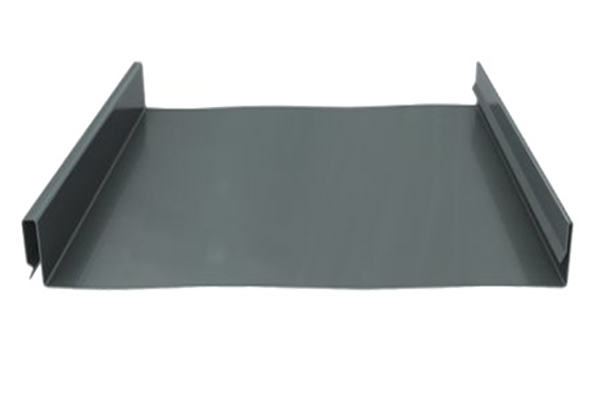

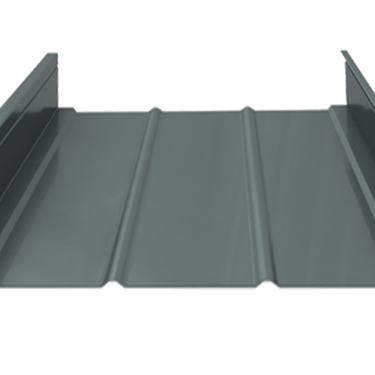

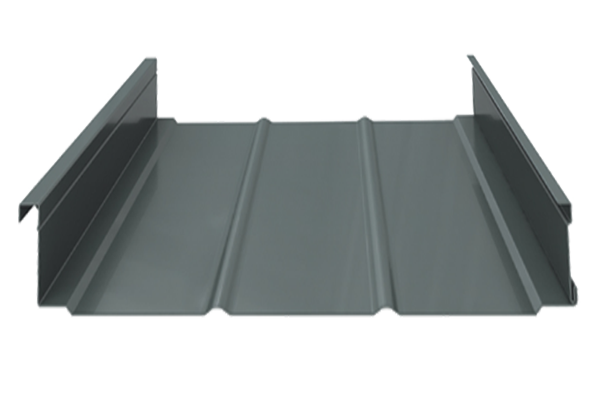

Flat Series-EW12

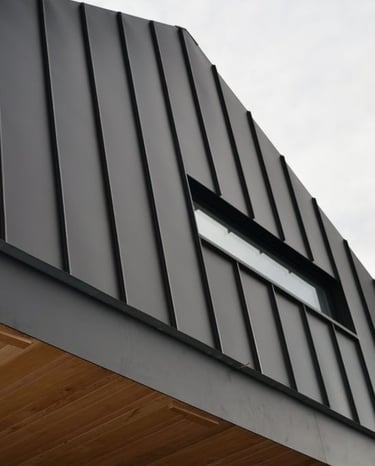

EW12 is a mechanically seamed low profile standing seam panel. This high-performance panel is ideal for roofing applications requiring tapering to ensure a perfect fit.

Flat Series-EW13

EW13 is a high-performance structural standing seam roof panel with superior strength and spanning capability. EW13 has a unique stainless steel clip system for unlimited thermal movement and reduces panel pan uplift under negative load.

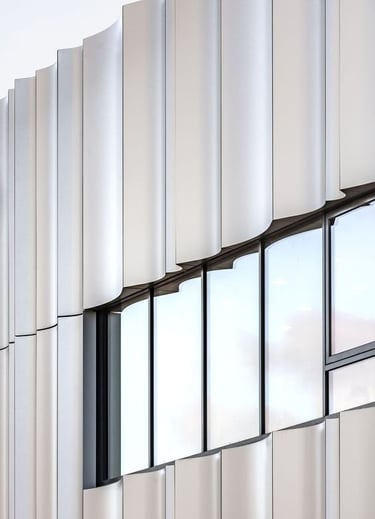

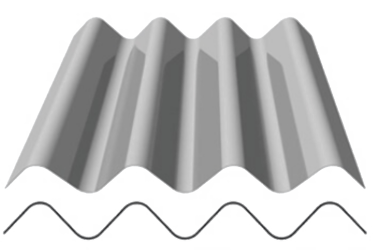

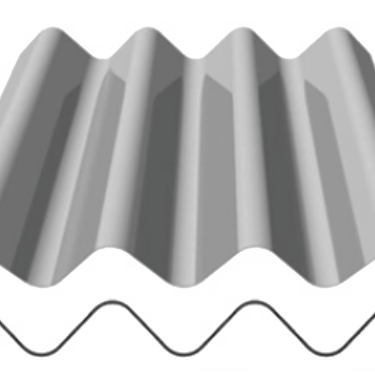

3D Series-Wave

Creates a flowing rhythm on the facade, adding softness and movement to the building.

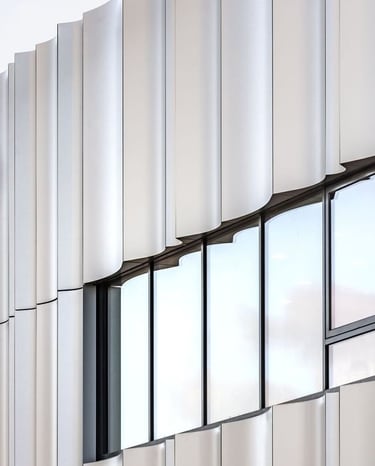

3D Series-Wave

Mimics the dynamic flow of water, delivering a modern and organic architectural texture.

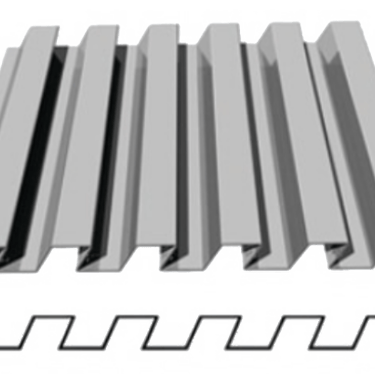

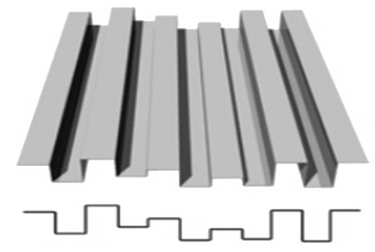

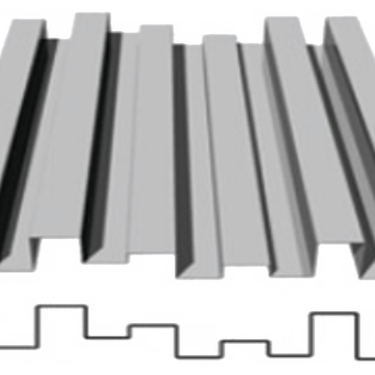

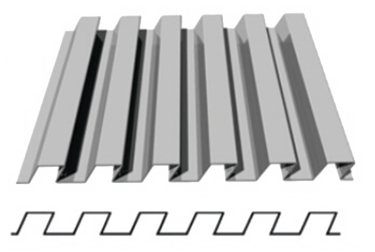

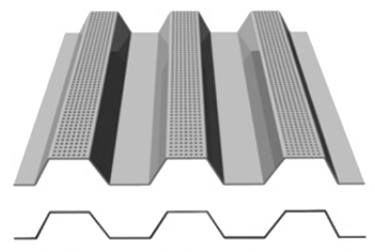

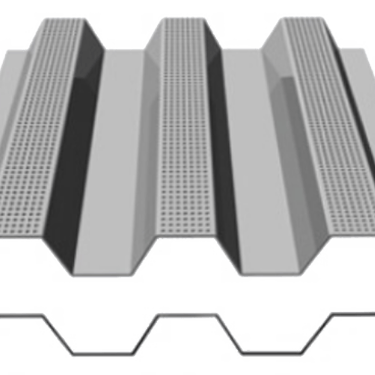

3D Series-Trapezoidal

Provides strong geometric lines, enhancing depth and structural expression of the facade.

3D Series-Diamond

Forms a faceted surface with sharp geometry, creating striking reflections and a sense of luxury.

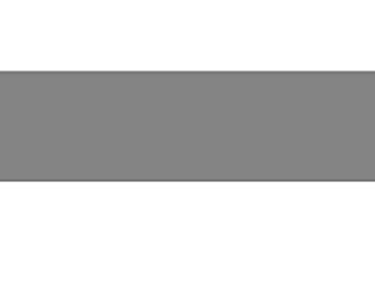

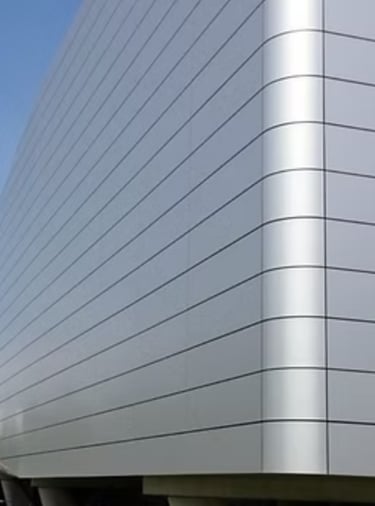

Facade Type

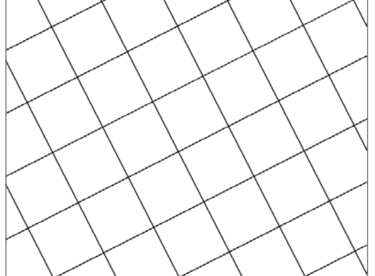

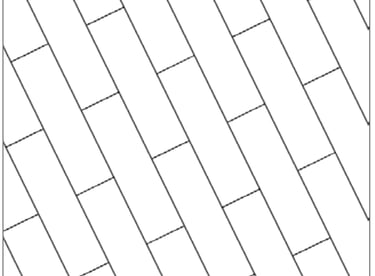

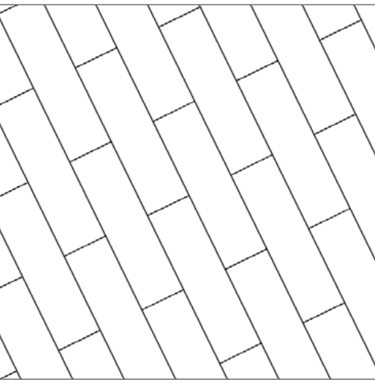

Staggered Joint

The planar texture structure of our seamless series is a standout feature of our products, utilizing unique surface treatment techniques to showcase rich visual depth. This design focuses on intricate textures and details, enhancing the aesthetic appeal and uniqueness of the building. Planar textures can include various effects, such as fine engravings and relief variations, allowing the building's surface to exhibit dynamic reflections and shadows under different lighting conditions.

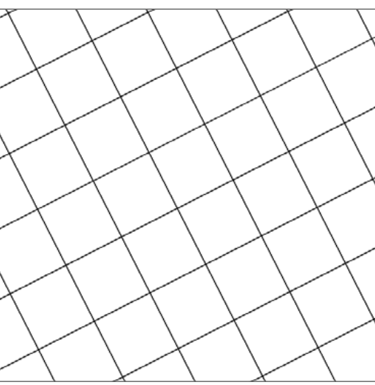

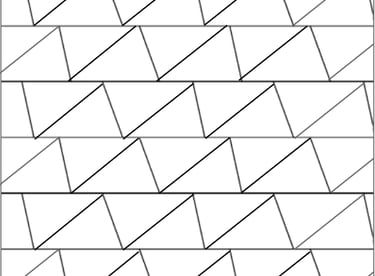

Aligned Joint

Standard: JIS, AiSi, ASTM, GB, DIN, EN.

Thickness: 0.22 mm – 2.5 mm.

Width: 1000mm, 1219mm, 1240mm, 1250mm, 1500mm

Length: Customized (Max.: 6000mm)

Tolerance: ±1%. SS Grade: 304, 316, 201, 430, etc.

Technique: Cold Rolled.

Finish: No. 2B, No. 4, No. 8, etc.

Colors: Champagne, Copper, Black, Blue, Silver, Gold,

Edge: Mill, Slit.

Applications: Interior & Exterior Wall Cladding.

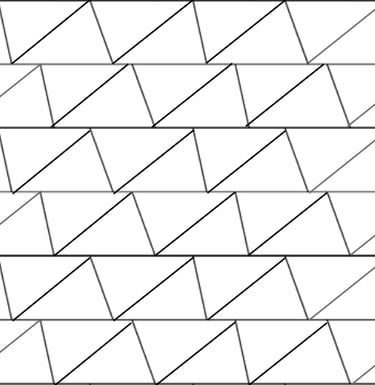

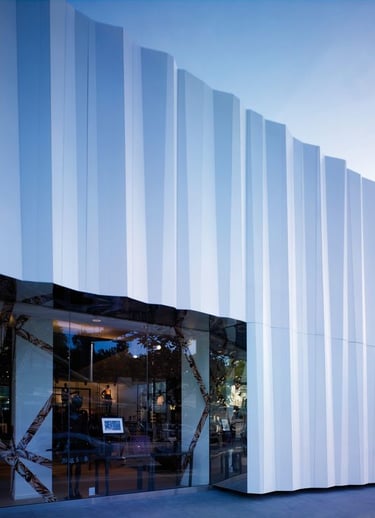

Seamless 3D structure

The angular protruding structure is the most common design, emphasizing clean lines and geometric shapes, making it a versatile choice for various architectural styles.
