Why Choose Tilt & Turn Windows for Your Home

The climate conditions in the United States are incredibly diverse, ranging from the hot and humid coastal climate of Florida to the Mediterranean climate of California and the extreme cold weather of the Midwest. Tilt and turn windows offer exceptional versatility with their dual opening modes. During rainy weather, the window sash can tilt inward, allowing continuous ventilation without letting rainwater in—helping prevent moisture buildup and mold growth. In milder or breezy seasons, the sash can fully swing inward, quickly bringing in fresh air and enhancing indoor air circulation.

Whether in modern urban apartments in New York and Chicago or single-family luxury homes in California and Texas, tilt and turn windows are becoming a preferred choice for developers and architects due to their security, energy efficiency, and sleek aesthetics. These windows are especially valuable in energy-efficient buildings and green residential projects, where their superior airtightness and thermal insulation contribute to creating more sustainable and comfortable living environments.

Tilt & turn windows advantages

Ventilation: When the window is in the tilted position, the opening at the top allows fresh air to flow into the room from above, creating a natural downward circulation. This design prevents direct drafts on occupants, enhancing comfort while ensuring a consistent supply of fresh air. Such effective airflow contributes to improved indoor air quality, making these windows an excellent choice for maintaining a pleasant living environment.

Safety: The tilt and turn mechanism also enhances security by reducing the risk of break-ins, as the windows can be locked in various positions. Additionally, the design minimizes the danger of falls from height, making it suitable for high-rise buildings or elevated locations. The ability to keep the window partially open while maintaining a secure lock position allows homeowners to benefit from fresh air without compromising safety, thus making these windows ideal for both residential and commercial applications.

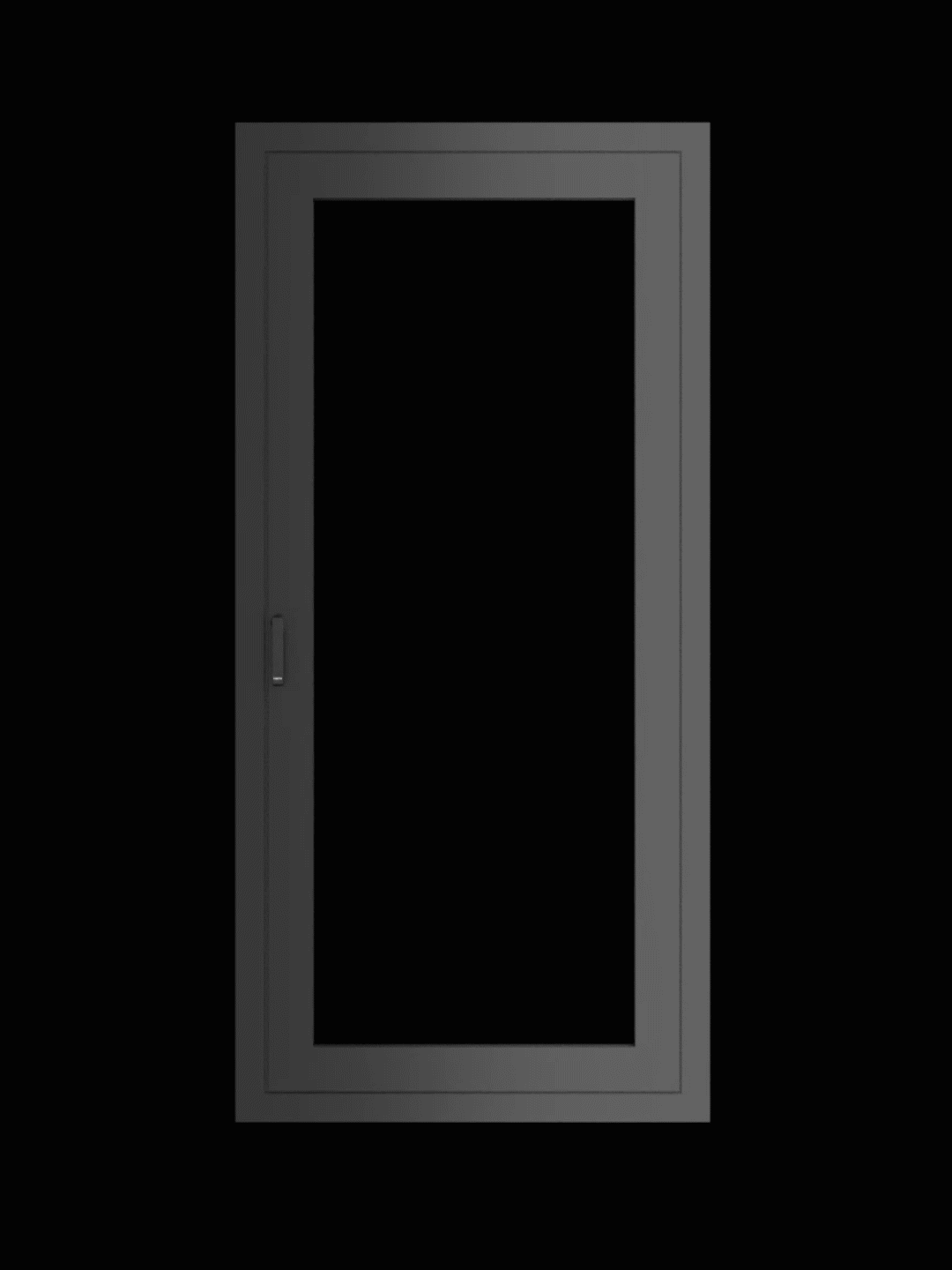

GBA Tilt & Turn Window System

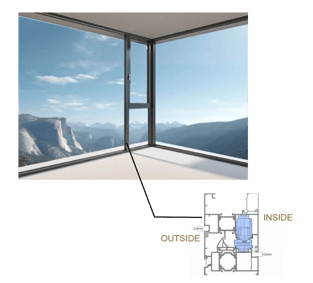

01 Aesthetic Structure

The flush design of the interior and exterior frames not only enhances the overall aesthetics but also gives the window a more modern appearance.

GBA Tilt & Turn Window System excels in several areas through meticulous attention to detail and comprehensive upgrades.

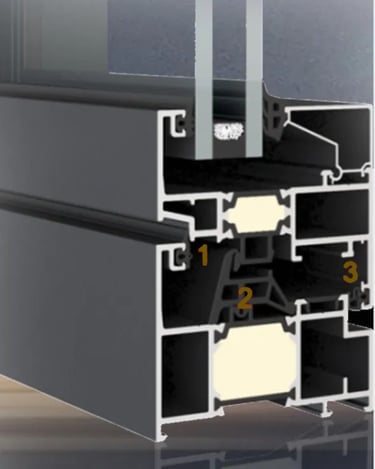

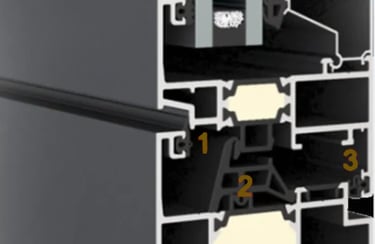

02 Sealing Structure

Featuring a three-seal design, the window incorporates polyurethane foam insulation in the thermal cavity and a robust central seal that is integrally welded. This results in water tightness rated at level 6, air tightness at level 8, and significantly improved thermal insulation. Users can rest assured that issues like wind resistance and water leakage are effectively addressed, ensuring a five-star level of comfort and quietude.

03 Drainage System

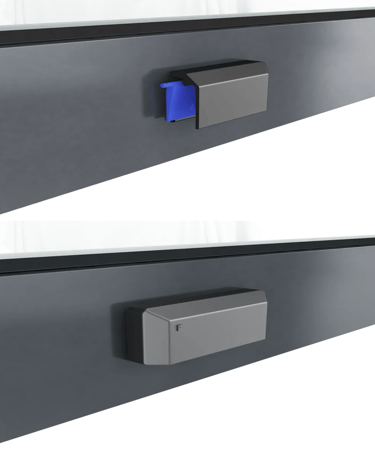

The hidden drainage hole cover design is flush with the frame, enhancing the overall aesthetic. This, combined with a windproof drainage cover and specialized waterproofing techniques, effectively resolves any water accumulation issues. Rainwater is directed out, preventing any backflow, making it resilient against severe weather conditions.

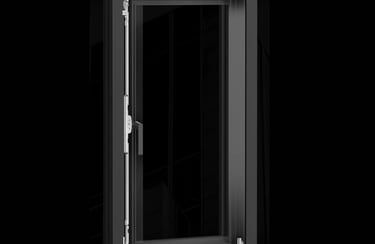

04 Hardware Configuration

Hardware is the core of functionality, and the smooth operation and lifespan of the window largely depend on the quality of the hardware system. GBA’s inward-opening and tilting hardware configuration ensures safety while enhancing the living experience, with exquisite craftsmanship and robust performance.

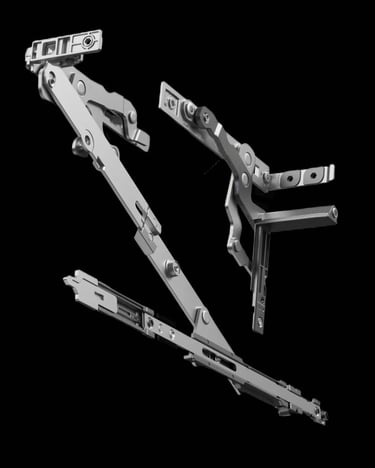

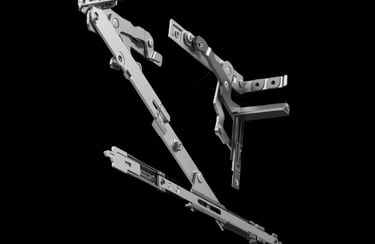

Concealed hinge configuration

The top hinge is equipped with a sealing reinforcement mechanism to enhance the sealing performance at the corners of the hinge. The load-bearing components of the upper and lower hinges are made from high-quality 304 stainless steel, with the thickness of the main load-bearing component of the lower hinge reaching up to 4mm, ensuring stable strength and reliable safety.

Hinge Opening Angle

0°~175°

Hinge Load Capacity

< 130kg

Inward Tilt Distance

140 mm

Repeated Opening and Closing Test

≥ 25,000

Frame Size Range

Width 490mm to 750mm

Height 600mm to 2000mm

Anti-Theft and Burglary Protection

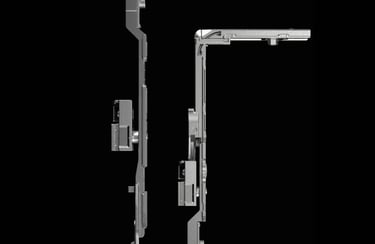

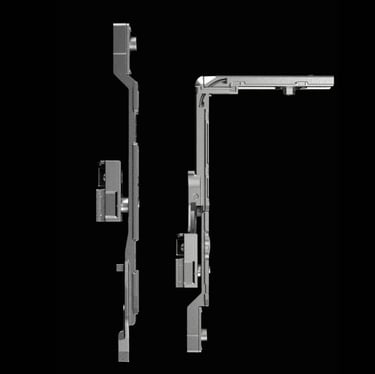

The tilt support mechanism, equipped with an anti-misrotation corner piece and roller anti-burglary locking points combined with a reinforced anti-burglary lock base, effectively enhances security against theft and break-ins.

05 External Configuration

Configuration 1

Laminated Glass Railing Designed with a height of 1.2 meters for stability and safety.

Configuration 2

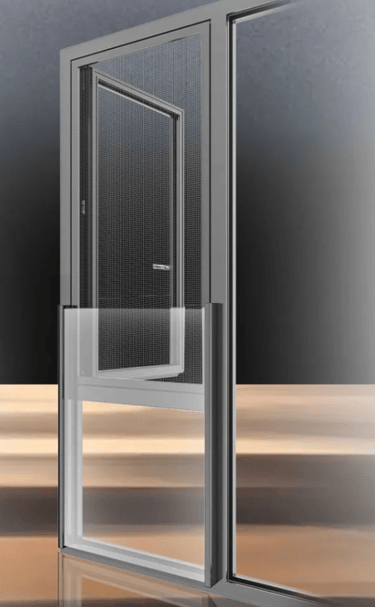

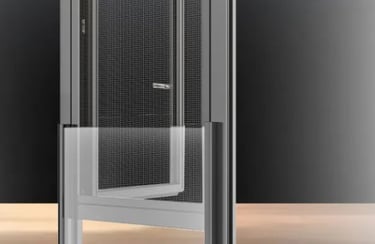

Integrated Screen Window Features dual inward opening design for safety against falls, mosquito protection, and high ventilation.
